Alusistemi end clamp for photovoltaic 40 mm aluminum ATL004.8040
ALS ATL004.8040

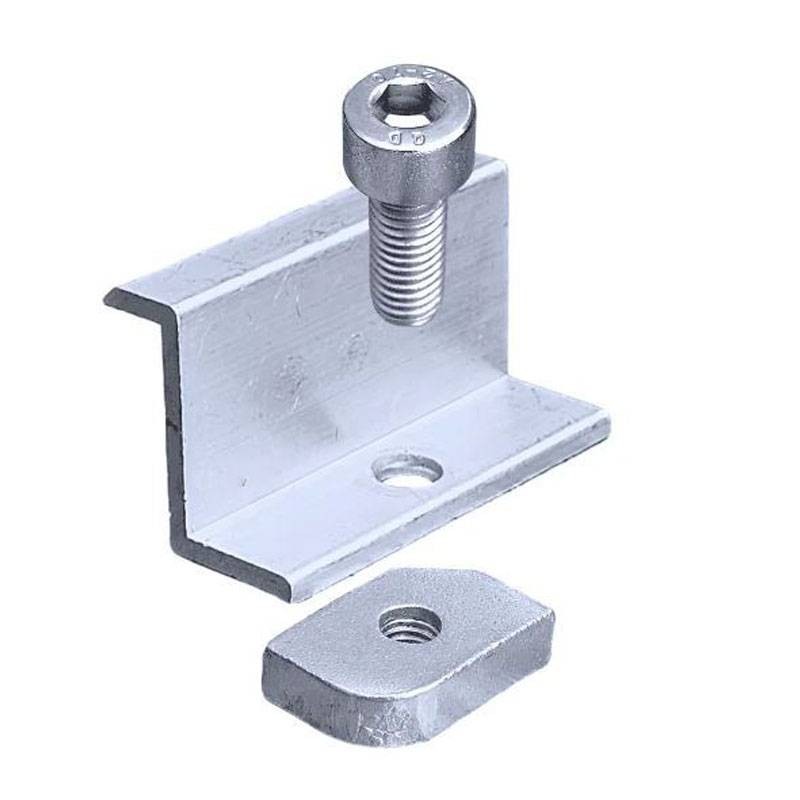

Alusistemi end clamp with stainless steel screw and integrated eccentric block. Made of extruded aluminum, it provides secure and durable attachment to the panel support structure, with the following features:
-
Compatible: 40 mm panels
-
Clamp: Rough extruded aluminum AL6060-T5
-
Screw: TCEI M8x30 stainless steel A2 included
-
Block: Integrated eccentric for keyway
-
Hole diameter: 8.5 mm
-
Length: 80 mm
€2.21
Items Available: 20
: 18
Alusistemi professional end clamp for clamping photovoltaic modules
The Alusistemi end clamp is designed to ensure a firm and precise attachment of the module to the support structure. Ideal for rooftop or ground-mounted installations, it enables quick and secure installation thanks to the eccentric block that facilitates alignment within the slot.
Strength and reliability for all conditions
Thanks to high-quality materials such as raw aluminum and A2 stainless steel screw, the clamp offers corrosion resistance and long life, even in outdoor conditions or aggressive weathering.
Compatibility with hollow structures
The eccentric block is designed for quick positioning within the structural profile's keyway. Partial threading avoids blockages and ensures an optimal fit. This system is ideal for most common structural profiles for PV systems.
Installation recommendations
-
Recommended tightening torque: 16 Nm
-
Always check compatibility with the photovoltaic module used
-
Check the load-bearing capacity and structural compliance of the mounting system

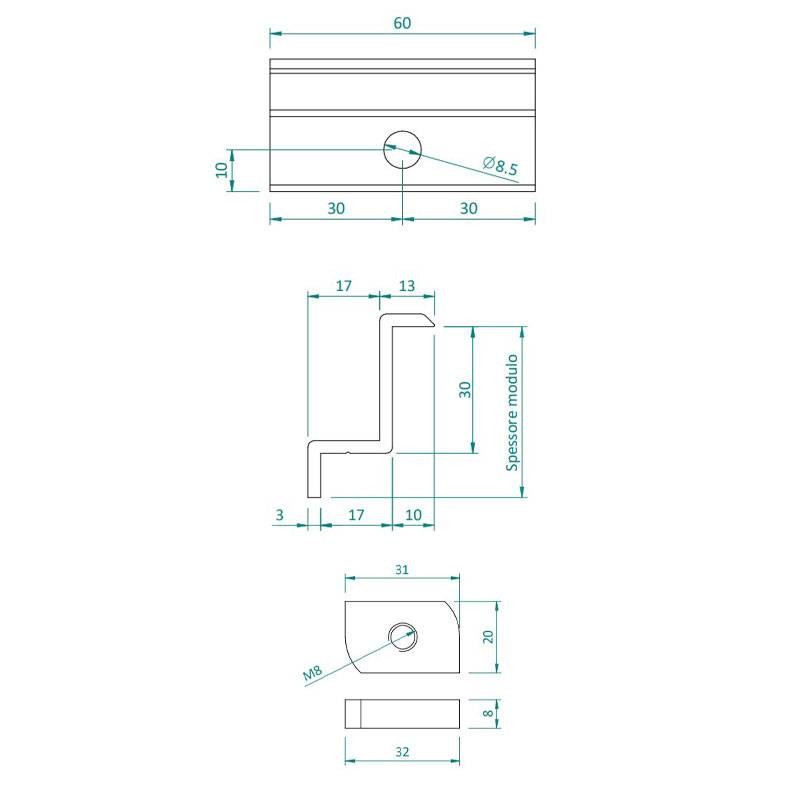

Technical characteristics Alusistemi end clamp
| Parameter | Value |
|---|---|
| Supported module thickness | 40 mm |
| Clamp material | Aluminum blank AL6060-T5 |
| Screw included | TCEI M8x30 stainless steel A2 |
| Eccentric block | Aluminum extruded blank AL6060-T5 |
| Overall length | 80 mm |
| Hole diameter | 8.5 mm dia. |
There are no reviews
Data sheet
- Type: Clamps
