Alusistemi Central Clamp for photovoltaic panels 40-44mm ATL006.80.4044
ALS ATL006.80.4044

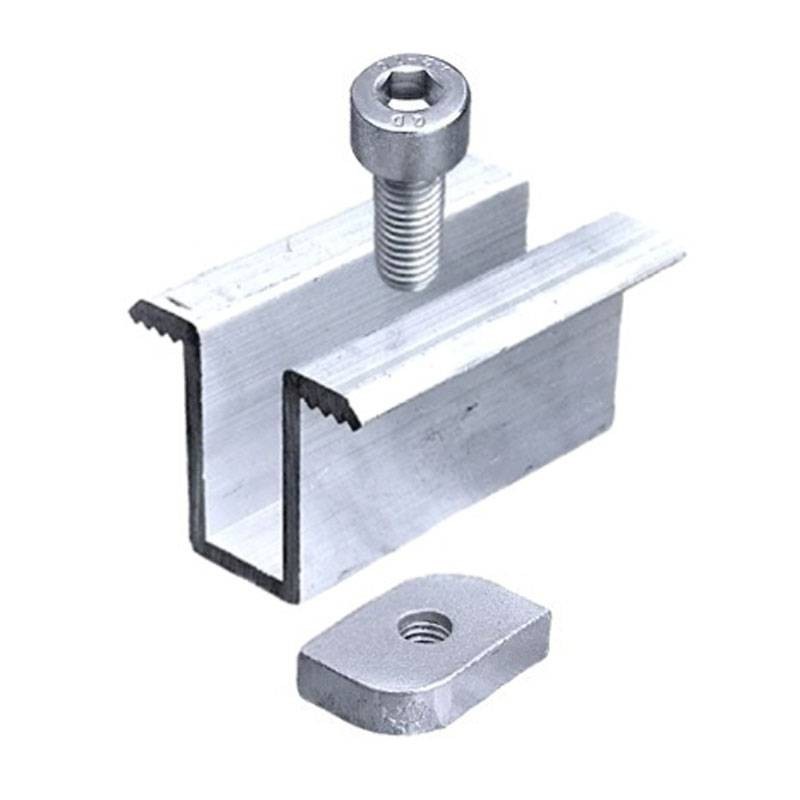

Alusistemi center clamp with M8 screw and eccentric block, ideal for secure mounting of photovoltaic panels. Compatible with Alusistemi slot profiles and structural systems, with the following features:
-
Panel compatibility: 40 to 44 mm thickness
-
Screw thread: M8
-
Locking system: Eccentric anti-skid block
-
Material: Aluminum with stainless steel components
-
Quick assembly: Easy insertion into the groove thanks to the block without last threaded turn
-
Recommended tightening torque: 16 Nm
€1.98
Items Available: 50
: 45
Alusistemi center clamp secure and reliable fixing
The Alusistemi center clamp is designed to securely clamp PV panels in the center of the module, maintaining an even spacing and ensuring the mechanical strength of the structure. The eccentric block facilitates positioning in the profile groove, simplifying installation.
Designed for professional solar installations
Due to its compatibility with standard panel thicknesses and the strength of the materials used, the clamp is perfect for photovoltaic installations on industrial, commercial and residential roofs. Verification of module compatibility and load-bearing capacity of the structure is always recommended.
Applications
-
Photovoltaic systems on pitched or flat roofs
-
Systems with hollow profiles
-
Installations with standard module spacing of 40-44 mm
-
Central mounting systems for Alusistemi structures

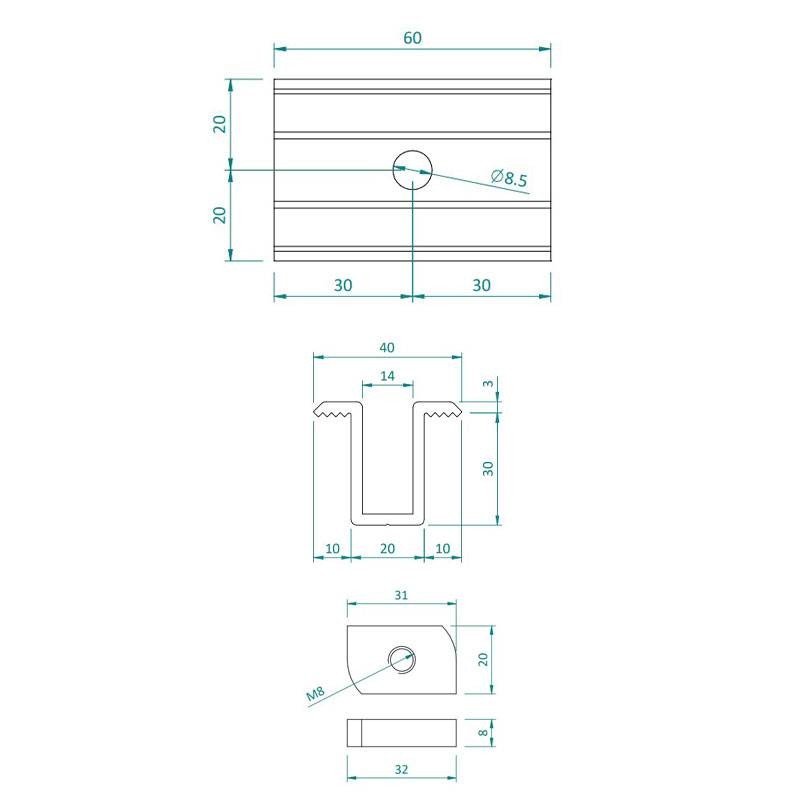

Technical Specifications Alusistemi Central Clamp
| Parameter | Value |
|---|---|
| Compatible panel thickness | 40 to 44 mm |
| Screw thread | M8 |
| Fixing type | Screw + eccentric block |
| Material | Aluminum + stainless steel |
| Recommended tightening torque | 16 Nm |
| Facilitated positioning | Yes, block with interrupted thread |
| Compatibility | Alusistemi groove profiles |
| Recommended use | Central fastening of photovoltaic modules |
There are no reviews
Data sheet
- Type: Clamps
