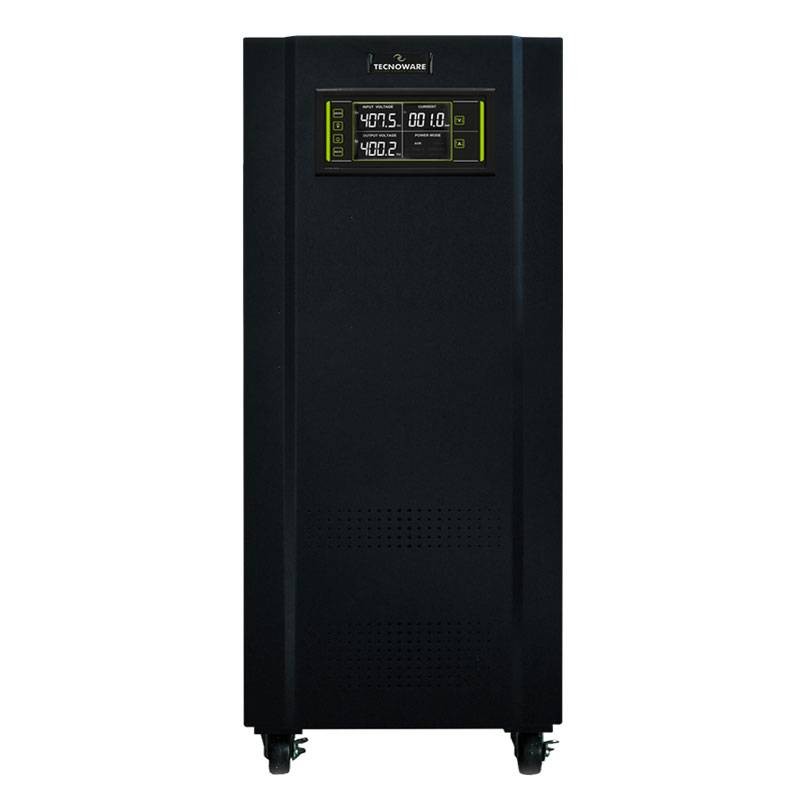

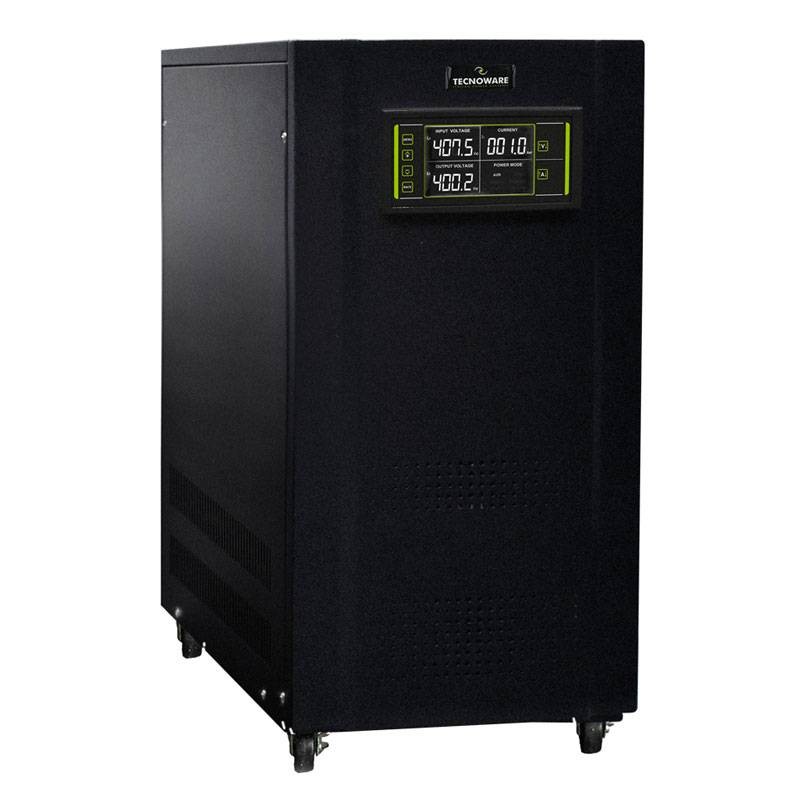

Tecnoware Three-phase electronic voltage regulator 15KVA 12 KW Servo-assisted FSTESM15KT
TCW FSTESM15KT
8026475183347
Tecnoware electronic voltage regulator servo-assisted with electronic microprocessor control, with the following features:
-
Nominal power: 15 KVA (12 KW active)
-
Selectable input/output voltage: 380-400-415V AC
-
Technology: Servo-assisted with microprocessor
-
Regulation speed: 12 ms/Volt
-
Maximum altitude: 3000 m
-
Protection rating: IP20
-
Dimensions: 340x770x400 mm (WxHxD)
€2,336.54
Out of stock
Incoming
Maximum voltage stability for critical applications
The 15KVA servo-assisted three-phase voltage regulator is the ideal solution to ensure a stable and high-quality output voltage, even in the presence of significant fluctuations in the electrical grid. Thanks to microprocessor electronic control, it offers rapid regulation (12 ms/Volt) and extremely precise stabilization tolerance of ±1%, safeguarding systems and equipment from voltage surges.
Servo-assisted technology with electronic control
The presence of a microprocessor-controlled servo motor allows for continuous and precise corrections, regardless of load and power factor. The system does not introduce harmonic distortions and maintains a perfect sinusoidal waveform, protecting even the most sensitive loads.
Robust and compact construction
With compact dimensions, this stabilizer is designed for industrial applications where space and efficiency are crucial. The IP20 protection rating makes it suitable for indoor environments, while the robust structure ensures reliability even in demanding operating conditions.
Recommended applications
-
Industrial and manufacturing plants
-
Data processing centers (Data Centers)
-
Laboratories and control rooms
-
Technical offices and medical equipment
-
Automation and electrical panels with sensitive loads
Technical Features of Tecnoware Three-phase Voltage regulator
| Nominal power | 15 kVA / 12 kW (power factor 0.8) |
| Selectable three-phase voltage | 380 / 400 / 415 V – 50/60 Hz |
| Input tolerance | 260 – 470 V AC |
| Output voltage | 380 / 400 / 415 V selectable |
| Output precision | ±1% |
| Technology | Servo-assisted with microprocessor control |
| Waveform | Pure sinusoidal – no harmonic distortion |
| Regulation speed | 12 ms/Volt |
| Efficiency | >97% |
| Protection | Overload and phase imbalance (1%) |
| Overload capacity | 100–125% for 30 s / >125% for 100 ms |
| Operating temperature | 0 ÷ 55°C |
| Operating humidity | <95% (non-condensing) |
| Maximum altitude | 3000 m |
| Protection rating | IP20 |
| Certifications | CE |
| Dimensions (W × H × D) | 340×770×400 mm |
There are no reviews
Data sheet
- Type: Voltage Regulators
- Rated Power: 1500VA
- Active Power: 1200W
