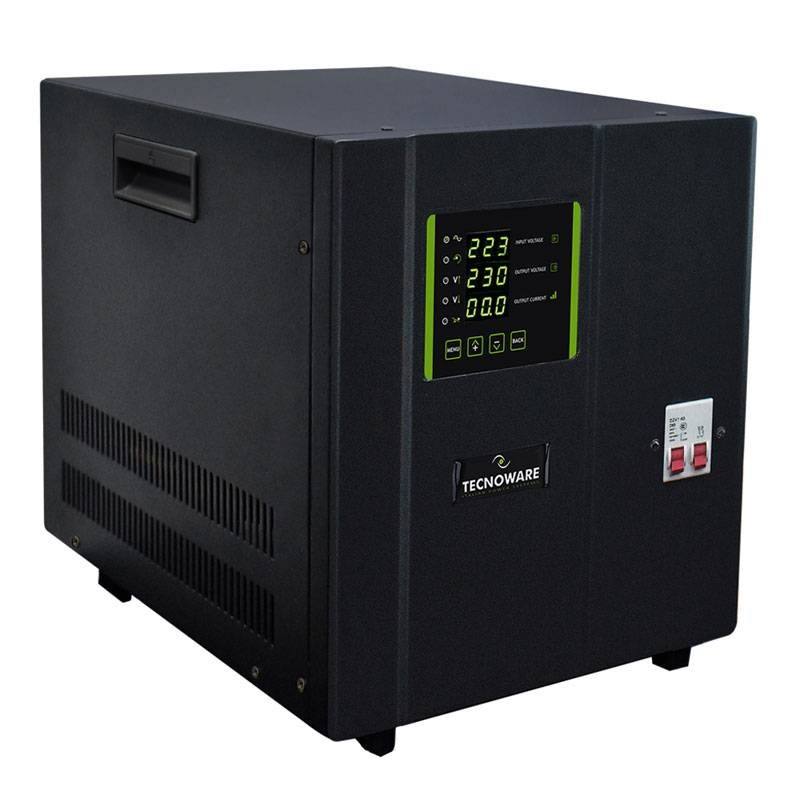

Tecnoware Electronic Voltage regulator 7.5KVA Single Phase FSTESM7K5M
TCW FSTESM7K5M
8026475176943
Tecnoware 7.5KVA electronically controlled servo Voltage regulator with microprocessor:
- 7.5KVA power
- Single-phase 230V/50 Hz
- Output stabilization ±1%
- Sinusoidal waveform
- Does not introduce harmonic distortion on the grid
- With high stabilization accuracy (±1% output) sine waveform
- Insensitivity to load and power factor
- Does not introduce harmonic distortion
- Weight 24 kg
- Dimensions 30x34x40 cm
€779.24
Items Available: 4
: 2
Strengths:
- Household utilities, Lighting systems, Industrial processes, Telecommunications, Electromedical
- High stabilization speed
- High efficiency
- Stabilization without micro interruptions
- Does not introduce harmonic distortion
- Variation management from 0 to 100% load

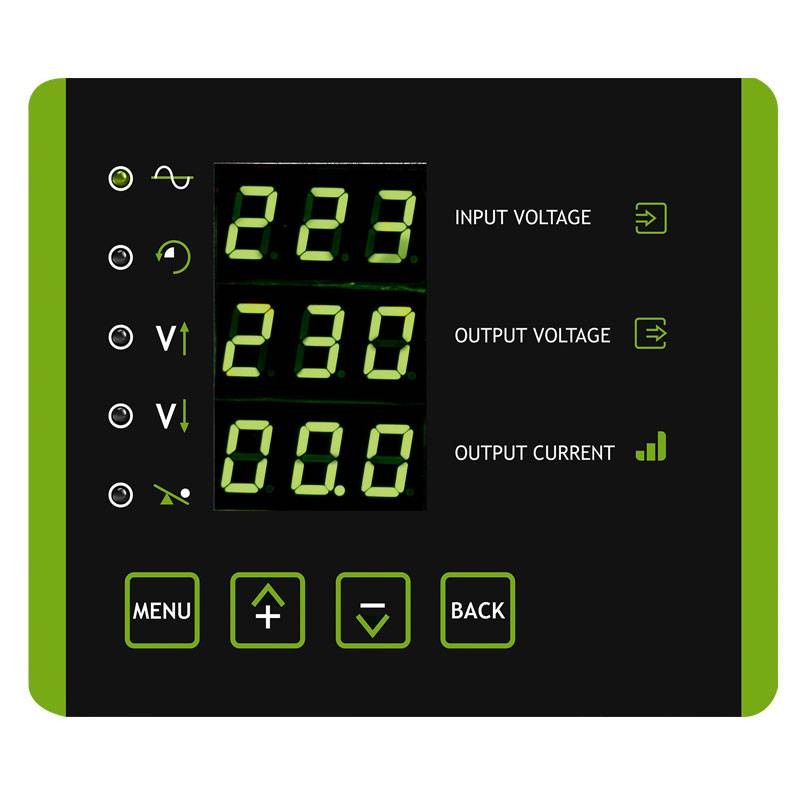

- Multifunction display with display and setting of operating parameters
- Multifunction display
- Mains input switch
- Bypass switch
- Input/output terminal block
Features:
- Rated power 7.5 KVA
- Active power 6 KW
- Power factor 0.8
- Servo assisted electronically controlled technology with microprocessor
- Dimensions WxHxD 30x34x40 cm
- Dimensions with packing WxHxD 36x50x50 cm
- Weight 24 kg
Input:
- Number of phases 1F+N
- Rated voltage 220/230/240Vac (selectable)
- Input voltage tolerance 160Vac-270Vac
- Rated frequency 50/60 Hz
Output:
- Number of phases 1F+N
- Rated voltage 220/230/240Vac (selectable)
- Voltage stability ±1%
- Regulation speed 12 m Sec/Volt
- Efficiency >97%
- Load variation 0% to 100%
- Overload 1.5
- Rated frequency 50/60 Hz
Environmental operating conditions:
- Working temperature 0 to 55 °C
- Relative humidity < 95% non-condensing
- Maximum altitude 3000 m
- Degree of protection IP20
- CE Certifications.
Data sheet
- Type: Voltage Regulators
- Rated Power: 750VA
- Active Power: 600W
