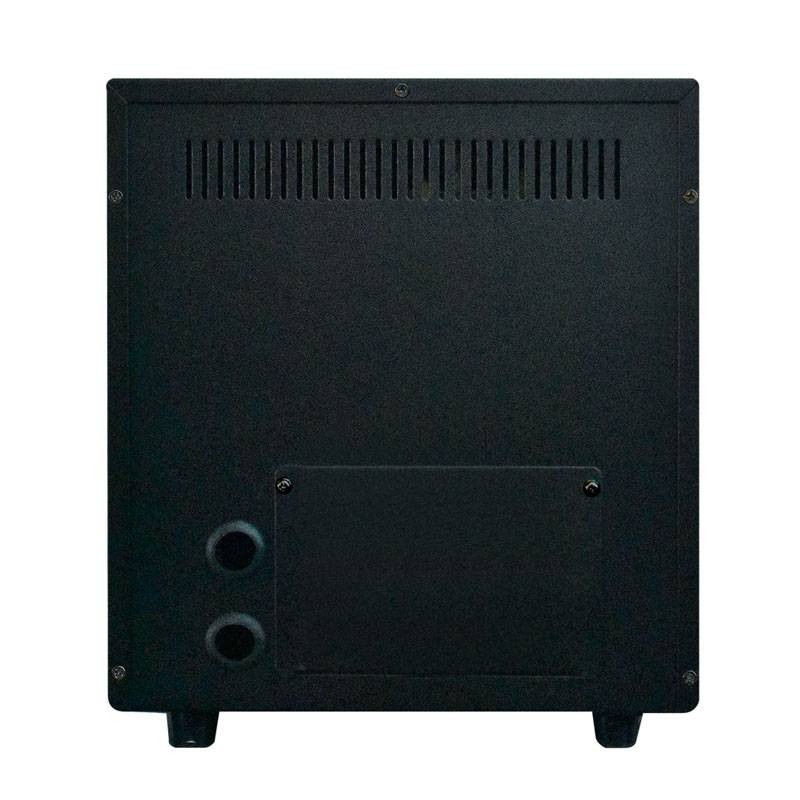

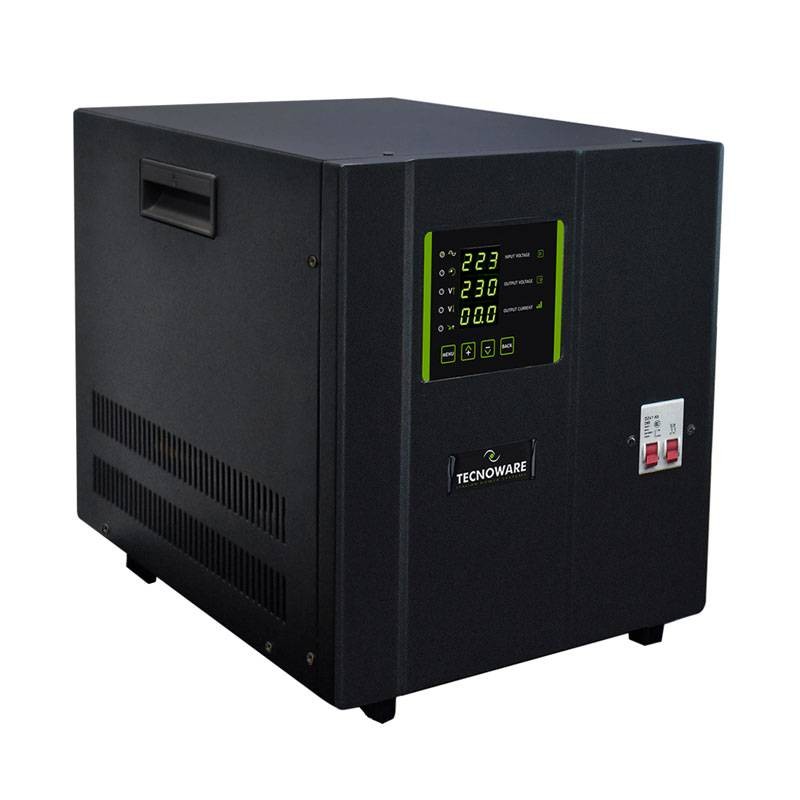

Tecnoware Single Phase Bi-directional Regulator 230V 10KVA FSTESM10KMBD
TCW FSTESM10KMBD
8026475179890
Tecnoware bidirectional single-phase regulator designed to ensure stability and safety in energy management. Ideal for photovoltaic systems and households. With a stabilization accuracy of ±3%, it ensures constant voltage without harmonic distortion, with the following features:
-
Rated power: 10KVA (8KW active)
-
Rated voltage: 220/230/240V (selectable)
-
Input voltage range: 160-270V
-
Bidirectional stabilization: Ideal for photovoltaic systems
-
Voltage stability: ±3%
-
Overload: audible alarm for loads above 125%
-

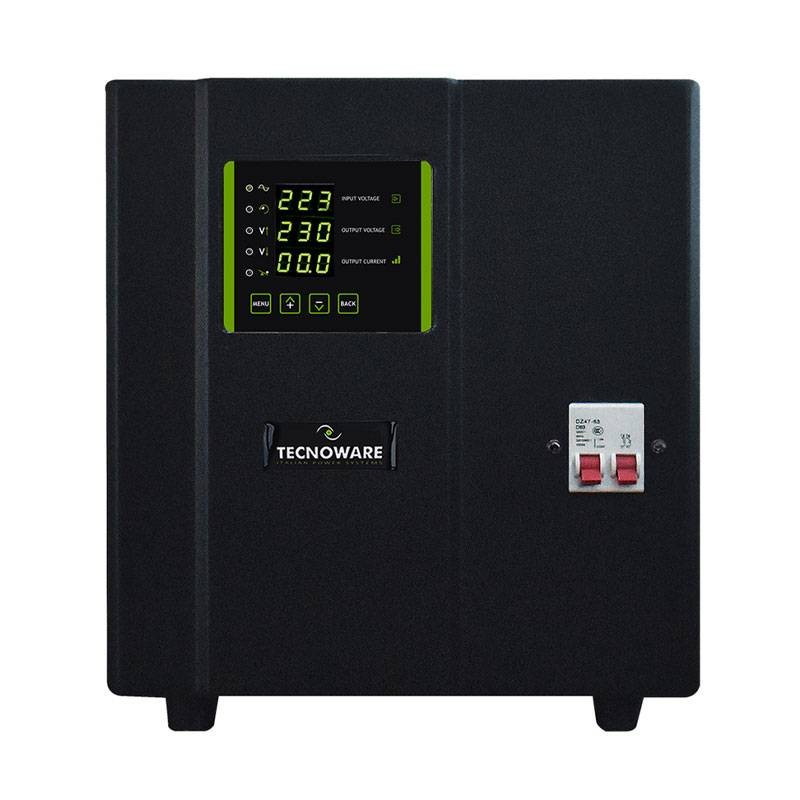

Multifunction display: For monitoring and setting parameters
-
Degree of protection: IP20
-
Dimensions: 300x340x400 mm
€1,545.98
Items Available: 1
Tecnoware regulator: photovoltaic, high performance, protection
Intelligent regulator for photovoltaic systems
Using bidirectional technology, the regulator regulates voltage on both the grid input and output sides, optimizing energy management and protecting systems from voltage fluctuations.
High performance and operational safety
With an efficiency of more than 97 percent, it ensures stable operation without interruptions or harmonic distortion, making it ideal for domestic, industrial and lighting systems.
Compact design and advanced protection
With an IP20 degree of protection, it is designed to operate in environments with temperatures up to +55 degrees and altitudes up to 3,000 meters, ensuring maximum reliability over time.
Technical Specifications Two-way regulator
Technical Data
| Feature | Value |
|---|---|
| Power rating | 10KVA |
| Active power | 8KW |
| Power factor | 0,8 |
| Dimensions (WxHxD) | 300x340x400 mm |
Input
| Number of phases | 1F + N |
| Rated voltage | 220/230/240Vac (selectable) |
| Input voltage range | 160 V AC - 270 V AC |
| Rated frequency | 50/60 Hz |
Output
| Number of phases | 1F + N |
| Rated voltage | 220/230/240Vac (selectable) |
| Voltage stability | ± 3% |
| Voltage regulation | 12 mSec/Volt |
| Performance | >97% |
| Load variation | 0% to 100% |
| Overload | (100÷125)% for 30 sec with audible alarm; >125% for 100 ms |
| Rated frequency | 50/60 Hz |
Environmental Specifications
| Working temperature | 0/+55 degrees |
| Humidity | < 95% non-condensing |
| Maximum altitude | 3000 meters |
| Degree of protection | IP20 |
There are no reviews
Data sheet
- Type: Voltage Regulators
- Rated Power: 1000VA
- Active Power: 800W
