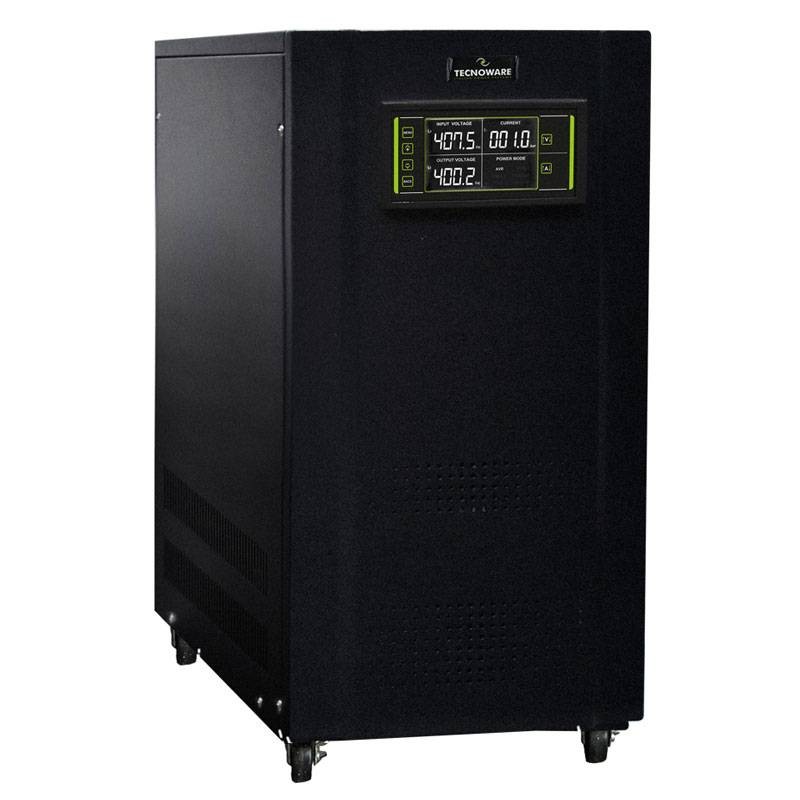

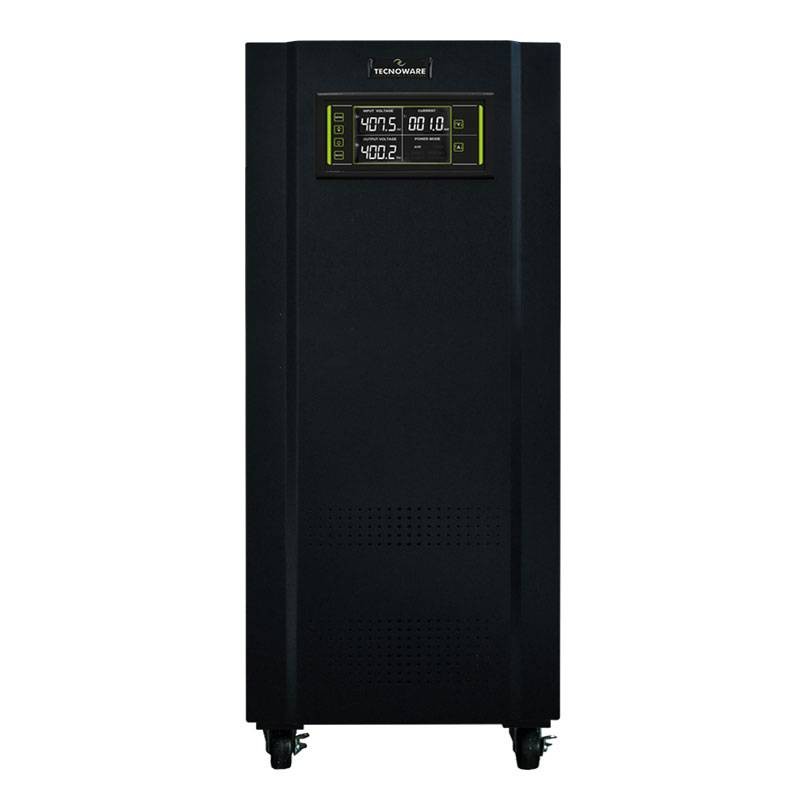

Tecnoware Electronic Voltage regulator 9KVA Three Phase FSTESM9KT
TCW FSTESM9KT
8026475176974
Tecnoware 9.0KVA electronically controlled servo Voltage regulator with microprocessor:
- 9.0KVA power
- Three-phase 400V/50 Hz
- Output stabilization ±1%
- Sinusoidal waveform
- Does not introduce harmonic distortion on the grid
- With high stabilization accuracy (±1% output) sine waveform
- Insensitivity to load and power factor
- Does not introduce harmonic distortion
- Weight 80 kg
- Dimensions 34x77x40 cm
€1,966.05
Out of stock
Incoming
Strengths:
- Household utilities, Lighting systems, Industrial processes, Telecommunications, Electromedical
- High stabilization speed
- High efficiency
- Stabilization without micro interruptions
- Does not introduce harmonic distortion
- Variation management from 0 to 100% load

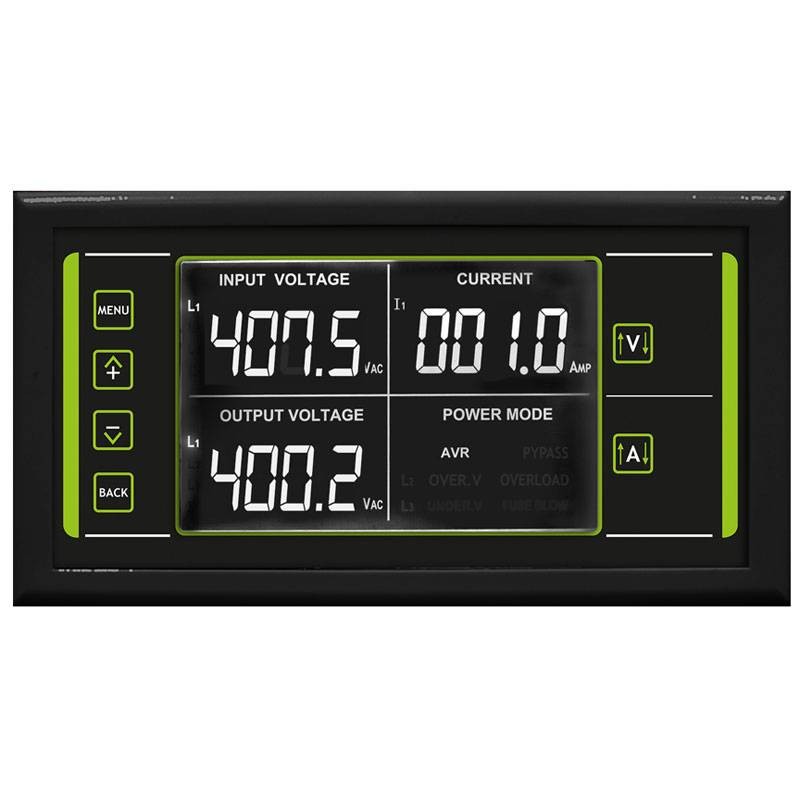

- Multifunction display with display and setting of operating parameters
- Multifunction display

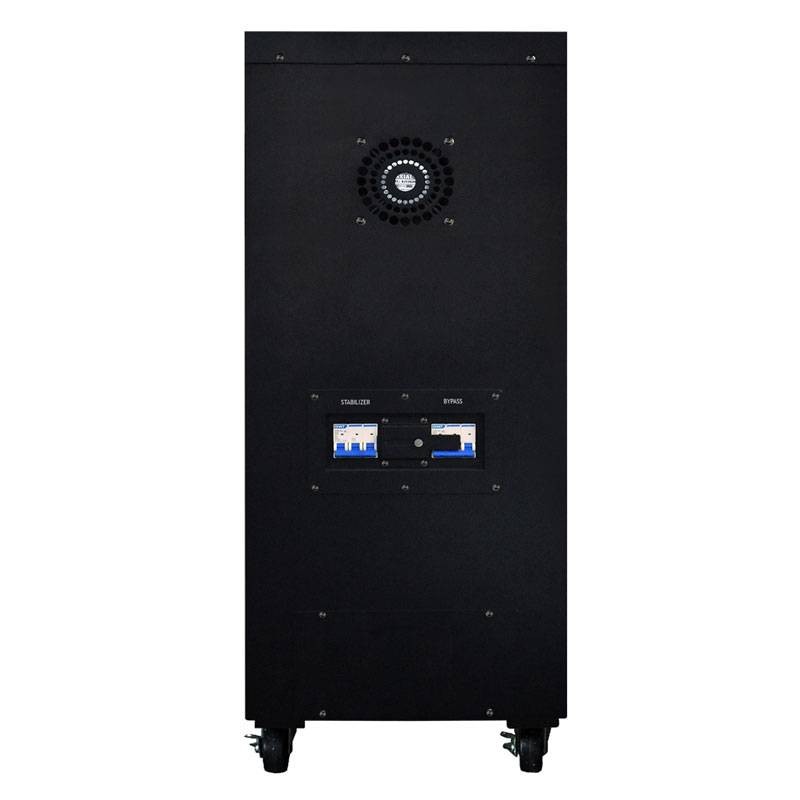

- Mains input switch
- Bypass switch
- Input/output terminal block
Features:
- Rated power 9 KVA
- Active power 7.2 KW
- Power factor 0.8
- Servo assisted electronically controlled technology with microprocessor
- Dimensions WxHxD 34x77x40 cm
- Dimensions with packing WxHxD 39x92x48 cm
- Weight 80 kg
Input:
- Number of phases 3F+N
- Rated voltage 380/400/415Vac (selectable)
- Input voltage tolerance 260Vac-470Vac
- Rated frequency 50/60 Hz
- Phase unbalance 1
Output:
- Number of phases 3F+N
- Rated voltage 380/400/415Vac (selectable)
- Voltage stability ±1%
- Regulation speed 12 m Sec/Volt
- Efficiency >97%
- Load variation 0% to 100%
- Overload 1.5
- Rated frequency 50/60 Hz
Environmental operating conditions:
- Working temperature 0 to 55 °C
- Relative humidity < 95% non-condensing
- Maximum altitude 3000 m
- Degree of protection IP20
- CE Certifications.
There are no reviews
Data sheet
- Type: Voltage Regulators
- Rated Power: 9000VA
- Active Power: 750W
