Notifier EVAC Evacuation Alarm System 320W MINIVES 2001 L
NOT MINIVES 2001 L
Notifier Evacuation Alarm System EVAC 3200W MINIVES 2001 L certified EN54-16 and EN54-4 for wall installation:
- All in one - freestanding wall mounting
- Stand-alone solution or TCP/IP network architecture
- Audio processing via Integrated DSP
- Intercom function between microphone bases that and/or control units
- High playback quality
- Evacuation, paging message and background music functions
- Speaker impedance monitoring
- Ergonomic installation
- Intuitive and user-friendly programming software
- Number of AB zones 2
- Number of speaker lines 4
- Number of control inputs 7
- Number of relay outputs 3
- Number of amplifiers / Power 2 / 160 W RMS
- Redundant amplifier Yes - 160 W RMS
- Number of messages played simultaneously 1
- Protection Temperature, short circuit, overload, ground fault
- Maximum battery backup time 30 hours + 30 minutes in alarm
- Input protection IP 30
- Operating conditions -5 to + 45°C / humidity 5% to 95% non-condensing
- Gross weight 26 kg
- Dimensions (W x H x D) 440 mm x 525 mm x 350 mm
- Finish Black
€3,221.34
Items Available: 4
Frequently bought together

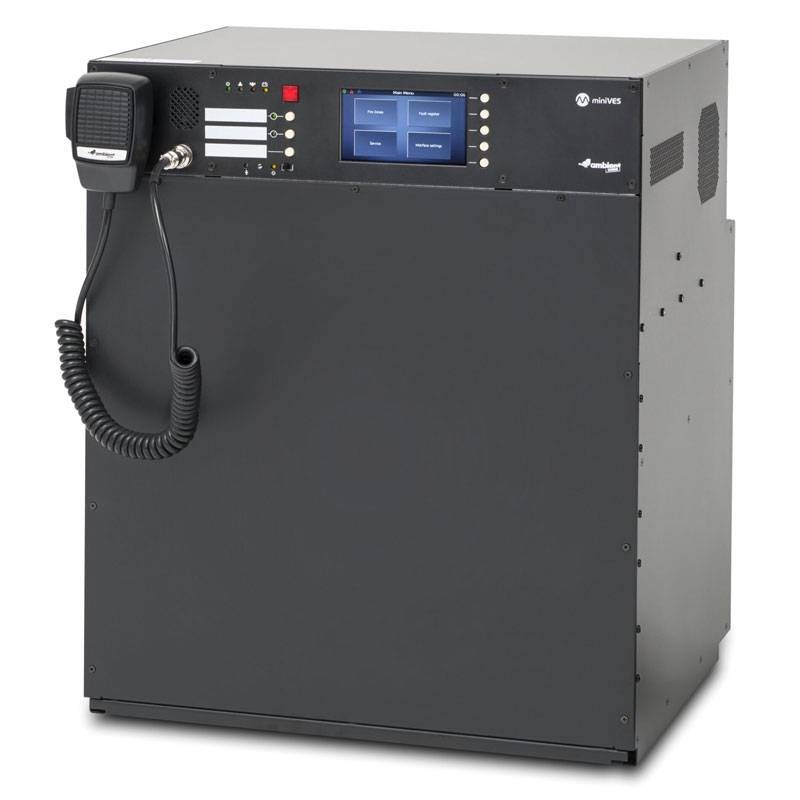

MiniVES is a scalable Public Address & Voice Alarm unit suitable for multipurpose architectures. The miniVES series devices are compact voice alarm control units containing all components within a single housing that meet all the requirements of EN 54-16 and EN 54-4 standards (performance constancy certificate 1438-CPR-0527). The entire system concept is based on high-quality audio network distribution nodes equipped with two independent 160 W or 320 W class-D amplifiers that distribute 100 V signals to 4 or 8 speaker lines depending on the type. The system also ensures the operation of a backup amplifier for the type of signals with emergency priority.
MiniVES has a built-in backup power supply and a charging unit that complies with EN 54-4.
MiniVES is designed to be a Plug & Play device with all the elements expected of voice evacuation systems; including a built-in fire microphone, touchscreen for global control, DSP, freely programmable inputs and touch buttons, timer, scenario configuration, and expandable memory size for messages-all mounted in an IP30 chassis.
Independent systems can be interconnected by networking them and extended by zone microphones or emergency microphones via TCP/IP protocol for control of the entire system, live communications and background music sharing. The system is designed to be wired using CAT-5e cables to connect paging microphones and redundant fiber optic connections between systems and/or the ABT-DFMS security call station.
The miniVES system network supports up to 45 high-quality audio signals distributed across 254 networked devices.
There are no reviews
Data sheet
- Type: Evacuation alarm systems
