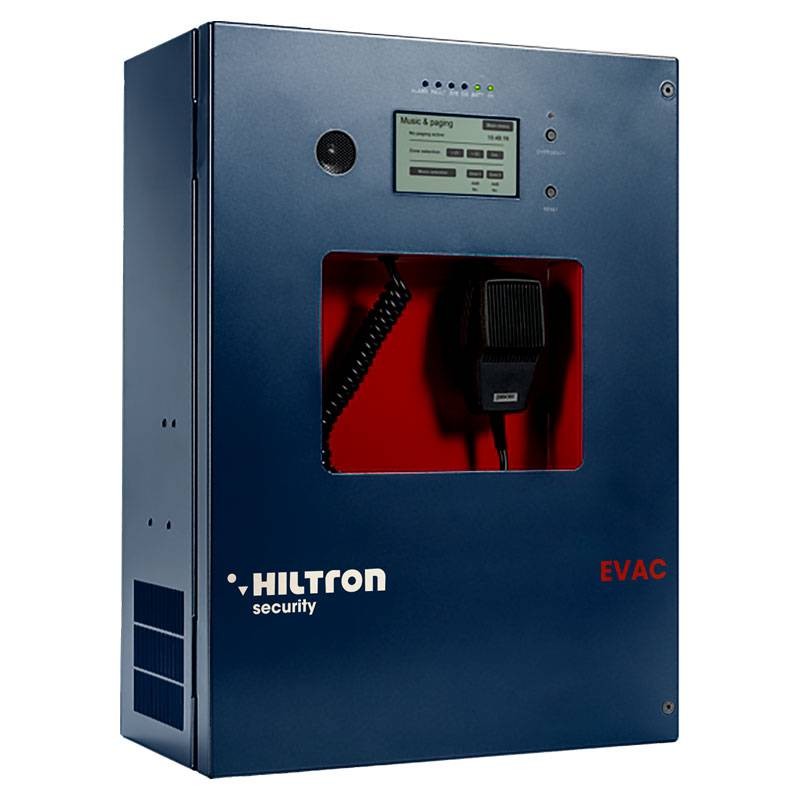

Hiltron Evac 250W 2 zone wall-mounted evacuation control unit with display EVAC250
C1A EVAC250
Hiltron wall-mounted 2-Zone Voice Evacuation Control Panel is a system designed for emergency management in two zones (A+B) with a total power output of 250 W. Its compact design for wall mounting and advanced control features make this system ideal for schools, hospitals, shopping malls and other public buildings, with the following features:
-
Audio power rating: 250 watts
-
Alarm zones: 2 (A+B)
-
Display: 4.3-inch backlit touch screen
-
Inputs: 4 configurable supervised contacts
-
Outputs: 2 configurable relay outputs
-
Microphone: VVF handheld included
-
Power supply: Internal charger unit, 24 VDC
-
Expandability: Support for spare amplifier and option cards
€2,172.14
Items Available: 3
: 2
Hiltron Evac 250W 2 zone wall-mounted evacuation control panel with display
The EVAC250 control panel is equipped with a 4.3 touch screen display, allowing quick and easy configuration. With supervised input contacts, the system can be connected to a fire panel for full integration, allowing automatic activation of pre-recorded messages for evacuation or alerting.
Versatile functionality
In addition to emergency management, the control panel includes a configurable auxiliary input for music or calls with automatic activation (VOX), two configurable relay outputs, and a VVF handheld microphone. System capabilities can be extended with option cards, such as a backup amplifier or additional music input.
Certified reliability
With a 24 VDC secondary power supply and the ability to monitor faults via LEDs, the control panel ensures operational continuity even under critical conditions. The system allows messages and audible alarms to be reset directly from the local panel, simplifying management operations.
Technical Features
| Feature | Detail |
|---|---|
| Audio power rating | 250 W |
| Display | 4.3 inch backlit touch screen |
| Emergency microphone | Dynamic XLR-F on front port with P.T.T. (Push To Talk) button |
| Microphone range | 110 ÷ 10,000 Hz, 61 dB |
| PA / Emergency stations (UNIT) | No. 1 RJ45 for call unit (PA) or emergency stations (ESR) |
| PA / Emergency Range | 60 ÷ 20,000 Hz, 84 dB |
| AUX INPUT (LINE VOX) / MUSIC | Programmable for ON / OFF / VOX mode with A.P.T. |
| AUX INPUT Range | 40 ÷ 20,000 Hz, 73 dB |
| Outputs | Constant voltage 2 zones A/B for 100V lines |
| Emergency controls (Inputs IN1÷IN4) | No. 4 inputs with programmable diagnostics by status |
| Relays R1, R2 | Programmable with N.O-N.C-Exchange status |
| Power supply from mains | 330 W full load |
| Secondary power supply | 9.8 A full load; 940 mA in energy saving mode |
| Power supply | TL 10ATL |
| Mounting | Wall-mounted |
| Dimensions | 360x495x193 mm |
There are no reviews
Data sheet
- Type: Evacuation alarm systems
- Zone: 2
