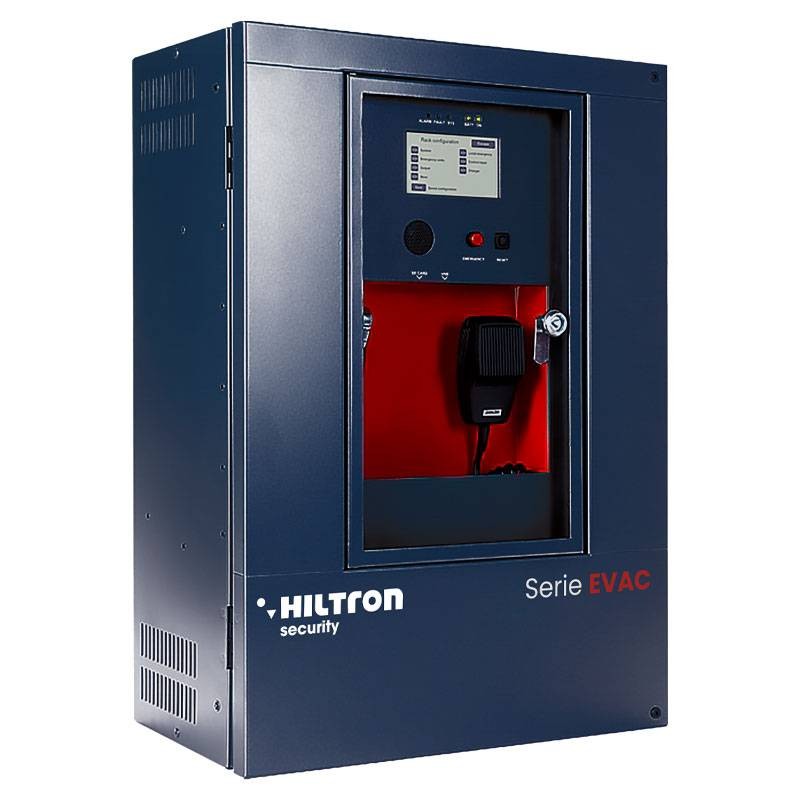

Hiltron Evac 500W 4 zone wall-mounted evacuation control unit with display EVAC4000

Cia Hiltron
Cia Hiltron
C1A EVAC4000

Hiltron 4-zone voice evacuation control unit is an integrated solution for emergency management in public and commercial facilities, provides safety, reliability and versatility in any context, with the following features:

  • Audio power: 500 W total, 250 W max per zone

  • Alarm zones: 4 with dual output A+B

  • Display: 4.3-inch backlit touch screen

  • Inputs: 7 supervised contacts, 1 auxiliary, 1 VOX

  • Outputs: 3 configurable relay outputs

  • Remote stations: Up to 16 broadcast or 4 emergency

  • Power supply: 24 VDC internal battery charger (batteries not included)

Do you have questions about this product or did you not find what you were looking for? Ask us!
Hiltron Evac 500W 4 zone wall-mounted evacuation control unit with display EVAC4000
€4,824.93
€4,824.93

€4,824.93
Tax included
Calculate shipping cost
Items Available: 1
Further availability of the manufacturer
€4,824.93

Buy it within and receive it from Friday, 26 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Hiltron Evac 500W 4-zone wall-mounted evacuation control panel with display

The EVAC4000 central unit integrates a 4.3-inch backlit touch screen display that allows easy navigation between zone selection, level adjustment and message configuration functions. Ideal for emergency management, it enables the broadcast of pre-recorded evacuation and alert messages or via VVF handheld microphone.

Broad connectivity and customization

Designed to adapt to a wide range of scenarios, the control panel has numerous configurable inputs and outputs. It supports the connection of music sources and automatic VOX calls, as well as providing compatibility with up to 6 additional units to expand the system in larger installations.

Certified security

The unit includes an LED fault monitoring function, protected emergency buttons and a built-in EN54-4 certified battery charger for 24 VDC secondary power supply. Dual A+B outputs for each zone provide added security in audio signal distribution.

Technical Features.

Feature Detail
Audio power rating 230Vac 500W
Rated audio power 24Vdc 400W
Display 4.3-inch backlit touch screen 480x272 dots
Number of zones/amplifiers 4
Mains power supply 230Vac 230Vac 50/60Hz +10/-15%
646 W full load (2amp active)
36 W no load
Batteries Not included
Recommended value: (26-28 Ah). Batteries of 18-33-40 Ah can also be used.
Temperature +5/+40 degrees
Relative humidity 25/75% without condensation
Mounting Wall-mounted
Dimensions 430x620x240 mm (WxHxD)
Weight 19.3 kg (without batteries)

There are no reviews

Data sheet

Type:
Evacuation alarm systems
Zone:
4
