Fixed bottom plate/dir 4P Schneider PrismaSet P NSX-INS 250 4M LVS03412

Schneider
Schneider
SNR LVS03412 3606481874269

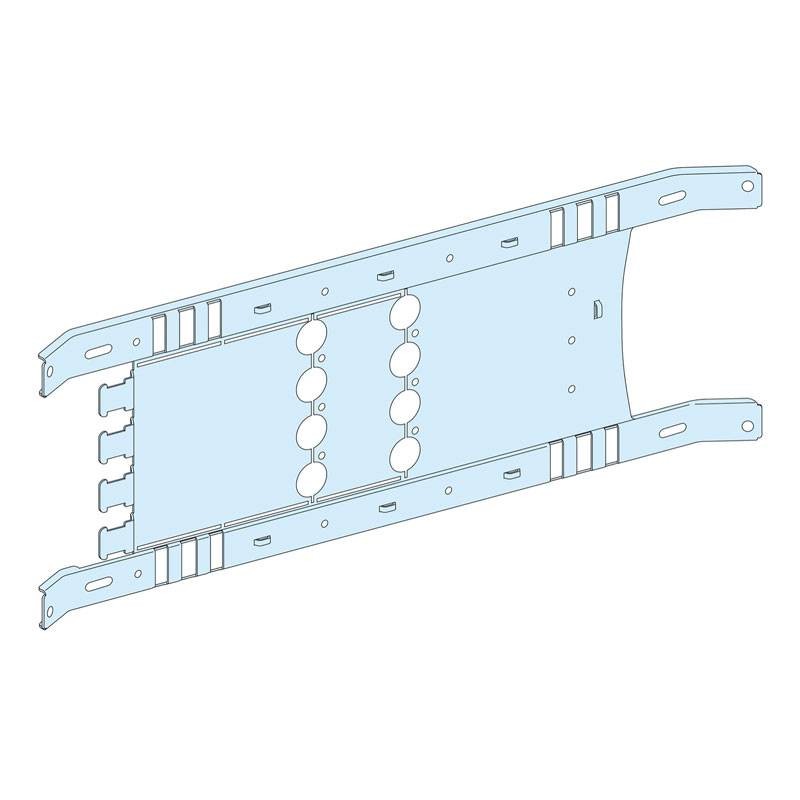

Schneider PrismaSet P fixed bottom plate/dir4P with the following features:

  • Product range: PrismaSet P
  • Product type or component: mounting plate
  • Compatibility range: PrismaSeT P box
  • Installation description: cabinet width 650 mm - depth 400 mm
  • Reference Standards: IEC 61439-2
  • Product certifications: STARE
  • 4 modules
  • Material: Sheet steel
  • Protection treatment: Electrophoresis treatment and cured polyester epoxy powder
  • Surface finish: Matt textured
Do you have questions about this product or did you not find what you were looking for? Ask us!
Fixed bottom plate/dir 4P Schneider PrismaSet P NSX-INS 250 4M LVS03412
€131.02
€131.02

€131.02
Tax included
Calculate shipping cost
Items Available: 33
Further availability of the manufacturer
€131.02

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Schneider circuit breaker combinations:

Device installed:

  • Easypact: fixed CVS100...160 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS250 without differential protection - control: lever - horizontal installation
  • Compact: fixed INS250 - control: direct front rotary operation - horizontal installation
  • Compact: fixed INV250 - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX100...160 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX250 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS100...160 with differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS250 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX100...160 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX250 with differential protection - control: lever - horizontal installation

Description poles:

  • 1 4P: fixed CVS100...160 horizontal installation
  • 1 4P: fixed CVS250 horizontal installation
  • 1 3P: fixed INS250 horizontal installation
  • 1 4P: fixed INS250 horizontal installation
  • 1 3P: fixed INV250 horizontal installation
  • 1 4P: fixed INV250 horizontal installation
  • 1 4P: fixed NSX100...160 horizontal installation
  • 1 4P: fixed NSX250 horizontal installation

Number of vertical modules (50 mm):

  • 4 modules: CVS100...160 without differential protection , direct in 650 mm cabinet
  • 4 modules: CVS250 without differential protection , direct in 650 mm cabinet
  • 4 modules: INS250, direct in 650 mm cabinet
  • 4 modules: INV250, direct in 650 mm cabinet
  • 4 modules: NSX100...160 without differential protection , direct in 650 mm cabinet
  • 4 modules: NSX250 without differential protection , direct in 650 mm cabinet
  • 4 modules: CVS100...160 with differential protection , direct in 650 mm cabinet
  • 4 modules: CVS250 with differential protection , direct in 650 mm cabinet
  • 4 modules: NSX100...160 with differential protection , direct in 650 mm cabinet
  • 4 modules: NSX250 with differential protection , direct in 650 mm cabinet

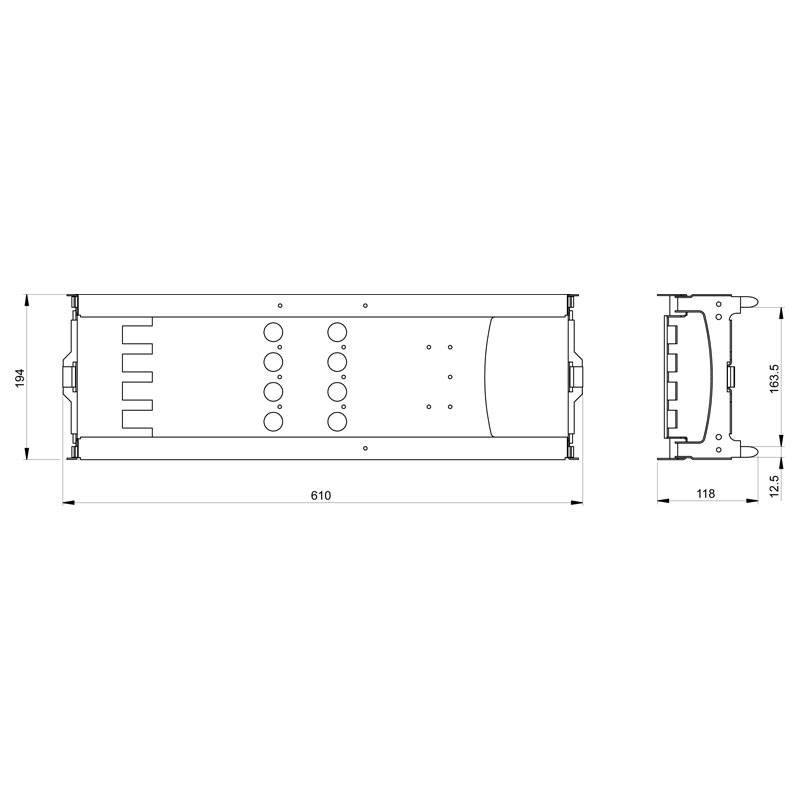

Dimensions and weight:

  • Height: 192 mm
  • Width: 650 mm
  • Weight: 1.48 kg
