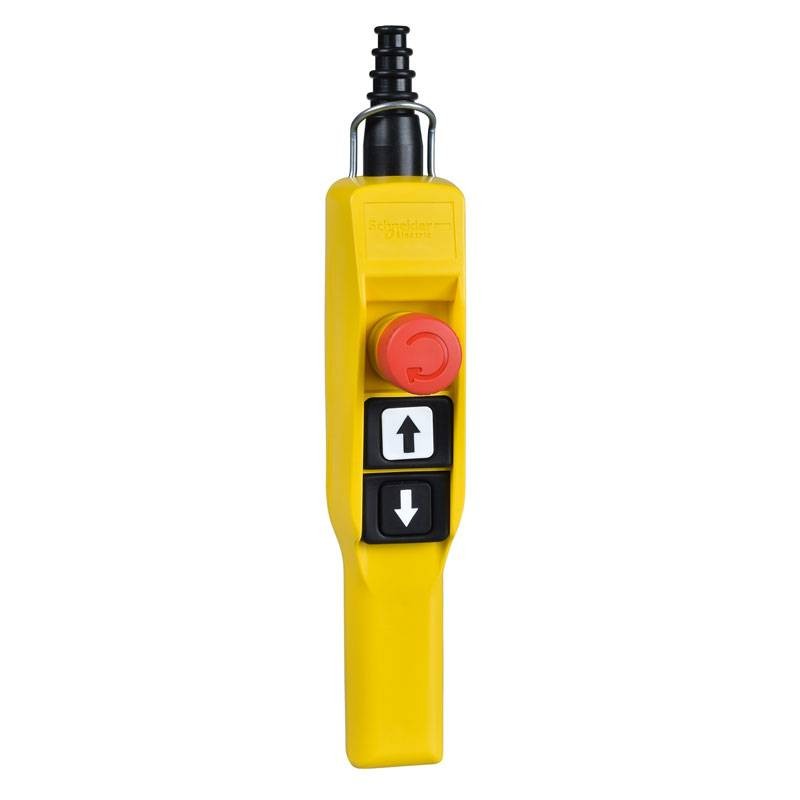

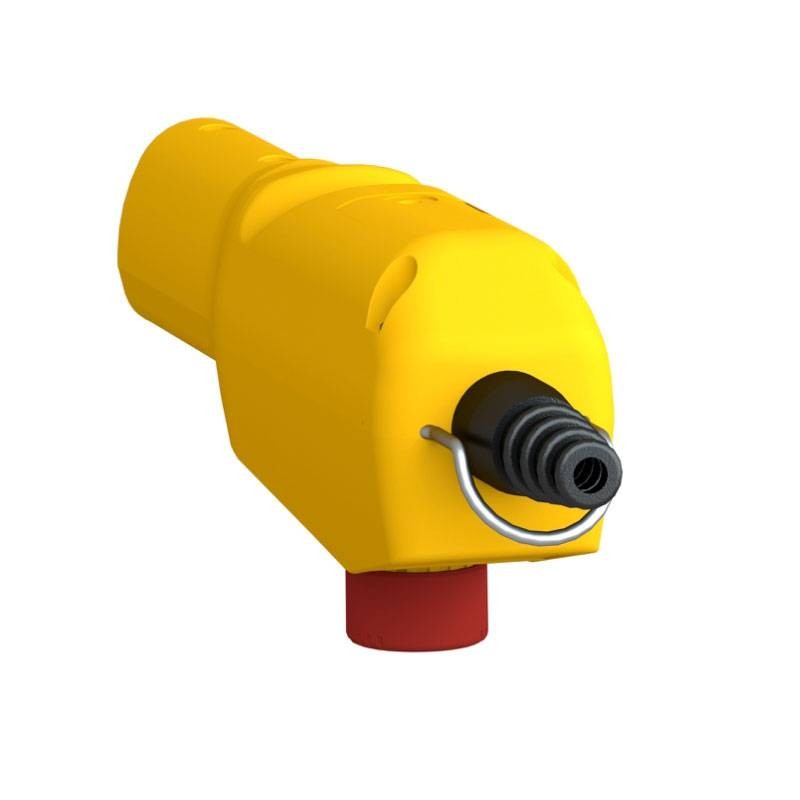

Schneider XAC-A 2-button 1 emergency stop complete hanging switch XACA2153
SNR XACA2153
3389110558876
Schneider XAC-A complete hanging pushbutton panel with the following features:
- Pushbutton panel model: Double insulation
- Box material: Polypropylene
- Type of control: Intuitive
- Type of electrical circuit: Control circuit
- Pushbutton panel application: Single speed lift motor control
- Pushbutton panel composition: 2 initialized pushbuttons + 1 emergency stop
- Conventional thermal current in box: 10 amps
- Rated insulation voltage: 600 V (pollution degree 3) in accordance with IEC 60947-1
- Rated impulse withstand voltage: 6 kV complying with IEC 60947-1
€54.48
Items Available: 6
: 1
Frequently bought together
Schneider Electric's Harmony XAC yellow hanging hand control for hoist motors has 1 speed.§
It has 1 "up" button + 1 "down" button + 1 emergency stop button and uses screw terminals.
This hanging hand control for hoisting motors is designed for standard or medium power control circuit applications in machines. It has 2 pushbuttons and 1 emergency stop with "ascent" and "descent" markings, with normally open and normally closed contact.
With its IP65 rating, it is resistant to shock and vibration, is protected against dust and liquid penetration, and is ideal for use in harsh environments.
The impact- and stain-resistant casing allows preservation of appearance. Yellow casing improves visual contrast and visibility in the dark.
Ergonomic "Pistol grip" allows one-handed control of cranes and gantries. Wide operating temperature range from -25°C to 70°C ensures versatility of product use
Features:
- Control button type: Stop button Ø 30 mm 1 NC engage - First button 1 NC + 1 NO raise, slow - Second button 1 NC + 1 NO lower, slow
- Mechanical interlock: With mechanical interlock
- Terminal connections: Screw terminals, 1 x 2.5 mm² with or without cable end - Screw terminals, 2 x 1.5 mm² with or without cable end
- Ambient operating temperature: -2570 °C
- Storage temperature: -4070 °C
- Vibration resistance: 15 gn (F= 10500 Hz) complying with IEC 60068-2-6
- Shock resistance: 100 gn complying with IEC 60068-2-27
- Degree of protection: IP65 in accordance with IEC 60529
- Degree of protection IK: IK08 in accordance with EN 50102
- Mechanical durability: 1000000 cycles
- Cable entry: rubber sleeve with stepped entry 715 mm
- Contact operation: Slow opening
- Maximum resistance between terminals: 25 M?
- Operating force: 1315 N
- Short-circuit protection: 10 A cartridge fuse protection fuse type gG
There are no reviews
Data sheet
- Type: Pendant control stations
