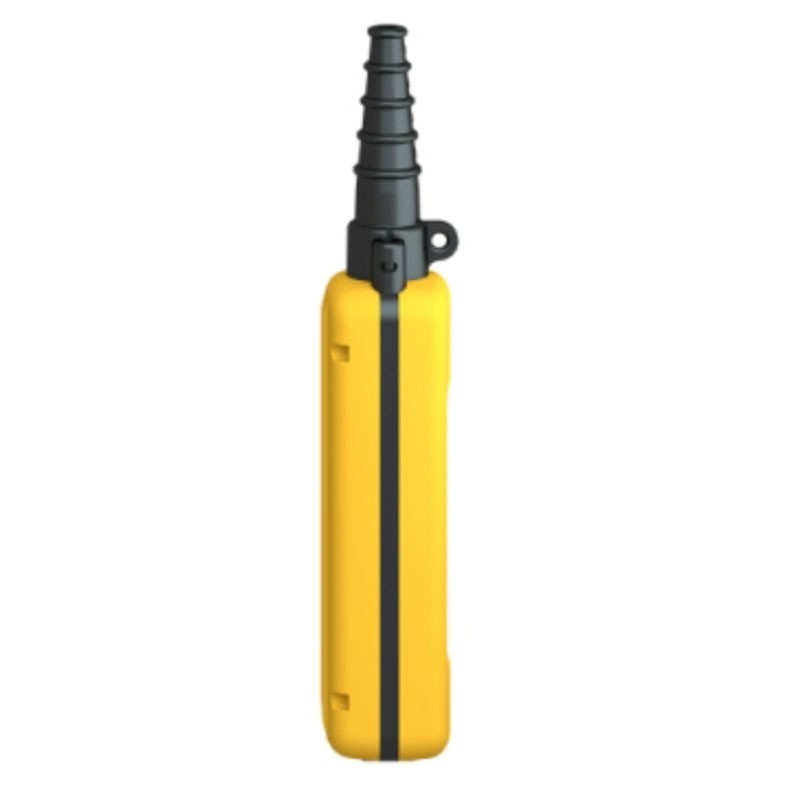

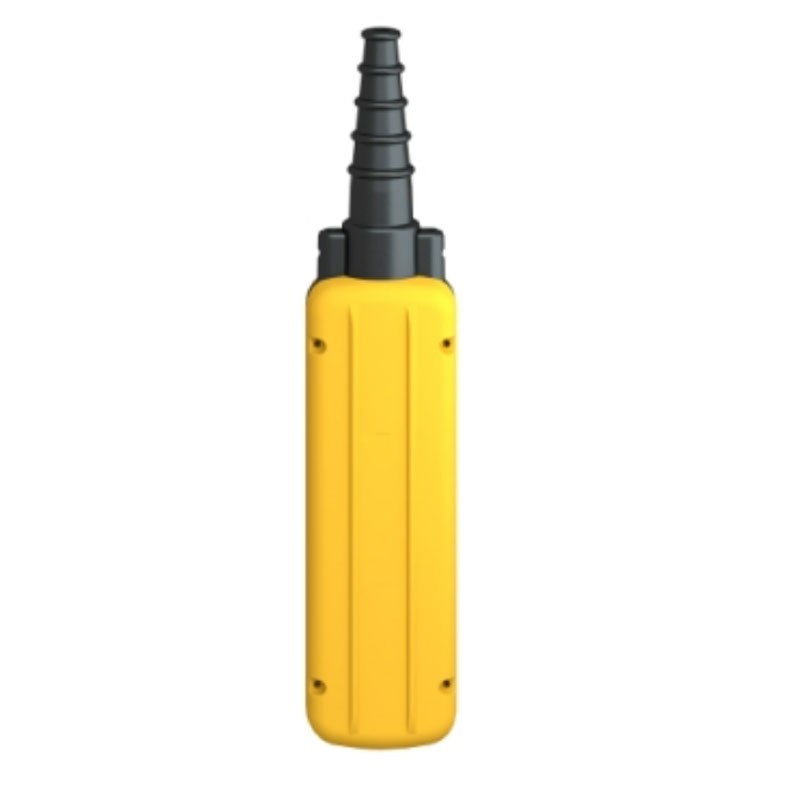

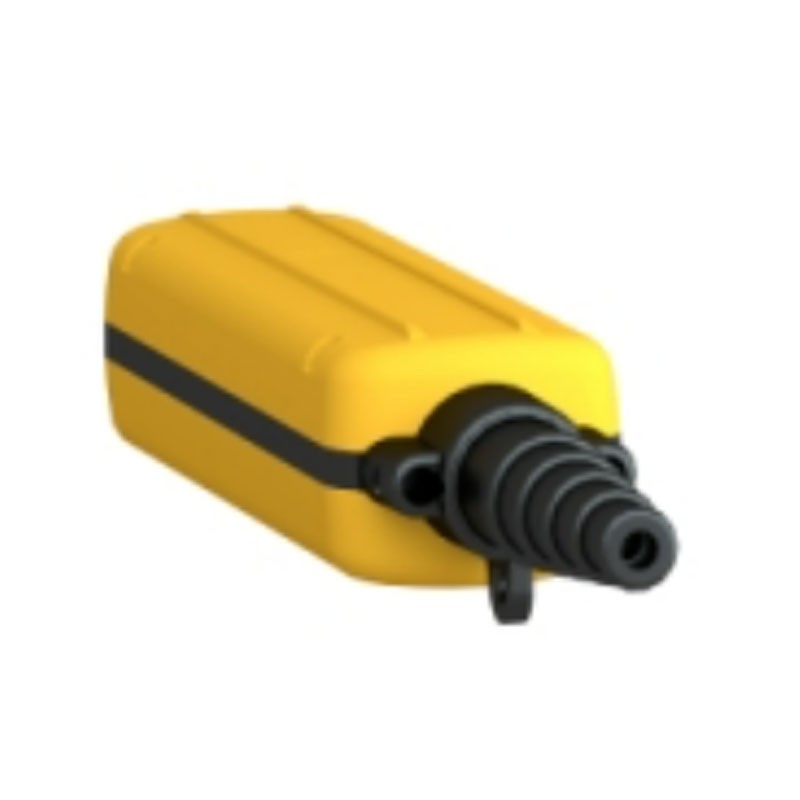

Telemecanique XAC-A XACA04 Empty Hanging Hand Control Panel
Schneider XAC-A blank wall-mounted pushbutton panel with the following features:
- Pushbutton panel model: Double insulation
- Box material: Polypropylene
- Type of electrical circuit: control circuit
- Pushbutton panel model: empty cassette
- Number of holes: 4
- Push button panel color: yellow
- Cable entry: rubber sleeve with stepped entry 8 to 26 mm
- Guard rail: without
- Vertical control hole center: 30 mm
- Product certifications: CCC - GOST
Telemecanique XAC-A XACA04 Empty Hanging Hand Control Panel
Tax included
Frequently bought together

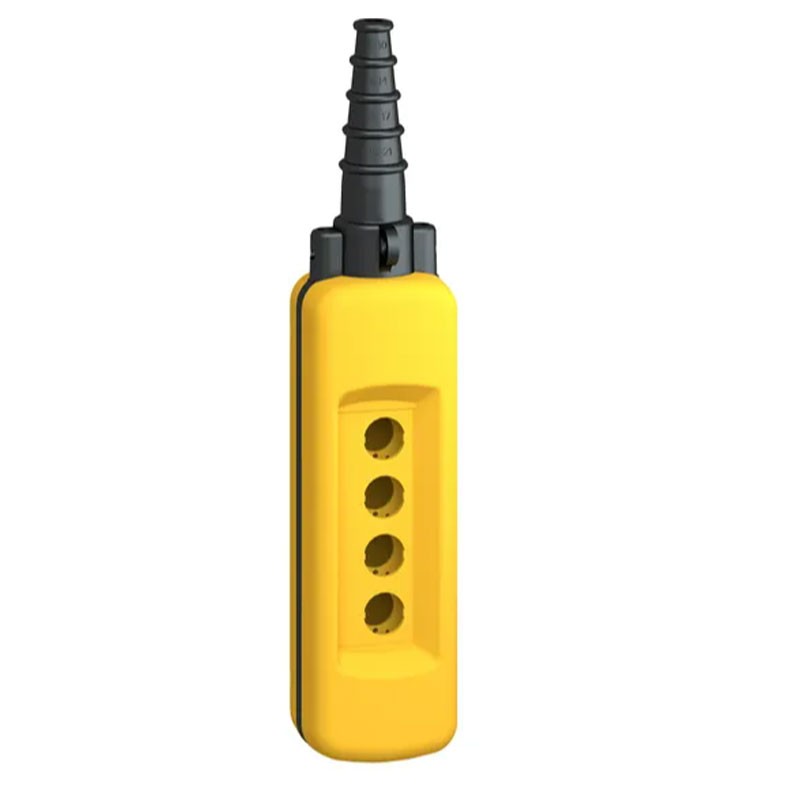

Schneider Electric's Harmony XAC Hollow Hanging Hand Control Panel has 4 holes for 4 buttons/4 functions to control machine operation. It is made of polypropylene and has a yellow casing. This yellow 4-hole empty hanging button panel is ideal for general purposes, as it allows the machine builder to add as many control units as needed for factory-assembled custom stations. It is designed for simple and mass production machines, textiles, packaging, management of small lifting systems, garage door control, rotary dampers, and smoke extraction openings. With its IP65 rating, it is resistant to shock and vibration, is protected against dust and liquid penetration, and is ideal for use in harsh environments.
Other technical features:
- Protection treatment: TH
- Operating ambient temperature: -25/+70 °C
- Storage temperature: -40/+70 °C
- Vibration resistance: 15 gn (F= 10...500 Hz) complying with IEC 60068-2-6
- Shock resistance: 100 gn in accordance with IEC 60068-2-27
- Overvoltage category: Class II in accordance with IEC 61140
- Degree of protection IP65 conforming to IEC 60529
- Degree of protection IK08 in accordance with EN 50102
- Mechanical durability: 1000000 cycles
- Weight: 0.54 kg
Reference Standards:
- UL 508
- EN/IEC 60204-32
- EN/IEC 60947-5-1
- CSA C22.2 No 14
Data sheet
- Type:
- Pendant control stations
