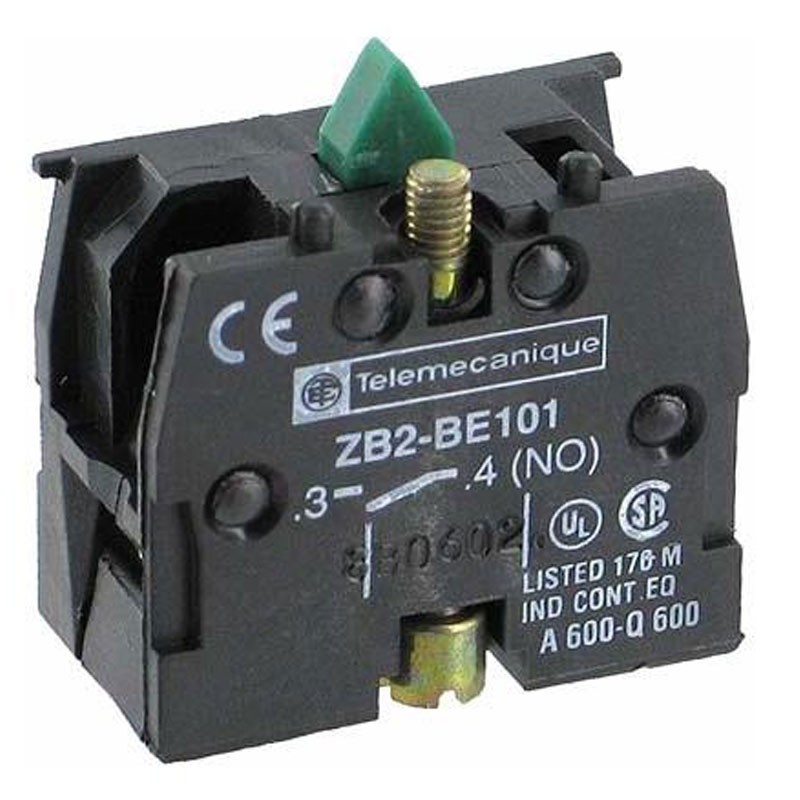

Telemecanique Additional Contact 1NA front mounting ZB2BE101
SNR ZB2BE101
3389110612608
Schneider Telemecanique additional contact, with the following characteristics:
- Rated insulation voltage [Ui]: 600V (pollution degree 3) compliant with IEC 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV according to IEC 60947-1
- Maximum resistance between terminals: 25 MΩ
- Resistance: 13...15 N
- Short-circuit protection: 10A cartridge protection fuse type gG (gl)
- Description of ISO Terminals #1: (13-14) NO
- Weight: 0.02 kg
- Conventional thermal current in box [Ithe]: 10A
Telemecanique Additional Contact 1NA front mounting ZB2BE101
€5.93
€5.93
Tax included
Tax included
Pay in installments with Klarna
Items Available: 66
Other features:
- Operating ambient temperature: -25...70 °C
- Storage temperature: -40...70 °C
- Vibration resistance: 15 gn (F= 10...500 Hz) per IEC 60068-2-6
- Shock resistance: 100 gn according to IEC 60068-2-27
- Class of protection against electric shock: Class II in accordance with IEC 61140
- Type of electrical circuit: control circuit
- Contact block application: One speed
- Contact block type: Single
- Operator type: impulse
- Contact composition and type: 1 NO
- Mounting of contact or light elements: direct front mounting on push button
- Contacts operation: slow opening
- Mechanical life: 1000000 cycles
Nominal operating power in W
- 40 W DC-13 for 1000000 cycles, operating range <3600 cycles/h at 120 V, load factor = 0.5 in accordance with IEC 60947-5-1
- 48 W DC-13 for 1000000 cycles, operating range <3600 cycles/h at 48 V, load factor = 0.5 according to IEC 60947-5-1
- 65 W DC-13 for 1000000 cycles, operating range <3600 cycles/h at 24 V, load factor = 0.5 per IEC 60947-5-1
Reference Standards:
- EN/IEC 60947-5-1
- UL 508
- EN/IEC 60204-32
- CSA C22.2 No 14
Product Compatibility:
- XB4
- XAPS2
- XACA
- XB5
Data sheet
- Type:
- Contacts
