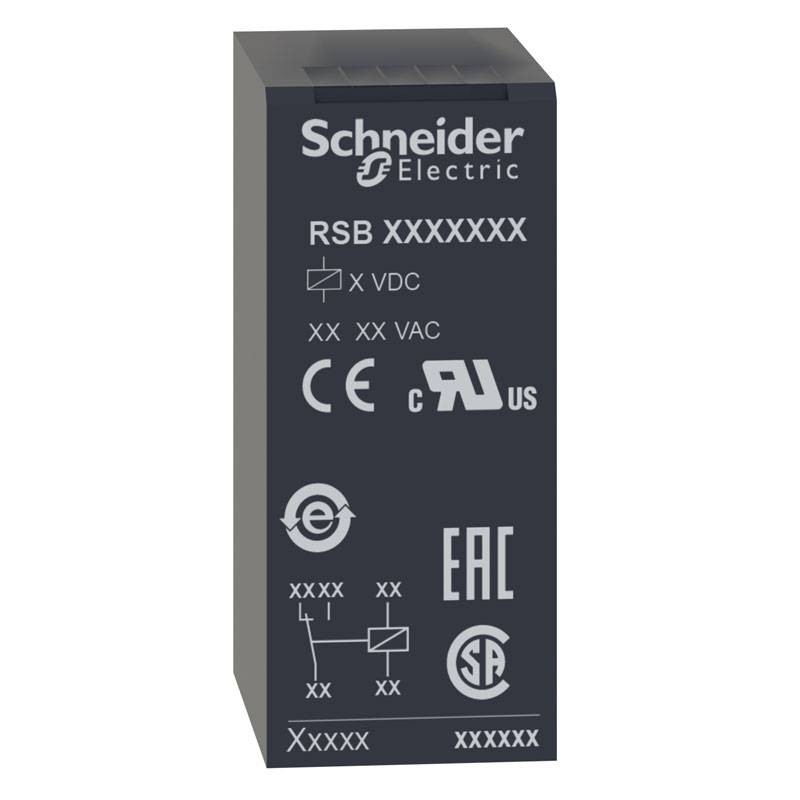

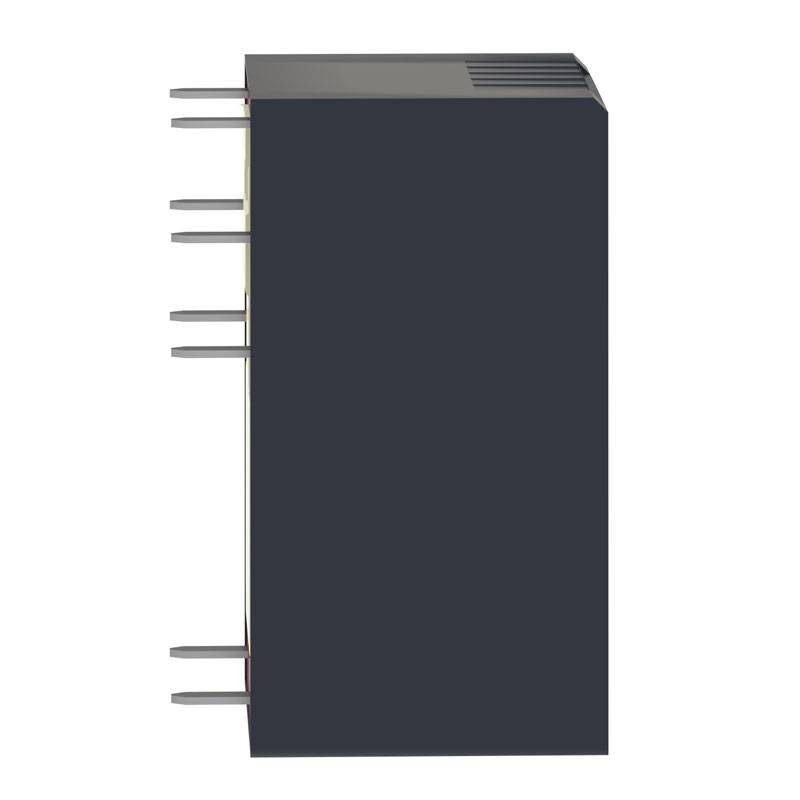

Schneider RSB interface relay 8A 230V AC 2 contacts RSB2A080P7
SNR RSB2A080P7
3389110256611
Schneider Harmony RSB interface relay with the following features:
- Product range: Harmony Electromechanical Relays
- Contact composition and type: 2 OC
- Rated current: 8A
- Voltage: 230V AC
- Degree of protection: IP40
€8.78
Items Available: 20
: 18
Schneider Electric's Harmony RSB plug-in interface relay has a coil control voltage of 230 Vac and two double-pole switching contacts with a rating of 8 amps. This interface relay, reduces the size of cabinets and at the same time, to increase machine reliability for industrial machinery, packaging, textile industry, HVAC, automation control panels, low/medium voltage distribution boards, motor controls, PLC interfaces, power supplies, building or medical equipment, lighting controls.
Benefits:
- Helps reduce the size of cabinets while increasing the reliability of machines: it can be installed anywhere
- Provides an economical solution for implementing many switching functions with many contacts
- Its flexible design saves space
- The plug-in type facilitates installation and maintenance
- Has a transparent cover that allows the operator to visually check the status of the contacts
Features:
- Status LED: Without
- Control type: Without button
- Average coil resistance: 33000 Ohm Network: DC at 20 °C +/- 10 %
- Rated impulse withstand voltage: 3.6 kV
- Minimum switching current: 10mA
- Minimum switching voltage: 12V
- Storage temperature: -40/+85 degrees
- Ambient operating temperature: -40/+85 degrees
There are no reviews
Data sheet
- Type: Monitoring relays
- Voltage: 230VAC
- Degree of protection: IP40
- Amps: 8A
