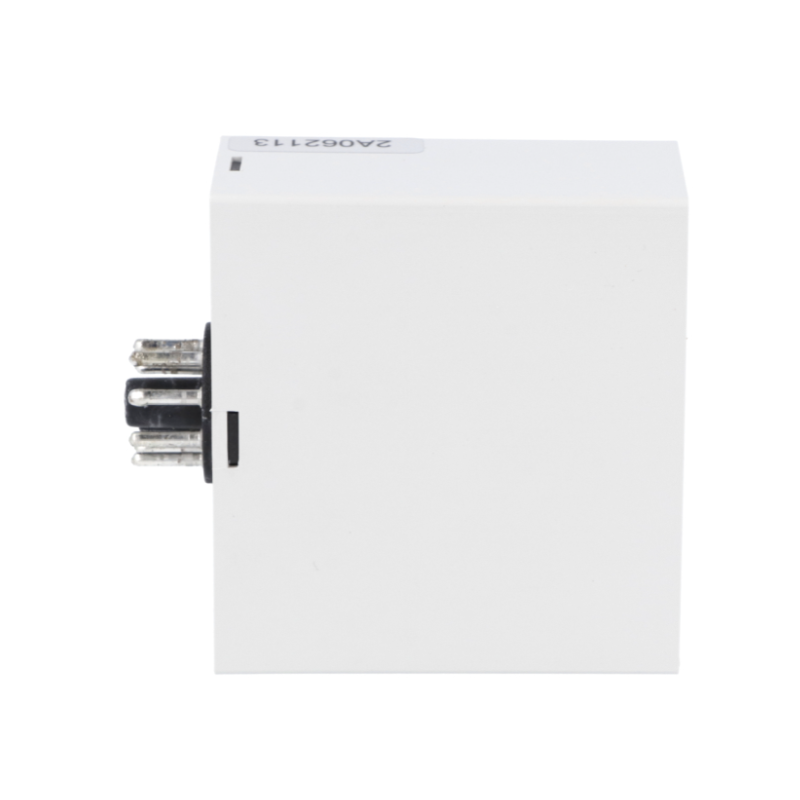

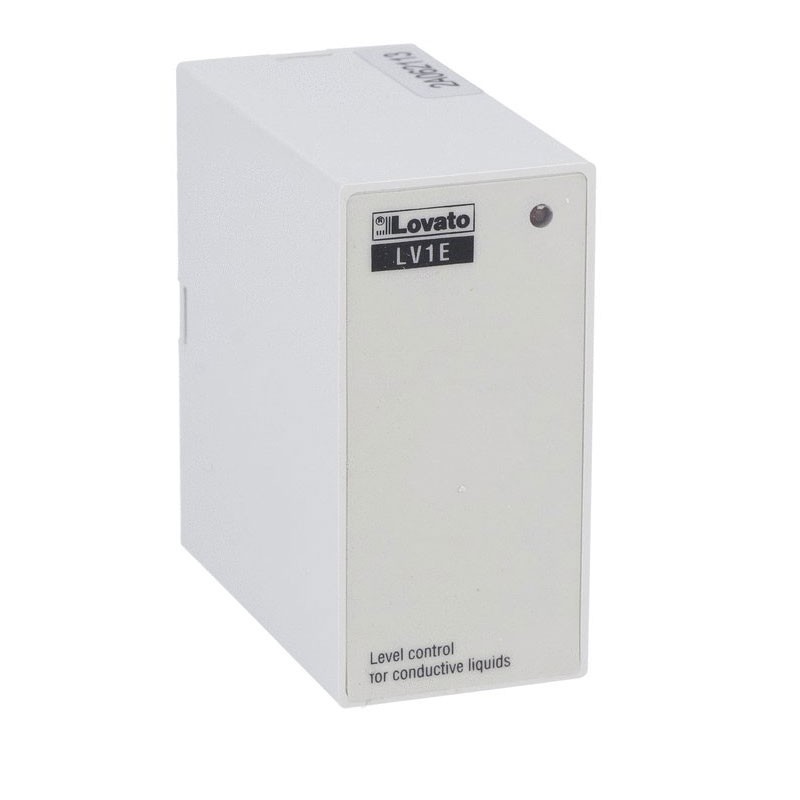

Lovato single-voltage withdrawable level relay 220-240VAC 31LV1E24
LOV 31LV1E24
8013975015698
Level control relay for the Lovato emptying function, with the following characteristics:
- Supply voltage type: single voltage
- Rated auxiliary supply voltage Us: alternating current min 24 Vac
- Operating voltage range: 0.85 to 1.1 Us
- Rated frequency: 50/60 Hz
- Max power consumption: 5.5 VA
- Max power dissipation: 2.8W
- Number of electrodes that can be connected: 3
- Sensitivity: kohm 7...8 fixed
€70.79
Items Available: 1
Frequently bought together
Relay outputs:
- Rated AC operating voltage (IEC) VAC 220
- Maximum switching voltage VAC 380
- IEC Conventional free air thermal current Ith UN 5
- UL/CSA and IEC/EN 60947-5-1 designation: B300
- Electrical life (at rated load): cycles 2.5 x 105
- Mechanical life: 50x106 cycles
Insulations:
- Rated insulation voltage Ui 415V
- Rated impulse withstand voltage Uimp Kv 5
- Withstand voltage at operating frequency Kv 2
Housing:

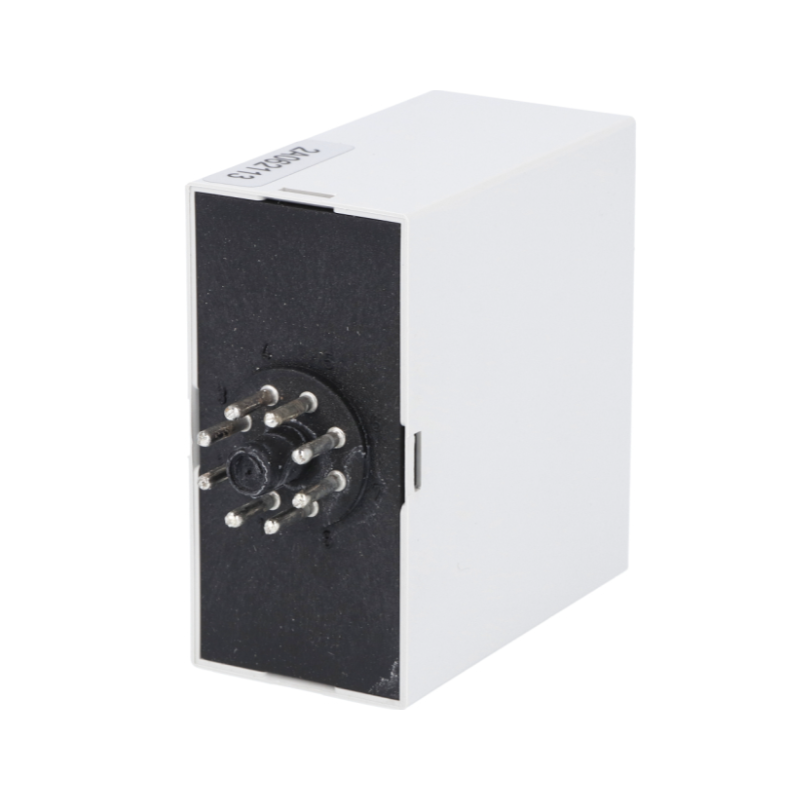

- Design: 8-pole plug-in housing (S8 socket)
- Material: Self-extinguishing polycarbonate
- Mounting: 35 mm DIN rail (IEC/EN 60715) or 8-pin plug-in housing
Other technical features:
- Travel time S =0.05
- Recovery time S=0.1
- Relay outputs: number of relays 1
- Indication: 1 red LED for relay status
- Type of terminals: connect
- Degree of protection: IP30

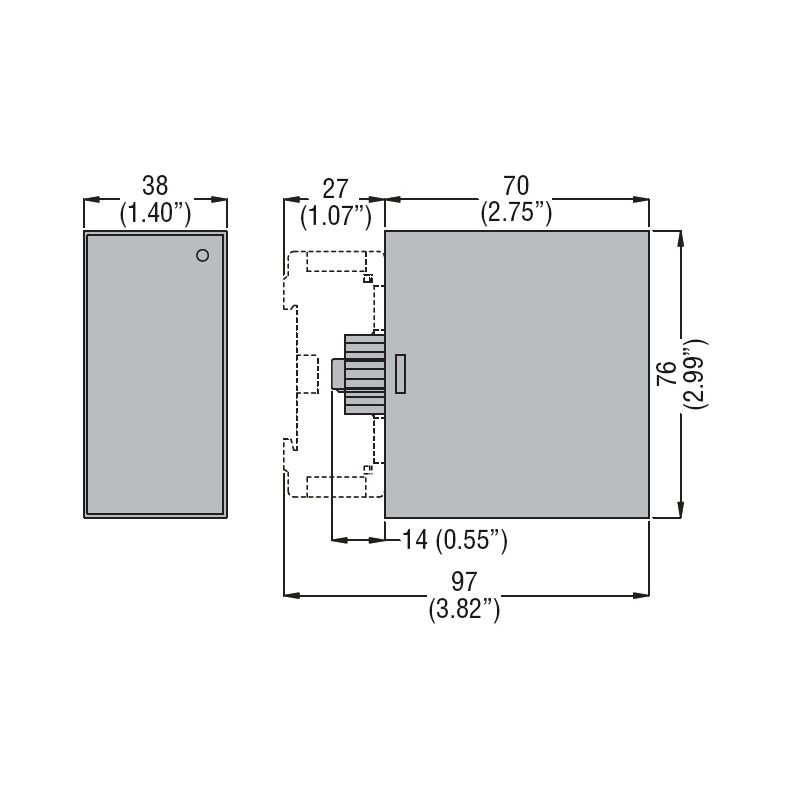

- Dimensions: (WXAXP): 38X76X70
- Weight: 263 grams
- Operating temperature: min °C -20 - max °C +60
- Storage temperature: min °C 30 - max °C +80
There are no reviews
Data sheet
- Type: Monitoring relays
- Voltage: 220/240VAC
- Degree of protection: IP30
