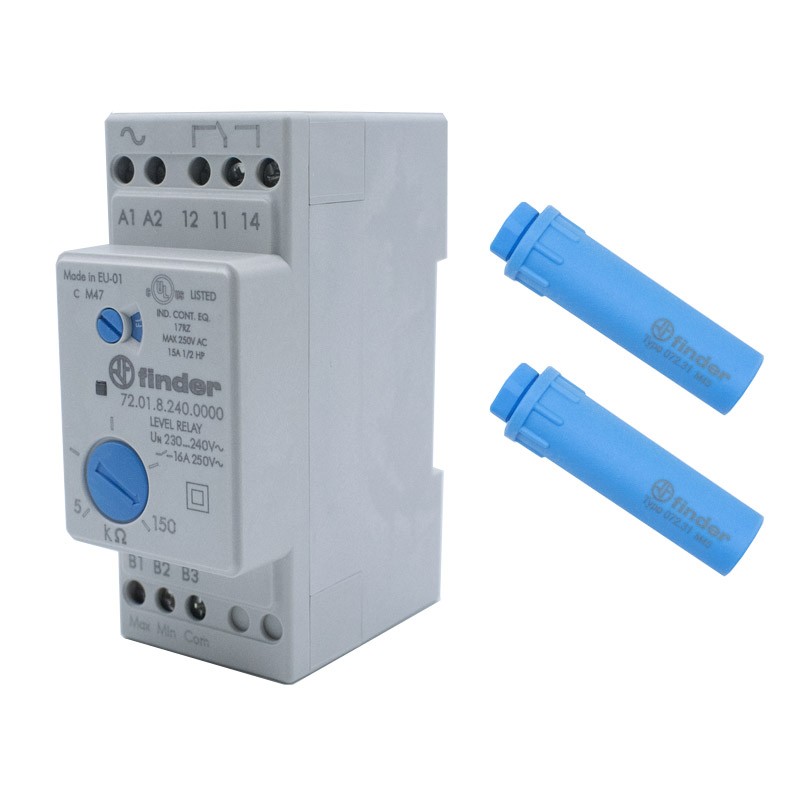

Finder Level Control Relay with two Unipolar Probes 230VAC 720182400000PQA
FIN 720182400000PQA
8012823378237
Finder Kit Consisting of:
- 1 Level control relay 240V (720182400000)
- 2 Unipolar probes (07231).
€69.95
Items Available: 15
Features Level control relay:
- Adjustable sensitivity (5150)k?
- Switching delay selectable (0.5 s or 7 s via selector)
- Fill or empty function selectable by selector switch
- Contact configuration 1 switch
- Current rating/Max instantaneous current 16/30A
- Nominal voltage/Max switching voltage V AC 250/400
- Nominal load in AC1 4000VA
- Rated load in AC15 (230 V AC) 750VA
- Single-phase motor capacity (230 V AC) 0.55KW
- Minimum switching load mW (V/mA 500 (10/5)
- Nominal supply voltage (UN) AC V (50/60 Hz) 230240
- Nominal AC/DC power VA (50 Hz)/W 2.5/1.5
- Operating range V AC (50/60 Hz) 184253 3
- Sensor voltage V AC 4
- Sensor current mA 0.2
- Trip delay 0.5 - 7 seconds (selectable)
- Maximum sensitivity 5150 (adjustable)
- Ambient temperature 20+60
- Protection category IP20.
Data sheet
- Type: Monitoring relays
- Voltage: 230VAC
- Degree of protection: IP20
