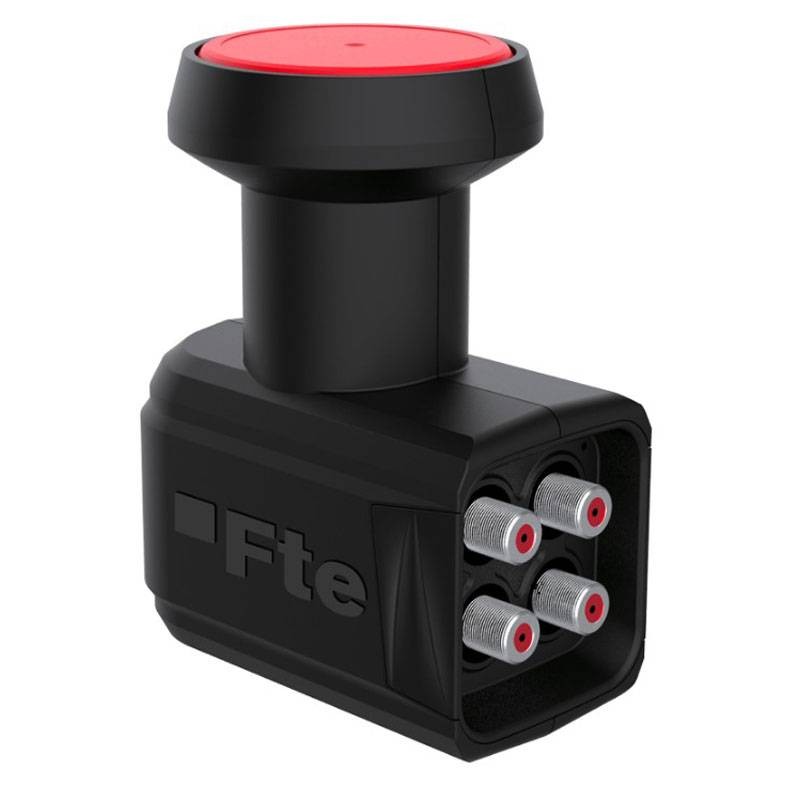

FTE Low Noise Converter RED 4 Outputs RHQQUAD
FTE RHQQUAD
8436545306147
Low Noise Converter RED Compilant four independent outputs FTE Maximal converter with the following features:
- Number of outputs: 4
- Input frequency: 10.7/12.75 GHz
- Supply voltage: 11.5-19 DVC
- Max current consumption: 190 mA
- Impedance: 75 Ohm
- Output connector: F-type
- Dimensions: 139x53x99 mm (WxHxD)
Can be connected to four independent receivers, also capable of receiving HD satellite signals.
€18.38
Items Available: 6
: 3
Low Noise Converter RED Compilant four independent outputs, low noise with figure of 0.1 dB, enables reception of satellite signals from a satellite having the full 1st IF band.
Advantages:
- Complies with the RED radio equipment directive
- Low noise figure and high gain converter
- Very low noise figure and low power consumption
- High shielding to interfering 1,800 MHz LTE signals
Features:
- Number of outputs: 4
- Input frequency: 10.7/12.75 GHz
- Supply voltage: 11.5-19 DVC
- Max. current consumption: 190 mA
- Impedance: 75 Ohm
- Output connector: F-type
- Dimensions: 139x53x99 mm (WxHxD)
- Local oscillator frequency: 9.75/10.6 GHz
- Output frequency: 950-1950/1100-2150 MHz
- Polarity switching: 13V-18V/0-22 KHz
- Noise figure: 0.1 dB
- Feed diameter: 40 mm
There are no reviews
Data sheet
- Type: Illuminators
- Version: 4 outputs
