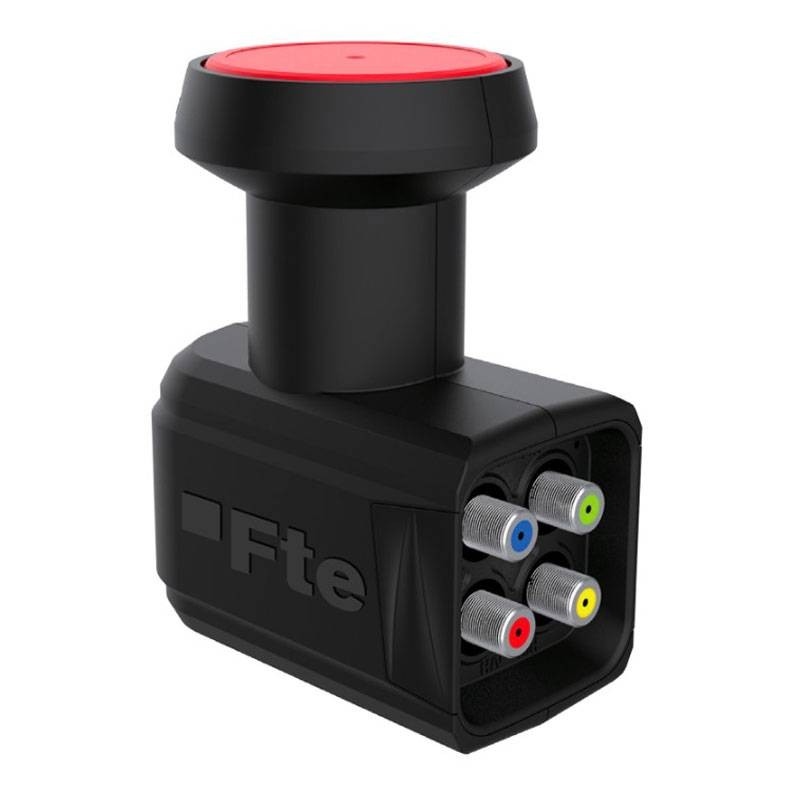

FTE Low Noise Converter 4 Polarity VH VL HH HL RHQQUATTRO
FTE RHQQUATTRO
8436545306642
Low Noise Converter RED Compilant FTE Maximal converter with the following characteristics:
- Number of outputs: 4 - VL, HL, VH, HH
- Input frequency: 10.7/12.75 GHz
- Polarity switching: 13V-18V/0-22 KHz
- Supply voltage: 11.5/19 DVC
- Max. current consumption: 200 mA
- Output connector: F-type
- Dimensions: 139x53x99 mm (W-A-P)
Having the four separate polarities VH, VL, HH and HL, it can be used in centralized multiswitch systems, hotel systems, fiber optics.
€18.38
Items Available: 3
: 1
Low Noise Converter RED Compilant with four separate polarities, enables reception of satellite signals from a satellite by having the full 1 F on four outputs VH, VL, HH and HL, compatible for dual feed.
Features:
- Number of outputs: 4 - VL, HL, VH, HH
- Input frequency: 10.7/12.75 GHz
- Polarity switching: 13V-18V/0-22 KHz
- Supply voltage: 11.5/19 DVC
- Max. current consumption: 200 mA
- Output connector: F-type
- Dimensions: 139x53x99 mm (W-A-P)
- Local oscillator frequency: 9.75/10.6 GHz
- Output frequency: 950-1950/1100-2150 MHz
- Gain: 52/65 dB
- Impedance: 75 Ohm
- Feed diameter: 40 mm
- Complies with RED radio equipment directive
- Low noise figure and high gain converter
- Very low noise figure and low power consumption
- High shielding to interfering 1,800 MHz LTE signals
There are no reviews
Data sheet
- Type: Illuminators
- Version: 4 outputs
