Samsung Cassette Air Conditioner 360° 35000BTU 10kW single-phase
KIT CAS360-36M
8801643769543
The Samsung 360 35000 BTU (10 kW) cassette air conditioner with R32 Gas combines circular design and advanced technology for even air distribution. Thanks to the Coanda effect, it provides 360° flow without fins, reducing temperature variations and increasing comfort in any room.

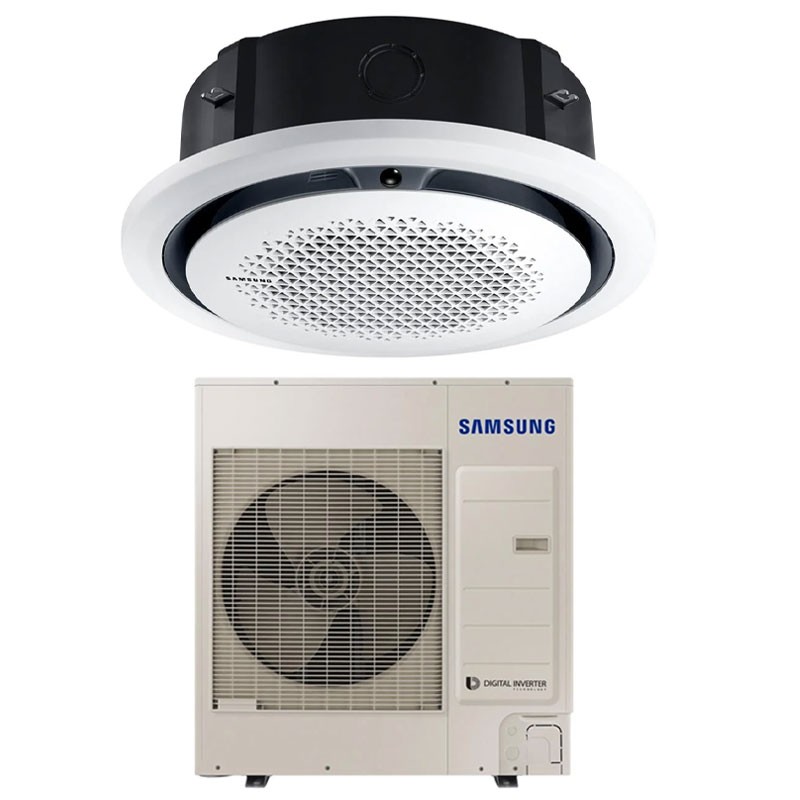

Set includes:

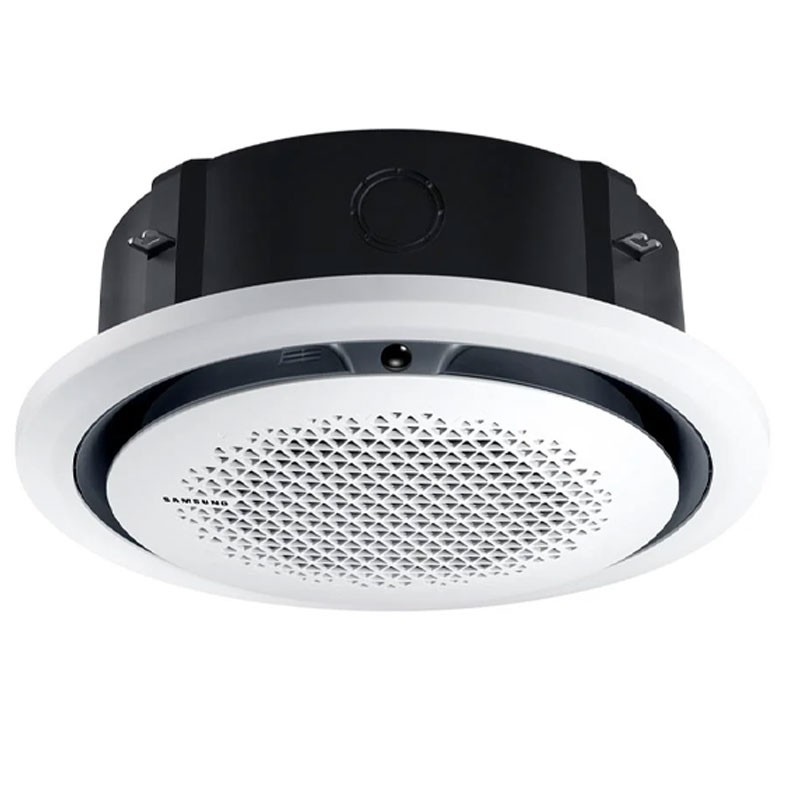

- 1 Cassette Indoor Unit 360 10.0kW (AC100RN4PKG/EU)

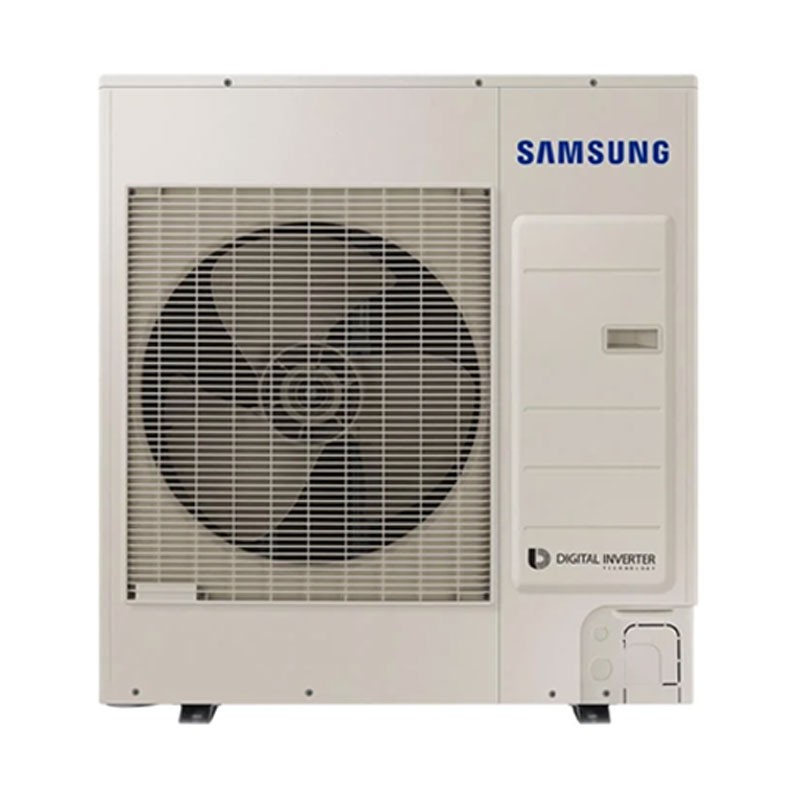

- 1 Outdoor Unit 10.0kW (AC100RXADKG/EU)

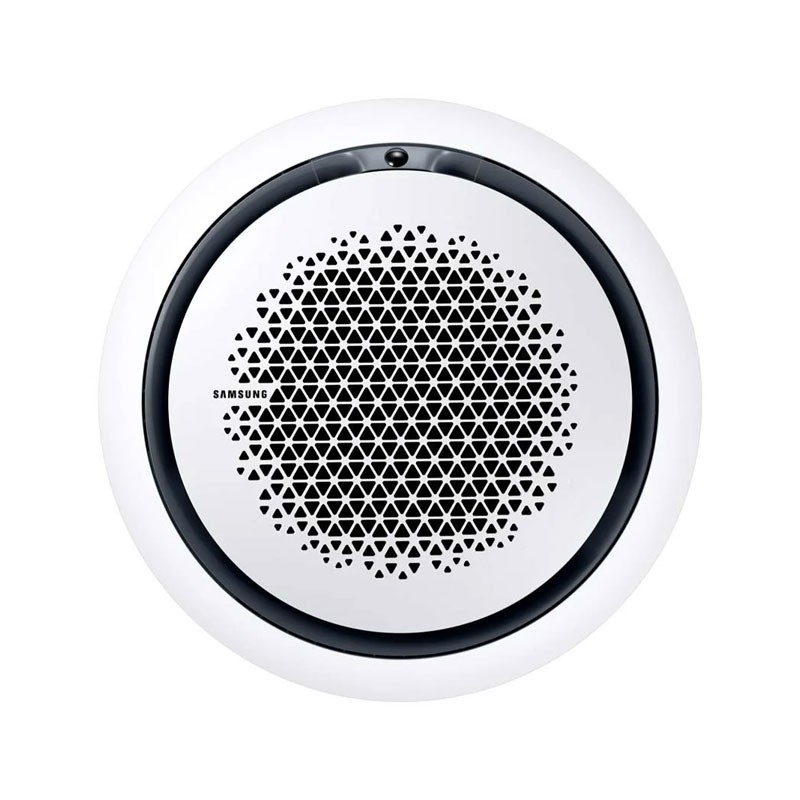

- 1 360° White Circular Panel (PC4NUNMAN)
Compatible controls to be purchased separately are as follows:
- Simplified flush control MWR-SH11N
- MWR-WG00KN wired command.
- Nasa MIM-H04EN Wi-fi kit for remote control
For a room of approximately 150m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€3,270.97
Items Available: 2
: 1
Frequently bought together
- On sale!
Samsung Cassetta single-split: 360° airflow
Unlike conventional air conditioners with 4 directing fins, the Samsung Cassetta 360 uses 3 Booster Fans to create a vacuum and divert airflow without the need for baffles. The result is an even and pleasant "sprinkler" distribution with a temperature difference reduced to 0.6°C compared to 2.3°C in conventional models.
Absence of fins, high comfort
The presence of fins or diffusers in general constitutes a pressure drop for the units' fan; Cassette 360, having no directing fins, makes it possible to zero these losses by taking full advantage of the air flow provided by the fan.
Airflow control
Air delivery is regulated without the use of fins: by means of 3 Booster Fans a depression is created within a circular cavity in the cassette that deflects the outgoing direction of the air. The coanda effect is thus exploited for a "rain" distribution of air, making the room especially comfortable.
LED display and circular design
- The unit features a sleek panel and an intuitive LED display that allows users to change the direction of airflow at will. Users can choose from three settings, including horizontal and vertical, and control the direction of airflow in individual zones.

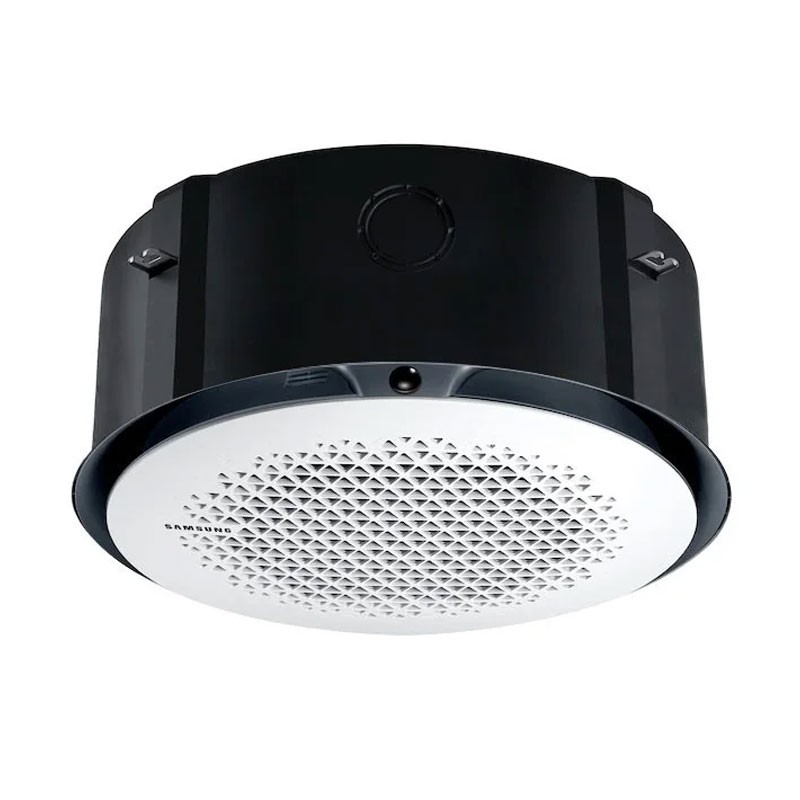

- The panel is available in white or black color, square or circular shape; the cassette can be installed in false ceiling or exposed with any finish, such as wood, concrete, wallpaper or paint. The circular design offers absolute flexibility so that it fits perfectly with the style of any room.
Strengths of the Samsung Monosplit Cassette
- 360° air delivery without distributor fins ("coanda" effect); no pressure drop
- Fan with Inverter motor; outdoor air inlet arrangement
- Built-in condensate drainage pump (750 mmH2O); antibacterial filter included
- "Nasa" protocol communication with optional kit
- SPi Air Purifier device (optional).
Technical Specifications of the Samsung 360° Cassette
Cooling
| Feature | Value |
|---|---|
| Capacity Std (Min~Max) | 10.00 (3.00~12.00) kW |
| Absorption Std (Min~Max) | 3.24 (0.60~4.70) kW |
| SEER (Seasonal Energy Efficiency) | 6,8 |
| Seasonal energy efficiency class | A++ |
| Theoretical heat load (Pdesignc) | 9.0 kW |
| Indicative annual energy consumption (QCE) | 463 kWh/a |
Heating
| Feature | Value |
|---|---|
| Capacity Std (Min~Max) | 11.20 (2.20~15.50) kW |
| Absorption Std (Min~Max) | 3.20 (0.46~5.20) kW |
| SCOP (Seasonal Energy Efficiency) | 4,3 |
| Seasonal energy efficiency class | A+ |
| Theoretical heat load (Pdesignh) | 5.3 kW |
| Declared capacity | 5.3 kW |
| Indicative annual energy consumption (QHE) | 1726 kWh/a |
Indoor Unit
| Feature | Value |
|---|---|
| Dimensions (WxHxD) | 947x365x947 mm |
| Panel Dimensions (WxHxD) | 1000x66x1000 mm |
| Weight | 23.5 kg |
| Panel Weight | 3.6 Kg |
| Treated air (max) | 31.2 m³/min |
| Sound Power Level (Heating) | 61 dB(A) |
Outdoor Unit
| Feature | Value |
|---|---|
| Dimensions (WxHxD) | 940x998x330 mm |
| Weight | 75.0 kg |
| Sound Power Level | 69 dB(A) |
| Power Supply (Ø, V, Hz) | 1, 220-240, 50 |
| Operating Range (Cooling) | -15~50 °C |
| Operating range (Heating) | -20~24 °C |
| Liquid/Gas piping Ømm (inch) | 9.52 (3/8") 15.88 (5/8") |
| Max piping length | 50 m |
| Max height difference (U. Internal/U. External) | 30 m |
| Max piping length without addition of refrigerant | 30 m |
| Additional refrigerant charge | 50 g/m |
| Refrigerant Type | R32 |
| GWP (Global Warming Potential) | 675 |
| Factory precharge | 2.70 Kg |
| Tons CO2 equivalent | 1.82 tCO₂e |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 36000 BTU (10 Kw)
- Room Size: 150m²
- Energy class: A++
