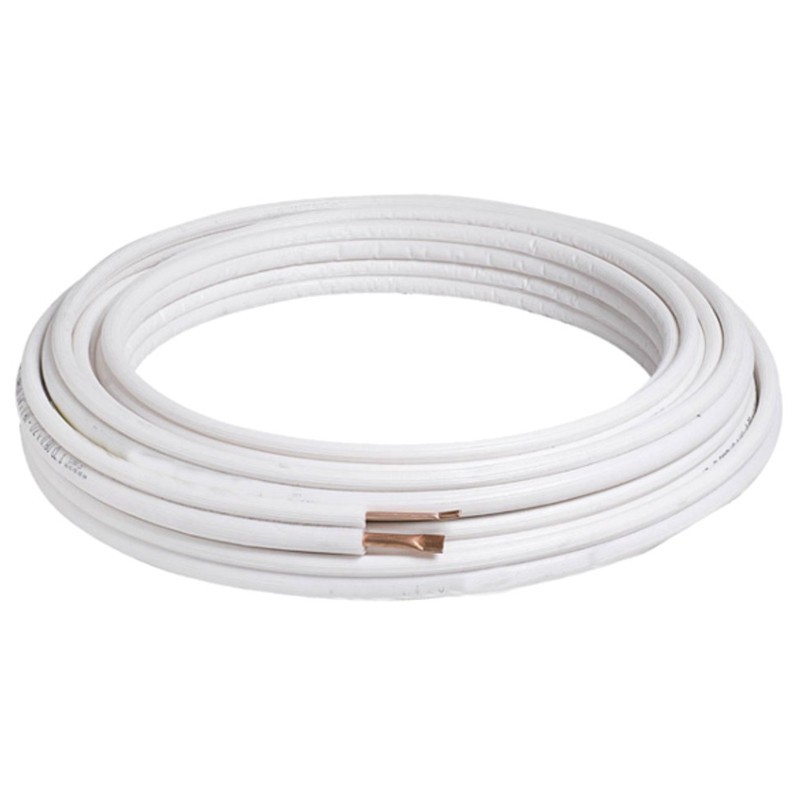

Arnocanali 5/8 insulated copper pipe for air conditioners 50m NTE0458
ARN NTE0458
8018138158816
Arnocanali insulated copper pipe for air conditioners, suitable for R32, R410A, R407C, R422B gas, with the following characteristics:
-
Pipe diameter: 5/8 inch
-
Working pressure: 150 bar
-
Tube material: Copper A.C.R. Cu-DHP 99.9%
-
Sheath: closed-cell expanded polyethylene + strain relief
-
Insulation thickness: 10 mm
-
Sheath outer diameter: 36 mm
-
Compatible gases: R410A, R407C, R422B, R32
-
Applications: Split systems, multi-split, HVAC systems
Sale price is per meter, sellable by 50-meter hank only.
€11.29
Items Available: 50
Insulated copper pipe for air conditioning high performance
Insulated copper pipe is the ideal solution for residential and commercial air conditioning installation due to its high quality materials and resistance to high operating pressures. The 50-m coil offers ample availability for continuous installation, reducing splicing and leakage.
Maximum compatibility with modern refrigerants
The hose is fully compatible with the most popular gases in the HVAC industry:
-
R410A
-
R407C
-
R422B
-
R32
With an operating pressure of 150 bar and burst pressure above 280 bar, it is also suitable for systems requiring high performance and safety.
Certified copper and performance insulation
Cu-DHP 99.9% copper pipe conforms to EN 12735-1, ensuring quality and durability. Closed-cell polyethylene foam insulation, with 10 mm thickness and tear-resistant sheathing, provides optimal thermal protection and reduces leakage.
In addition, the Euroclass BLS1d0 fire rating makes it safe and compliant with the latest European standards, making it ideal for installation in public, residential and commercial buildings.
Vapor permeability and thermal resistance
With a vapor permeability of µ 11,000, the pipe maintains its insulating properties over time, preventing condensation and ensuring high energy efficiency of the system even in critical environments.
Technical Characteristics Insulated Copper Pipe Arnocanali
| Type | Insulated copper pipe for air conditioning |
| Pipe diameter | 5/8 inch |
| Coil length | 50 m |
| Pipe material | Copper A.C.R. Cu-DHP 99.9% (EN 12735-1) |
| Operating pressure | 150 bar |
| Burst pressure | 282.62 bar |
| Insulating sheath | Closed-cell polyethylene foam with tear-resistant layer |
| Insulation thickness | 10 mm |
| Sheath outer diameter | 36 mm |
| Vapor permeability | µ = 11.000 |
| Fire reaction class | Euroclass B-s1,d0 (EN 13501-1) |
| Operating temperature | -80°C ÷ +95°C |
| Compatible gases | R410A, R407C, R422B, R32 |
| Applications | Split systems, multi-split systems, HVAC systems |
There are no reviews
Data sheet
- Diameter: 15.87 mm
- Type: Copper pipes for air conditioning systems
- Length: 50 meters
