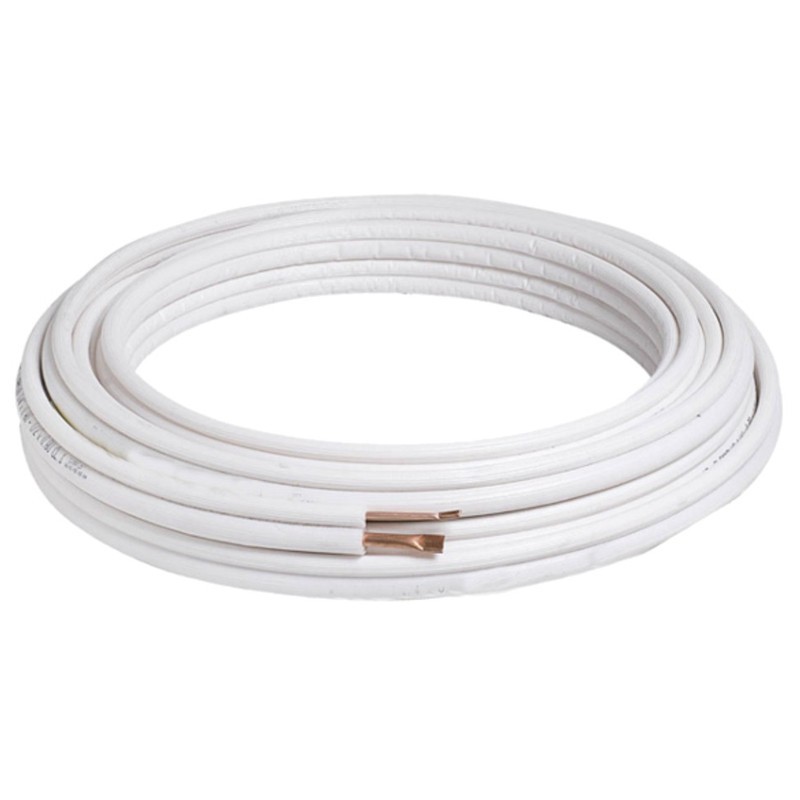

Arnocanali Insulated Copper Pipe for Air Conditioners 3/8 50m NTE0238.08
ARN NTE0238.08
8018138150438
Arnocanali Insulated Copper Pipe for Air Conditioners, designed according to the latest European safety and performance standards, this pipe combines high mechanical strength, excellent thermal insulation and ease of installation, with the following characteristics:
-
Hose diameter: 3/8 inch
-
Working pressure: 65 bar (0.8 MPa)
-
Burst pressure: 329.5 bar
-
Outer sheath diameter: 24 mm
-
Insulation thickness: 8 mm
-
Compatible gases: R410A, R407C, R422B, R32
Sale price is per meter, sellable by 50-meter hank only.
€5.39
Items Available: 300
: 150
Insulated Copper Pipe for Air Conditioners
The 3/8-inch, 50-meter Insulated Copper Pipe is the ideal solution for air conditioning installations, especially for Split systems using modern refrigerant gases such as R410A, R407C, R422B, R32.
Designed according to the latest European safety and performance standards, this pipe combines high mechanical strength, excellent thermal insulation and ease of installation.
Advantages of Arnocanali Pipe
-
Maximum fire safety: complies with the Euroclass B-s1,d0 standard
-
High performance even under extreme conditions
-
Excellent resistance to water vapor diffusion
-
Effective insulation against heat loss
-
Robust, tear-resistant outer sheathing for long service life
-
Easy installation on site due to the flexibility of copper and light weight insulation
Why choose this pipe
Insulated pipe offers the best balance of energy efficiency, strength and safety for modern air conditioning systems, especially where the use of refrigerants with low environmental emissions is required.
Recommended applications
-
Residential and commercial air conditioning
-
Split, MultiSplit and VRF systems
-
Systems with environmentally friendly refrigerants such as R32
Technical Specifications Copper pipe for air conditioners.
| Parameter | Value |
|---|---|
| Pipe diameter | 3/8 inch |
| Roll length | 50 meters |
| Pipe material | Copper A.C.R. Cu-DHP 99.9% (EN 12735-1) |
| Working pressure | 65 bar (0.8 MPa) |
| Burst pressure | 329.5 bar |
| Insulation thickness | 8 mm |
| Insulation type | Closed-cell polyethylene foam |
| Outer sheath diameter | 24 mm |
| Outer sheath | Tear-resistant polyethylene |
| Vapor permeability | µ = 11.000 |
| Operating temperature | -80 °C TO +95 °C |
| Compatible gases | R410A, R407C, R422B, R32 |
| Fire reaction class | Euroclass B-s1,d0 (EN 13501-1) |
| Certifications | EN 12735-1, EN 13501-1 |
Data sheet
- Diameter: 9.52mm
- Type: Copper pipes for air conditioning systems
- Length: 50 meters
