Samsung WindFree Avant Air Conditioner S2 3.5KW 12000BTU WIFI
KIT WFREE12W
8806095911311
The Samsung WindFree™ Avant S2 white is a monosplit inverter Wi-Fi air conditioner of 3.5 kW (12000 BTU), R32 Gas, Wifi included, Energy class A+++/A++ for maximum energy savings, designed to offer maximum comfort, energy efficiency, and superior air quality. Thanks to the WindFree™ technology, it eliminates annoying direct air jets, spreading cool air evenly and quietly. Perfect for any environment, including the bedroom and spaces with children.

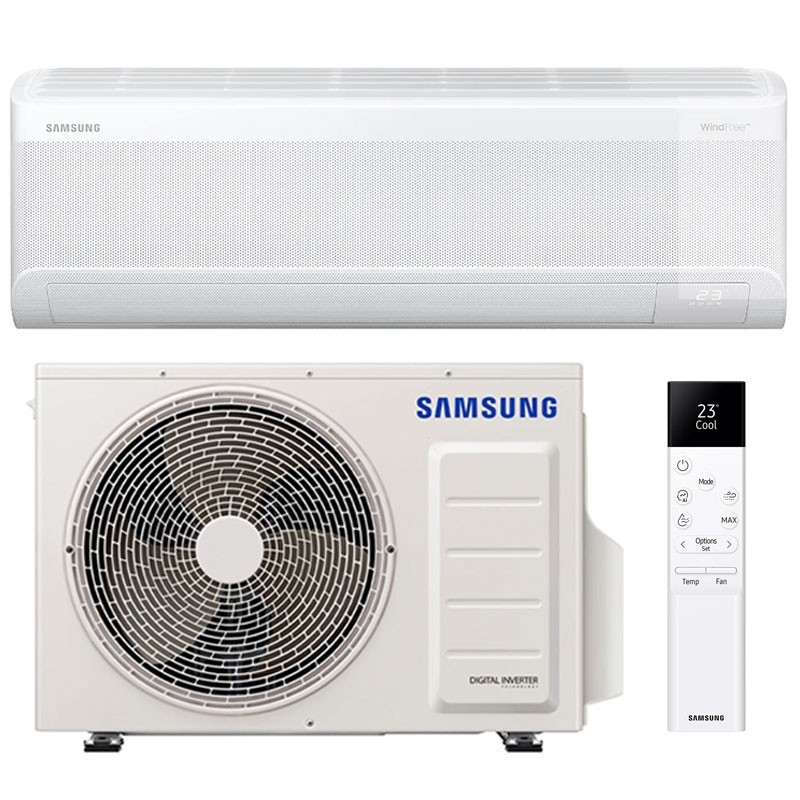

The kit consists of:
-
1 Outdoor unit 12000BTU AR70F12C1AWXEU
-
1 Indoor unit 12000BTU AR70F12C1AWNEU
-

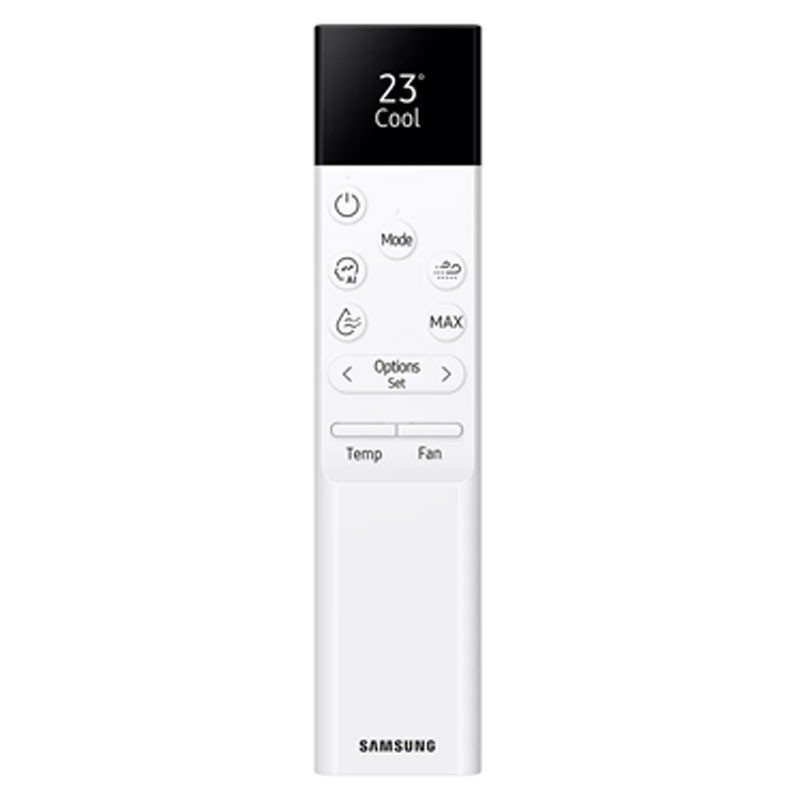

1 Infrared remote control included
Compatibility with SmartThings, Bixby, Hey Google, Amazon Alexa.
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,178.94
Items Available: 3
: 2
Air conditioners of the same series
Frequently bought together

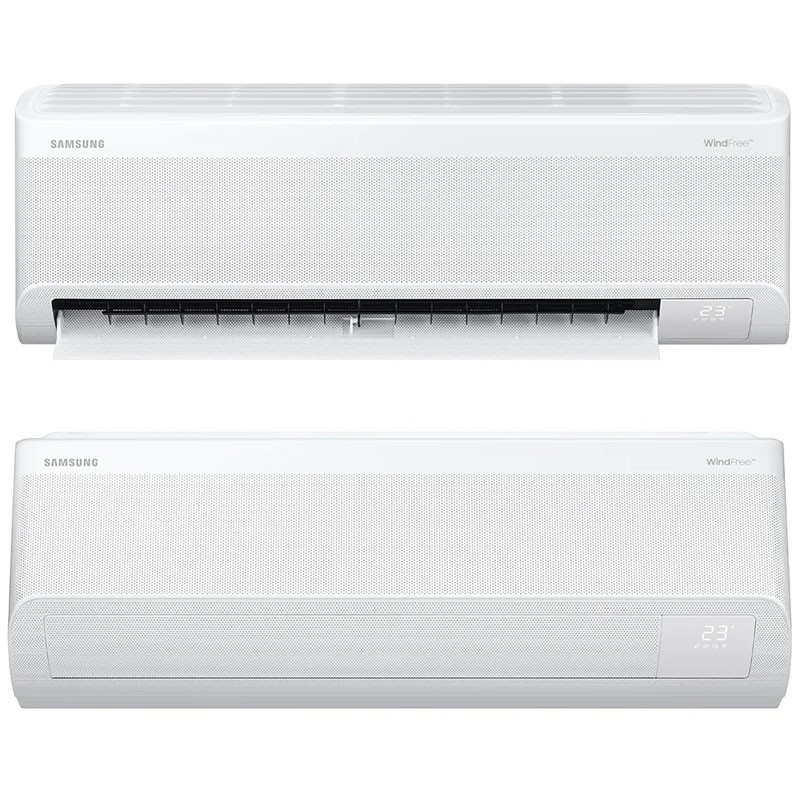

Samsung WindFree Avant S2 White: Maximum Comfort
The WindFree™ technology eliminates annoying direct drafts, distributing air evenly and making the indoor unit ideal for any environment, even in delicate situations such as in the presence of children or in the bedroom.
- Rapid cooling through open flap, until the desired temperature is reached;
- The flap automatically closes and the cool air continues to spread evenly through thousands of micro-holes without direct air drafts.
WindFree Comfort
WindFree™ is the only air conditioner with 21,000 micro-holes and an air outlet speed of less than 0.15 m/s, the so-called "still air"(1), which means maximum comfort without direct air drafts and high silence.
Dry Comfort
With the WindFree™ range, thanks to the included humidity sensor, it is possible to activate the new Dry Comfort mode. The Dry Comfort mode of WindFree™, unlike traditional dehumidification modes, can dehumidify by intervening minimally on the room temperature and saving up to 30% of energy consumption.
WindFree Connectivity with SmartThings
With SmartThings, you can easily manage all your compatible Wi-Fi devices, including air conditioners and heat pumps, through a single free app. This ecosystem optimizes the comfort of your home, integrating automation, security, and energy savings.
AI Auto Cooling
AI Auto Cooling is an intelligent function capable of analyzing room conditions and usage history to set the ideal cooling mode, completely autonomously.
AI Energy Function
AI Energy is a function that uses artificial intelligence to optimize energy consumption, activatable to not exceed the desired maximum energy costs, thus efficiently managing usage and consumption.
Welcome Cooling/Away Mode
Welcome Cooling is a function that allows the user to turn on the air conditioner when near the home and, in case of forgetfulness, to turn it off remotely (Away Mode).
Maximum Efficiency of the Monosplit WindFree
AI Twin Rotary
The new AI Twin Rotary compressor is equipped with two rotors capable of rotating in two opposite directions to reduce noise and increase efficiency.
Energy Efficiency A+++
With an energy class up to A+++/A++, the Monosplit range achieves the highest energy efficiency class, both in cooling and heating.
Next-Generation Filtration of the Samsung WindFree
The Freeze Wash function freezes the heat exchanger, melts the frost with an air flow that removes dirt and up to 90% of microorganisms, and finally dries the residual moisture. Additionally, the Tri-Care Filter and Easy Filter Plus eliminate viruses, dust, and allergens, ensuring optimal air quality. The Auto Clean Function, on the other hand, prevents moisture formation inside the unit, thus avoiding bacteria and bad odors.
Strengths of the Samsung Monosplit
- WindFree Comfort
- Dry Comfort
- AI Auto Cooling
- AI Energy
- Voice Control
- Tri-Care Filter
- Easy Filter Plus
- Auto Clean and Freeze Wash Function
- Indoor Unit Silence 16 dBA
- AI Twin Rotary Compressor
- Solarcell Remote Control
- Easy Installation and Maintenance
Technical Specifications Samsung WindFree Avant S2
Cooling
| Feature | Detail |
|---|---|
| Capacity (Min/Max) | 1 ~ 4.6 kW |
| Theoretical Thermal Capacity (Pdesignc) | 3.5 kW |
| Nominal Power Consumption | 0.91W |
| SEER: Seasonal Energy Efficiency Ratio | 8.6 |
| Seasonal Energy Efficiency Class | A+++ |
| EER | 3.85 |
| Indicative Annual Energy Consumption (Qce) | 142 kWh/a |
Heating (Medium Season)
| Feature | Detail |
|---|---|
| Capacity (Min/Max) | 0.7 ~ 7.2 kW |
| Theoretical thermal load (Pdesignh) | 2.4 kW |
| Standard absorption | 1.07 |
| SCOP: Seasonal energy efficiency | 4.8 |
| Seasonal energy efficiency class | A++ |
| COP | 3.74 |
| Indicative annual energy consumption (Qhe) | 700 kWh/a |

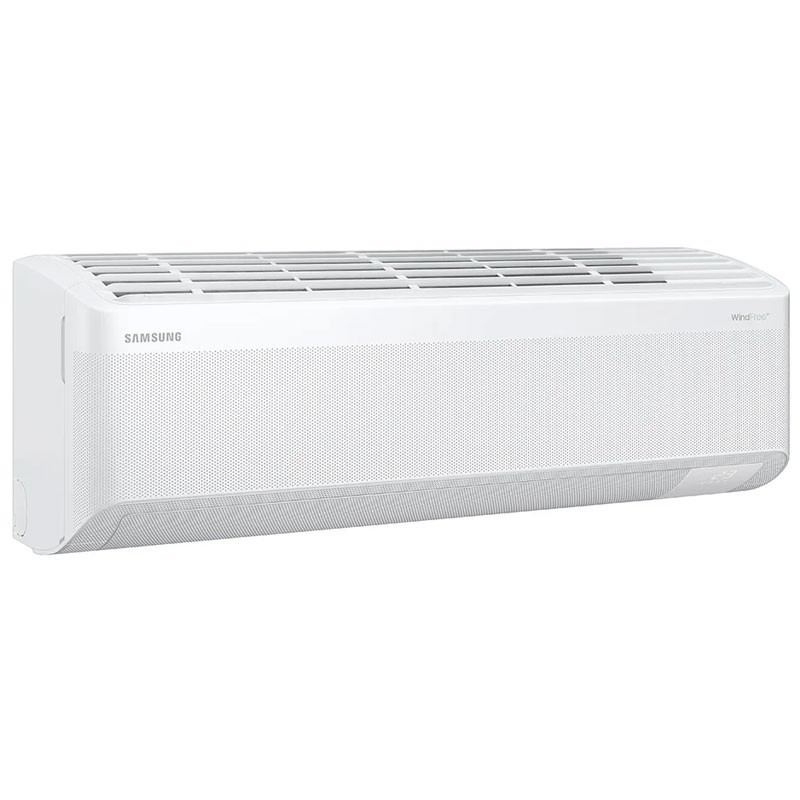

Indoor Unit
| Feature | Detail |
|---|---|
| Compatibility with FJM | Yes |
| Dimensions (WxHxD) | 889x299x215 mm |
| Weight | 9.9 Kg |
| Treated air (Max) | 10.5 m3 /min |
| Dehumidification capacity | 1.4 l/hr |
| Sound Pressure Level (Min~Max) | 16/40 dBA |
| Sound Power Level | 58 dBA |
| Blade movement | Automatic (horizontal/vertical) |

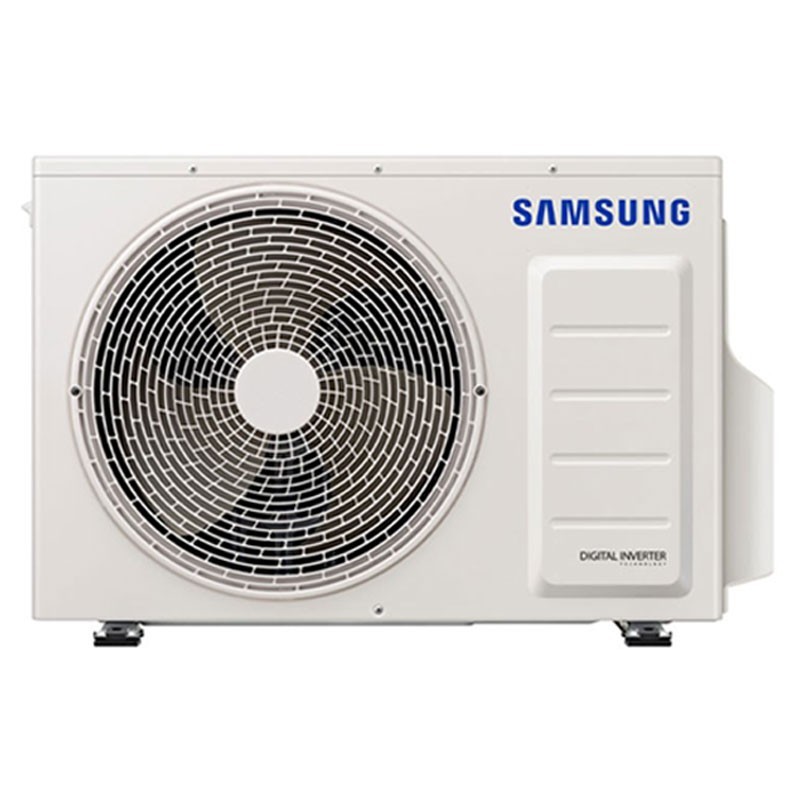

Outdoor Unit
| Feature | Detail |
|---|---|
| Dimensions (WxHxD) | 790x548x285 mm |
| Material | Metal |
| Weight | 30.7 Kg |
| Sound Pressure Level | 46 dBA |
| Sound Power Level | 62 dBA |
| Power supply (Ø, V, Hz) | Single-phase, 220-240 V, 50 Hz |
| Operating Range (Cooling) | -10~46°C |
| Operating Range (Heating) | -15~24°C |
Installation Data
| Feature | Detail |
|---|---|
| Liquid/Gas Piping Ø | 6.35 (1/4”) / 9.52 (3/8”) |
| Piping length (Max/Min) | 20/3 m |
| Max height difference (Indoor/Outdoor Unit) | 8 m |
| Factory Precharge | 0.95 Kg |
| tCO2 value | 0.64 |
| Max Piping Length without additional refrigerant | 7.5 metres |
| Additional refrigerant charge | 15 g/m |
| Refrigerant Type | R32 |
| GWP (Global Warming Potential) | 675 |
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- System: Monosplit
- WIFI: Integrated
- Room Size: 35m²
- Energy class: A++
- Series: WindFree
