Samsung Windfree Cassette Air Conditioner 36000BTU 10kW single-phase
KIT SMSCASS36
8801643769536
The 36000 BTU (10 kW) Samsung WindFree cassette air conditioner including R32 Gas, Energy Class A+/A, Model 90x90cm, offers effective and uniform cooling thanks to its 15,700 microholes, avoiding annoying direct air jets. With adjustable ventilation, Inverter fan and optional smart control, it ensures maximum efficiency and comfort in every room.

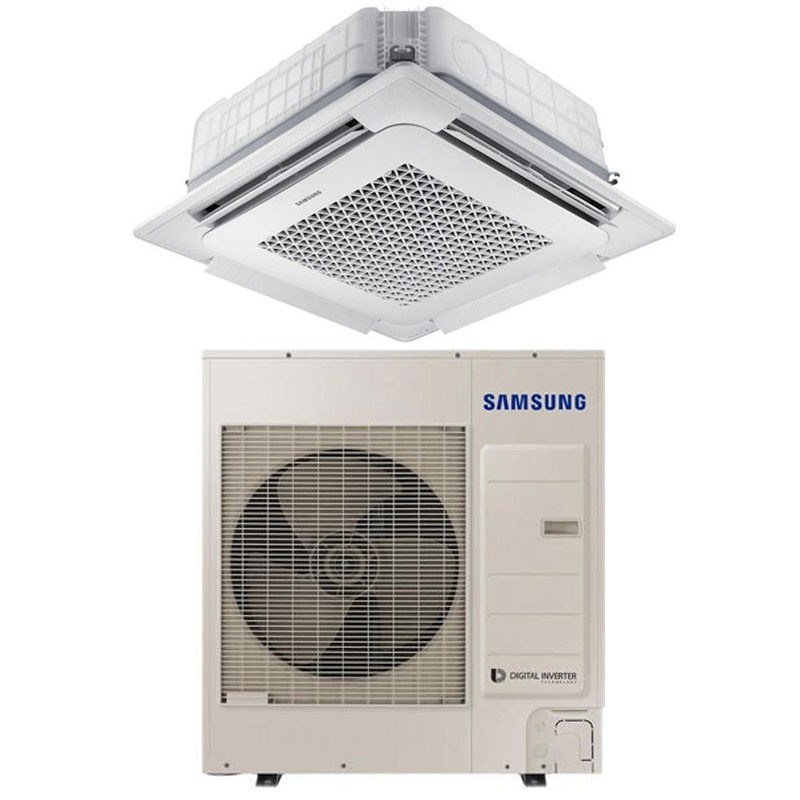

The set includes:

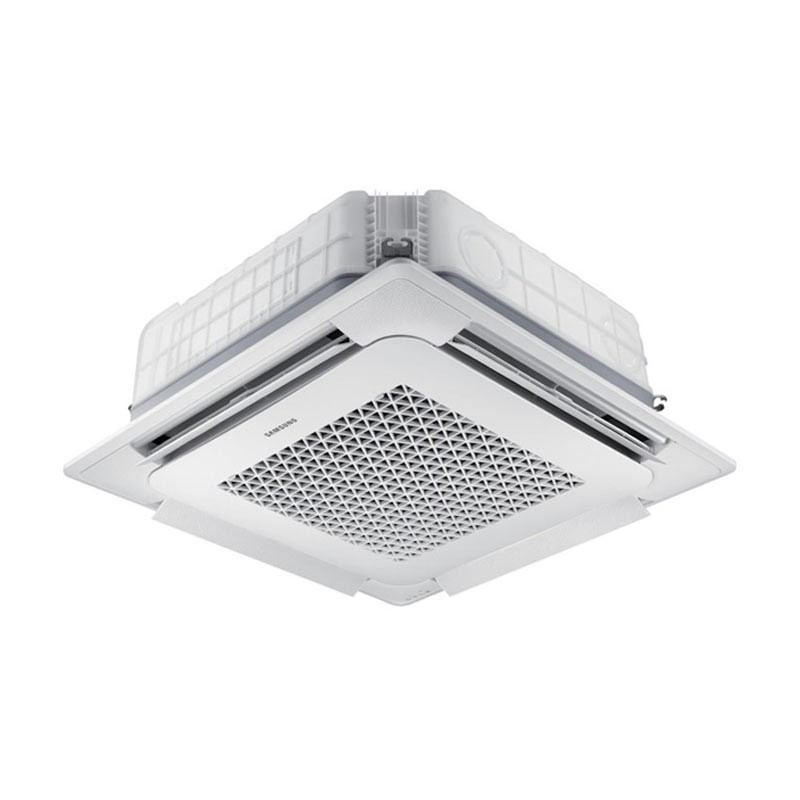

- 1 Cassette Indoor Unit 10kW 4-Way 90x90 (AC100RN4DKG/EU)

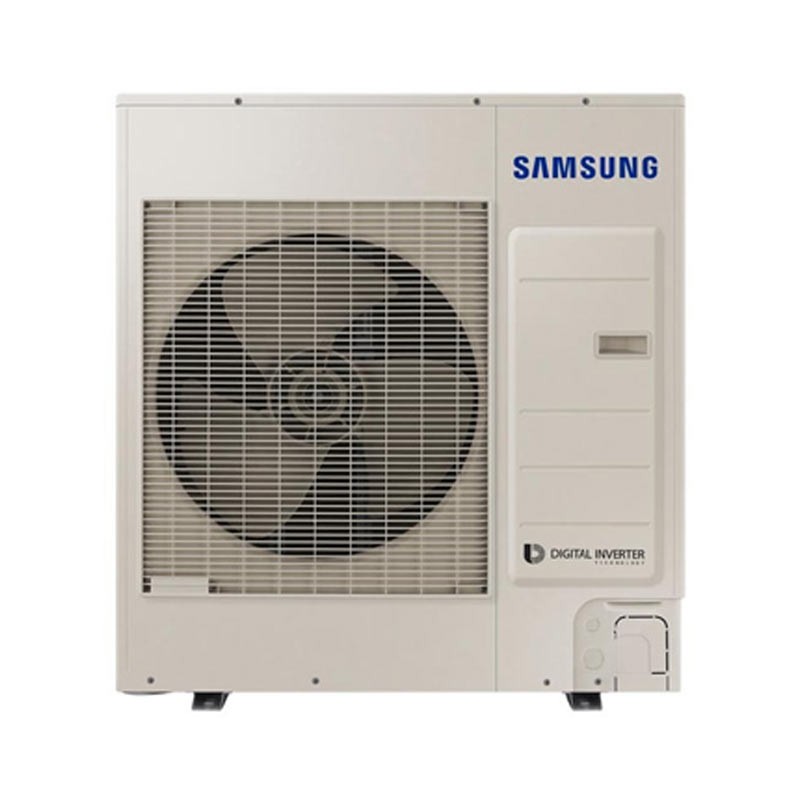

- 1 10kW Outdoor Unit (AC100RXADKG/EU)
- 1 PC4NUFMAN Panel 90x90cm
Compatible controls to be purchased separately are as follows:
- Simplified flush control MWR-SH11N
- MWR-WG00KN flush-mounted command.
- Advance wired command MWR-WG01KN
- Nasa MIM-H04EN Wi-fi kit for remote control
- Infrared Remote Control AR-EH03E
For a room of approximately 150m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€2,958.97
Items Available: 1
Air conditioners of the same series
Frequently bought together
- On sale!
Samsung Cassette: Advanced Comfort with WindFree™ Technology
WindFree™ mode distributes air naturally through 15,700 micro-holes, eliminating direct jets and reducing temperature changes. Ideal for home, office and commercial environments, it ensures even cooling with maximum discretion.
Flexible Installation and Quiet Operation
- On the side of the cassette there is a pre-cut for fresh air. In addition, on all 4 sides of the cassette, there are other pretranches for connecting an additional duct to cool/heat the adjacent room. Each fin can be easily removed for easy cleaning without completely removing the grille.
- Reduced noise: The fan is sized to reduce noise and have uniform air distribution across the 4 supply fins.
Single fin control
Samsung's 4-Way Cassette allows users to change, using the control, the angle of each individual fin (between 32° and 75°)* to ensure proper room comfort.
360° air distribution
With additional deflectors at the ends of each individual fin, it is possible to have 360° air distribution for perfect room coverage.
Non-return valve included
The check valve in the drain pump prevents condensate from returning to the drip pan. In this way, the water level in the tray is kept under control, preventing stagnant water.
Condensate drain pump
The built-in drain pump allows condensate to be lifted up to 750 mm.
Fast set-up
The air distribution of Samsung cassettes enables fast temperature set-up compared with conventional models.
WI-FI control kit (MIM-H04EN optional)
The unique Smart Control technology is designed to control and manage the air conditioner, in all major functions, even remotely, wherever you are, thanks to your mobile device. It is ideal for those who are away from home and want to schedule it to turn on before they return to enjoy instant coolness.
Summary key features of the Samsung Windfree Cassette
- WindFree™ technology with 15,700 microholes
- Adjustable fin angle: 34° - 68°
- Inverter motor
- Humidity sensor
- Pre-cut for outside air inlet and secondary ducts
- Integrated condensate drainage pump (750 mmH₂O)
- Low noise level
- Wi-Fi kit for remote control: Optional (MIM-H04EN)
- Dimensions: 90x90 cm Refrigerant gas: R32
Safety and Air Quality of the Windfree Cassette
SPi Air Purifier thoroughly purifies the air you breathe
Operation
The active hydrogen atoms and oxygen ions generated adhere to the surface of the harmful particle, which decomposes and turns into water that disperses into the environment.
Pure Air
The SPi Air Purifi er device generates active hydrogen atoms and oxygen ions to thoroughly purify the air and make the environment comfortable. Effective against: Viruses and bacteria, Dust and mold, Allergens.
Technical Specifications of the Windfree Cassette
Cooling
| Feature | Value |
|---|---|
| Std Capacity (Min~Max) | 10.00 (3.00~12.00) kW |
| Absorption Std (Min~Max) | 3.42 (0.60~4.70) kW |
| SEER: Seasonal Energy Efficiency | 7,0 |
| Seasonal energy efficiency class | A++ |
Heating
| Feature | Value |
|---|---|
| Std Capacity (Min~Max) | 11.20 (2.20~15.50) kW |
| Absorption Std (Min~Max) | 3.10 (0.46~5.40) kW |
| SCOP: Seasonal Energy Efficiency | 4,3 |
| Seasonal energy efficiency class | A+ |
| Theoretical heat load (Pdesignh) | 5.3 kW |
Indoor Unit
| Feature | Value |
|---|---|
| Dimensions (WxHxD) | 840x288x840 mm |
| Panel Dimensions (WxHxD) | 950x48x950 mm |
| Weight | 18 Kg |
| Panel Weight | 6.3 Kg |
| Treated air (max) | 31 m³/min |
| Sound Power Level (Heating) | 61 dB(A) |
Outdoor Unit
| Feature | Value |
|---|---|
| Dimensions (WxHxD) | 940x998x330 mm |
| Weight | 75 Kg |
| Sound Power Level | 69 dB(A) |
| Power supply Ø, V, Hz | 1, 220-240, 50 |
| Operating Range (Cooling) | -15~50 °C |
| Operating range (Heating) | -20~24 °C |
| Liquid piping Ømm (inch) | 9.52 (3/8") |
| Gas piping Ømm (inch) | 15.88 (5/8") |
| Max piping length | 50 m |
| Max height difference (U. Internal/U. External) | 30 m |
| Max piping length without addition of refrigerant | 30 m |
| Refrigerant Type | R32 |
| GWP: global warming potential of the refrigerant used | 675 |
| Factory precharge | 2.7 Kg |
| Tons CO2 equivalent | 1.82 tCO2e |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 36000 BTU (10 Kw)
- Room Size: 150m²
- Energy class: A++
- Series: WindFree
