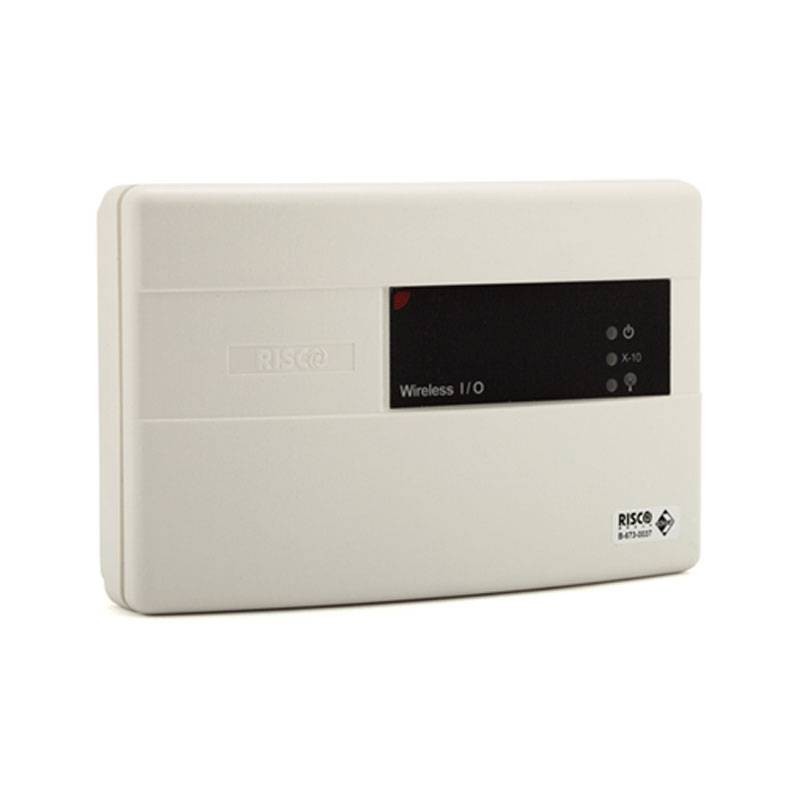

Risco 4 input 4 output module with X10 interface RW13132I04000A
RSK RW132I04000A
8791960010810
Risco RW132I04000A wireless expansion module with 4 inputs and 4 outputs compatible with X10, you can expand your Agility control panel with home automation functions and advanced device control via dry contact or X10.
-
4 configurable inputs NO, NC, EOL
-
4 outputs: 2 relays 3A + 2 relays 500mA
-
Up to 16 X-10 outputs for home automations
-
Wireless connection to Agility control panel
-
Transformer with built-in rechargeable battery
-
Operation from -10°C to +40°C
€102.49
Items Available: 5
Risco module RW132I04000A: Home automation and security in one module
Risco's RW132I04000A module is the ideal choice for those who wish to integrate home automation functions with security systems. Compatible with the Agility control panel, this module allows you to control electronic devices via X10 protocol or relay outputs, offering maximum versatility and control.
Flexible expansion for your system
Equipped with 4 configurable inputs (NO, NC, EOL), the module allows you to integrate additional sensors, such as magnetic contacts or sensing devices. The 4 outputs (2 3A relays and 2 500 mA relays) can be used to activate lights, sirens or other electrical devices, while the 16 X-10 outputs expand home automation possibilities over power lines.
Wireless connection and easy installation
Communication between the module and the control unit takes place wirelessly, greatly simplifying installation and reducing wiring. Connections to accessories, on the other hand, take place via cable, ensuring stability and compatibility with devices already in the system.
Ready-to-use with autonomous power supply
The RW132I04000A module includes a dedicated transformer and rechargeable battery backup, ensuring operability even during power outages. It also comes with X10 adapter for quick integration with existing home automation systems.
Technical specifications of the Risco Module
| Feature | Detail |
|---|---|
| Compatibility | Agility™ all versions |
| Control panel connection | Wireless |
| Connection to peripheral devices | Wired |
| Inputs | 4 inputs (NO, NC, EOL) |
| Relay outputs | 2 relay outputs (3A), 2 relay outputs 500mA |
| Home automation outputs | 16 outputs X-10 |
| Module type | External module, NFA2P |
| Power supply | 14.4VDC/0.5A minimum or 9VAC/0.5A minimum |
| X-10 adapter | Included |
| Transformer | Local with secondary rechargeable battery |
| Operating temperature range | -10°C to 40°C |
| Dimensions | 14.5 cm x 9 cm x 4 cm |
There are no reviews
Data sheet
- Type: Expansion modules
- System: Wireless
