Ajax EN54 I/O 2X2 Jeweller wireless module 2 inputs and 2 outputs 124591
08T 124591
4823114070617
Ajax wireless module EN54 I/O Module (2X2) Jeweller 124591: integrates third-party wired devices into an EN54 certified Ajax fire system, with 2 supervised inputs and 2 isolated relay outputs for automation and emergency commands.
-
2 inputs + 2 relay outputs for integration and automation in fire & life safety
-
Supports NC/NO/EOL/2EOL/3EOL wiring for maximum compatibility
-
Relay with clean contacts and Fail-safe mode for automatic activations in case of fault/offline
-
Radio range up to 1,700 m (open field) with Jeweller protocol
-
Radio range up to 1,700 m (open field) with Jeweller protocol
-
Fire system certifications: EN54-18 / EN54-25
-
Compatibility: EN54 Fire Hub / EN54 Fire ReX.
€98.33
Items Available: 1
EN54 I/O Module for integrating wired devices into Ajax systems
Ajax EN54 I/O Module (2X2) Jeweller is designed for those who need to connect traditional or specialized equipment to the Ajax fire system: manual call points, magnetic contacts, technical sensors, elevator panels, HVAC, or other wired devices with a clean contact. Thanks to the two configurable inputs, you can transform a wired signal into an event managed by the control panel (CIE), with clear notifications and zone traceability.
2 supervised inputs: total compatibility (NC/NO + multiple EOL)
The module supports various connection types (NC, NO, EOL, 2EOL, 3EOL), allowing you to meet installation requirements and typical line supervision in fire contexts. The management of EOL resistors allows for the detection of conditions such as interruption or short circuit (depending on configuration), reducing uncertainties during testing and maintenance.
2 isolated relay outputs for automation and emergency commands
The two outputs are relays with clean contacts (galvanically isolated) for controlling loads and interfaces: fire door release, access unlocking, emergency light activation, ventilation/damper consent, or auxiliary signaling. Additionally, the Fail-safe mode function can automatically activate connected devices in case of failure, low battery, or communication loss, increasing the resilience of the emergency logic.

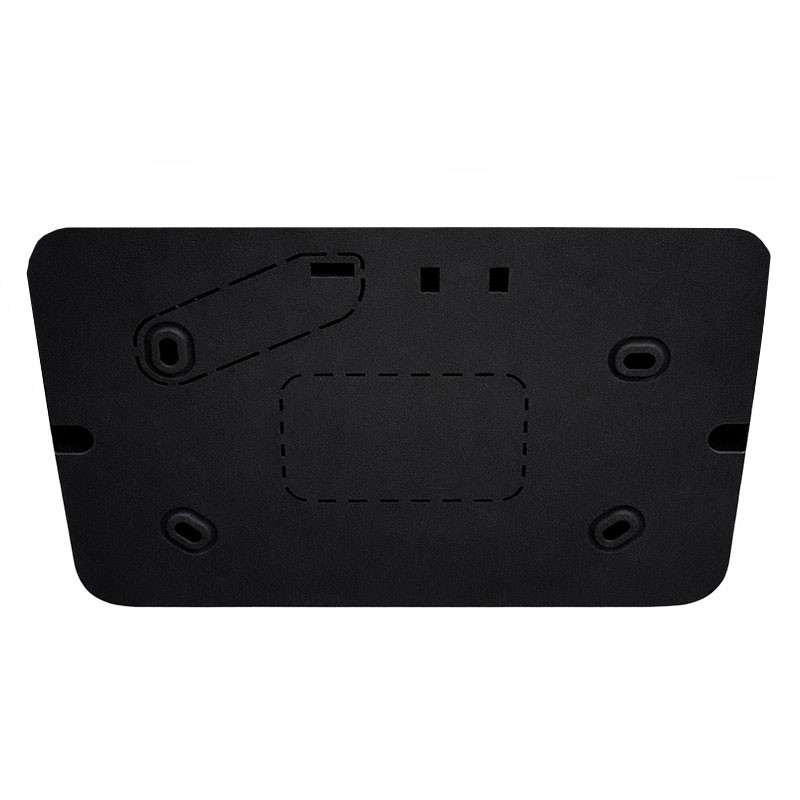

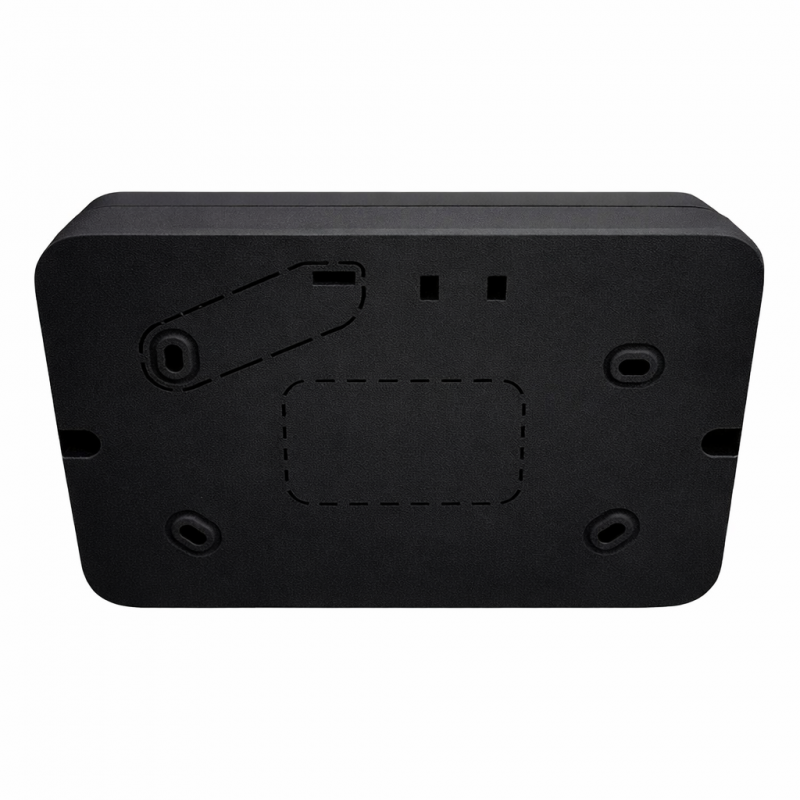

Neat installation and simplified maintenance
Designed for indoor installations, the module operates on battery (no external power supply) and communicates via Jeweller with EN54 Fire Hub / Fire ReX, offering quick configuration via the Ajax app and signal strength testing to choose the best placement.
| COMMUNICATION | |
|---|---|
| Communication technology | Jeweller |
| Technology description | Proprietary wireless technology for transmitting commands, alarms, and events |
| Main features | Bidirectional communication; Advanced anti-tampering protection; Block encryption with a mobile key; Instant notifications; Remote control and configuration via Ajax app |
| Operating frequencies | 866.0–866.5 MHz; 868.0–868.6 MHz; 868.7–869.2 MHz; 905.0–926.5 MHz; 915.85–926.5 MHz; 921.0–922.0 MHz (depending on the region) |
| Max effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Radio communication range | up to 1,700 m (in open field) |
| Encrypted communication | Block encryption with a mobile key |
| Frequency hopping | Yes, to avoid radio interference and signal jamming |
| INPUTS | |
| Number of input lines for third parties | 2 |

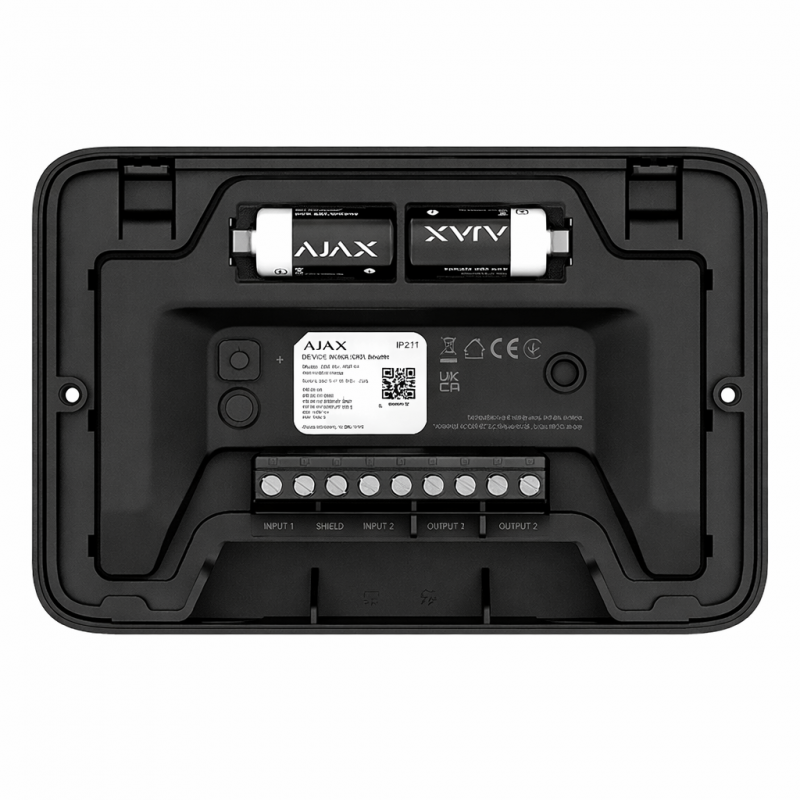

| Input terminals | Input 1, Input 2: inputs for third-party wired devices; Shield: common input for cable shields |
| Connection type | NO, NC, EOL, 2EOL, 3EOL |
| Supported EOL resistors | 0.47 kΩ · 1.2 kΩ · 2.7 kΩ · 6.2 kΩ |
| Included resistors | 4 resistors for each input |
| Max wired connection length | up to 100 m (fire-resistant cable 2×1.5 mm²) |
| Supported cable section | 0.4–2.5 mm² (21–13 AWG) |
| OUTPUTS | |
| Number of output lines for third parties | 2 |
| Output terminals | Output 1, Output 2 (relay outputs) |
| AC operating range | 10–250 V~ · 5 mA – 10 A (resistive load) |
| DC operating range | 10–30 V? · 5 mA – 5 A (resistive load) |
| Supported cable section | 0.4–2.5 mm² (21–13 AWG) |
| MAIN FEATURES | |
| Event types | Configurable via Ajax app based on connected inputs |
| Automatic safety mode | Automatically activates connected devices in case of offline, low battery, or hardware failures |
| INSTALLATION RECOMMENDATIONS | |
| Usage environment | Indoor environments only |
| ANTI-TAMPERING PROTECTION | |
| Tamper alarm | Notification in case of detachment or opening of the cover |
| Protection against counterfeiting | Device authentication |
| Connection loss detection | Dopo 36 s (depends on Jeweller settings) |
| Monitoraggio ingressi | Disconnection detection, short circuits and malfunctions (EOL / 2EOL / 3EOL) |
| POWER SUPPLY | |
| Batteries | 2 × CR123A (pre-installed) |
| Estimated battery life | up to 5 years |
| ENCLOSURE | |
| Dimensions | 116 × 180 × 62 mm |
| Weight | 547 g |
| Operating temperature | from 0 °C to +50 °C |
| Maximum permissible humidity | up to 80% |
| Protection class | IP21C |
| Flammability class | UL 94 V-0 |
| PACKAGE CONTENTS | |
| Device | EN54 I/O Module (2×2) Jeweller |
| Batteries | 2 × CR123A (pre-installed) |
| Accessories | Installation kit |
| EOL Resistors | 2 × set of 4 resistors |
| Documentation | Quick guide |
