Siemens SIRIUS signaling switch for 3RV2 1 NO and NC contact 3RV29211M

Siemens
Siemens
SIE 3RV29211M 4011209737143

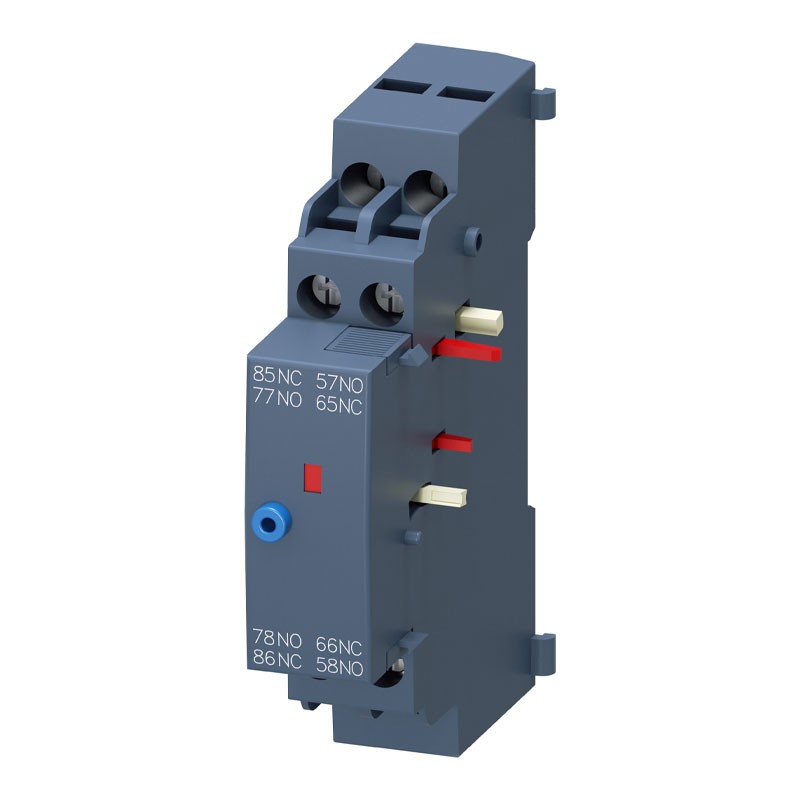

Signaling module for Siemens 3RV2 series circuit breakers, compatible with sizes S00, S0, S2 and S3. With 1 normally open and 1 normally closed contact, connection via screw terminals, with the following features:

  • Compatible with circuit breakers: 3RV2 S00, S0, S2, S3

  • Contact configuration: 1 NO + 1 NC

  • Insulation voltage: 690 V

  • Max current AC-12: 10 A

  • Degree of protection: IP20

  • Signaling: Separate trip and short circuit

  • Connection via: Screw terminals

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens SIRIUS signaling switch for 3RV2 1 NO and NC contact 3RV29211M
€19.26
€19.26

€19.26
Tax included
Calculate shipping cost
Items Available: 41
Further availability of the manufacturer
€19.26

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Siemens circuit breaker combinations:

Siemens switch reliable solution for electrical signaling

The SIRIUS auxiliary contact block for 3RV2 is designed to provide accurate and separate trip and short-circuit signaling in motor protection systems. The configuration with 1 normally open (NO) and 1 normally closed (NC) contact enables clear and reliable management of device status.

Guaranteed compatibility and safety

Suitable for circuit breakers of sizes S00, S0, S2, S3, this block has screw terminals for stable and secure electrical connection. Certified according to IEC 60947-5-1 and IEC 60529, with IP20 rating on the front side, it ensures protection against accidental contact and ease of installation.

High electrical performance

Supports voltages up to 690 V and currents up to 10 A (AC-12), with high pulse resistance (6 kV). Suitable for applications in pollution degree 3 environments, it offers reliable performance even under demanding conditions.

Technical Specifications Siemens 3RV2 Switch

Compatible Model 3RV2 circuit breakers (S00, S0, S2, S3)
Contact configuration 1 NO + 1 NC
Mounting Snap-in
Connection Screw terminals
Supported cable cross-sections Rigid/flexible: 0.5 to 2.5 mm²
AWG: 18 to 14
Rated insulation voltage 690 V
Max current AC-12 10 A
Max current AC-15 (230V) 4 A
Max current DC-13 (24V) 2 A
Degree of protection IP20
Operating temperature -20 ÷ +60 °C
Certifications CE, UL, CSA, CCC - RoHS compliant

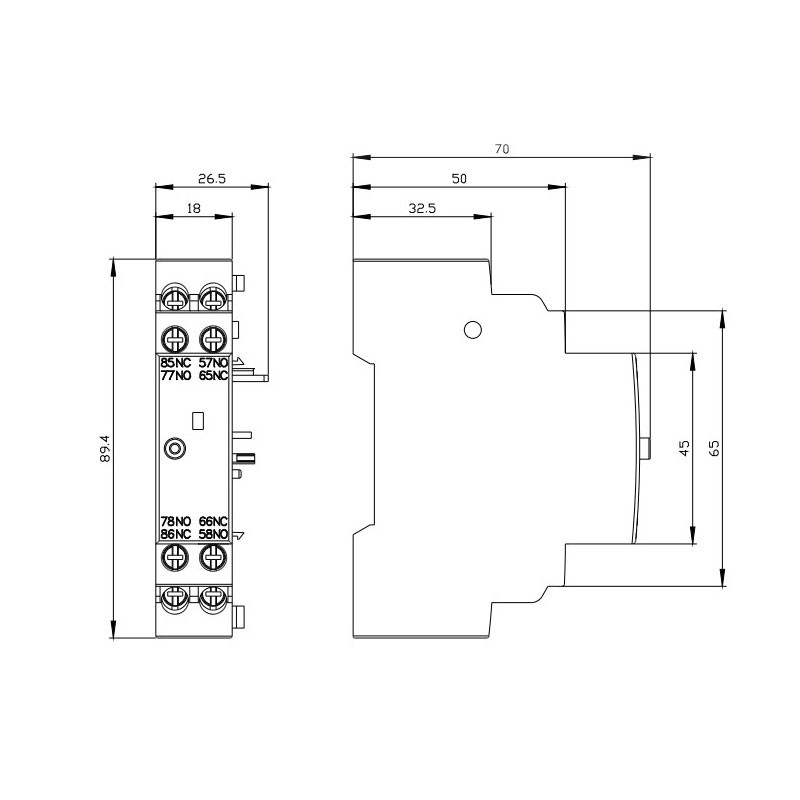

Dimensions 90 x 18 x 68 mm
