Siemens Circuit Breaker 50A 4P 10KA D 4 Modules 5SL44508
SIE 5SL44508
4001869441849
Siemens Sentron circuit breaker:
- 50A operating current
- Poles 4
- Breaking capacity 10KA
- Class D
- 4 Modules
- Insulation voltage 440V
- Voltage type of AC usage voltage
€109.81
Items Available: 10
Features:
- Overvoltage category III
- Pollution degree 2
- Usage voltage type AC

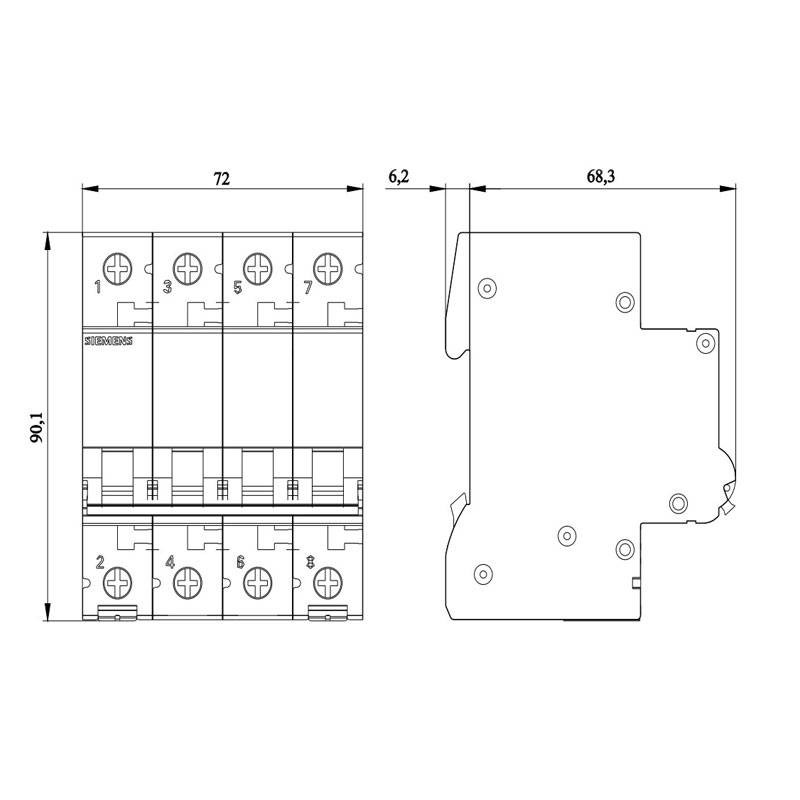

- Height 90 mm
- Width 72 mm
- Depth 76 mm
- Recessed depth 70 mm
- Number of modular units of width 4
- Any mounting position
- Net weight 649 g
- Ambient temperature during operation min. -25 °C max. 55 °C
- Ambient temperature during storage min. -40 °C - max. 75 °C
- Connectable conductor cross section rigid wire min. 0.75 mm² max. 25 mm²
- Connectable conductor cross section multiwire min. 0.75 mm² max. 25 mm².
There are no reviews
Data sheet
- Voltage: 440V
- Modules: 4
- Poles: 4P
- Curve: D
- Breaking capacity: 10KA
- Degree of protection: IP20
- Amps: 50A
- Circuit Protections: Circuit breakers
