Siemens Circuit Breaker 50A 3P 6kA 400V C 3M 5SL63507BB

Siemens
Siemens
SIE 5SL63507BB 4001869388816

Siemens circuit breaker reliable and compact three-phase protection for industrial and tertiary installations, with the following features:

  • Rated current: 50 Amps

  • Number of poles: 3P

  • Breaking capacity: 6 kA

  • Operating voltage: 400 V AC three-phase

  • Curve: C

  • Number of Modules: 3

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens Circuit Breaker 50A 3P 6kA 400V C 3M 5SL63507BB
€51.74
€51.74

€51.74
Tax included
Calculate shipping cost
Items Available: 9
Further availability of the manufacturer
€51.74

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Siemens circuit breaker Safety and reliability

The Siemens 50 A 3-pole magnetothermal circuit breaker offers robust and efficient protection for three-phase distribution systems. Designed for industrial and tertiary environments, this device from the SENTRON line is distinguished by reliability, ease of installation and high performance even under severe conditions.

C curve and 6 kA breaking capacity

With a C-curve tripping curve, this circuit breaker can withstand inrush currents up to 5-10 times the rated current, making it ideal for circuits with slightly inductive loads, such as motors or transformers. The breaking capacity of 6 kA ensures effective protection against short circuits even in systems with high fault energy.

Compatibility and versatility

Operating up to 440V three-phase AC and 62.5V DC per pole, this circuit breaker is compatible with a wide range of applications. It is designed for systems up to overvoltage category III, with pollution degree 2, making it suitable even for non-residential technical environments.

Compact design and durable materials

3 Modules, easily integrated into standard electrical panels. It is halogen-free and silicone-free, making it suitable even in settings where higher safety standards are required in case of fire. In addition, the structure is plumbable, increasing the level of security against tampering.

Simple and safe installation

Screw terminals allow the connection of rigid, flexible and multiwire conductors up to 25 sq. mm² with a tightening torque between 2.5 and 3 Nm. This ensures a stable and secure connection. The IP20 (when conductors are connected) rating protects against accidental contact, enhancing safety during use.

Application fields

Siemens circuit breaker is ideal for:

  • Electrical distribution in industrial environments

  • Tertiary and commercial installations

  • Protection of three-phase lines and subsystems

  • Machinery and control panels

  • Applications where high selectivity and short-circuit protection are needed

Siemens Sentron Circuit Breaker Technical Specifications

Technical Data

Feature Value
Number of poles 3P
Rated current (In) 50 A
Tripping curve C
Breaking capacity (Icn) 6 kA
Rated AC voltage 400 V
Maximum AC voltage (multiphase) 440 V
Max DC voltage 62.5 V per pole
Limitation class 3
Overvoltage class III
Pollution degree 2
Degree of protection IP20
Thermal dissipation (per pole) 3,3 W
Material Halogen-free, silicone-free
Conductor cross-section 0.75 to 25 mm² (rigid, flexible, multiwire)
Terminal tightening torque 2.5 to 3 N-m

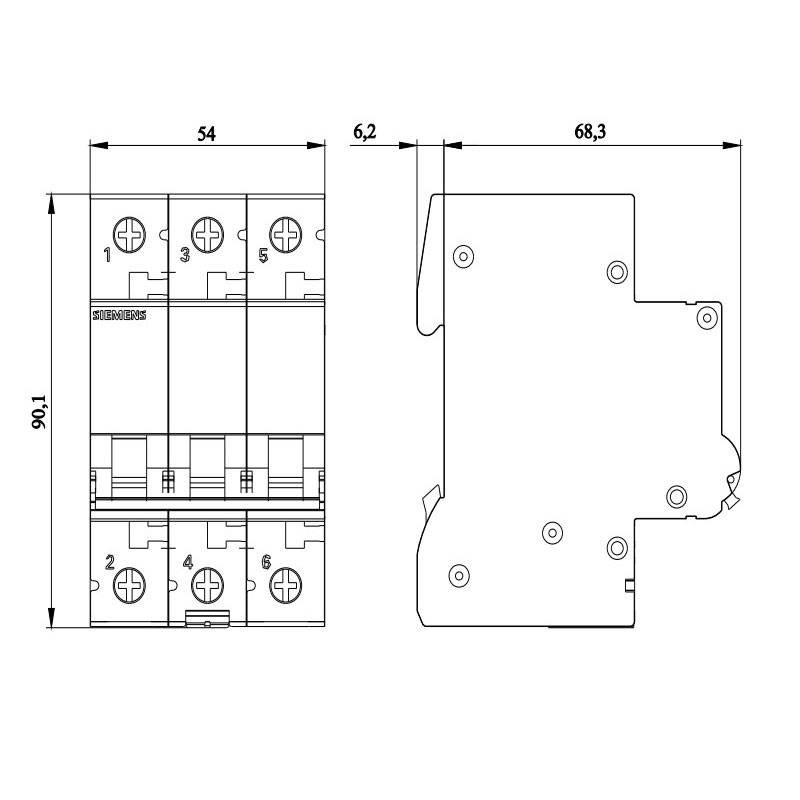

Dimensions (HxWxD) 90 x 54 x 76 mm
Ambient temperature -25°C to +45°C

There are no reviews

Data sheet

Voltage:
400VAC
Modules:
3
Poles:
3P
Curve:
C
Breaking capacity:
6KA
Degree of protection:
IP20
Amps:
50A
Circuit Protections:
Circuit breakers
Contact details of the manufacturer and the responsible person
