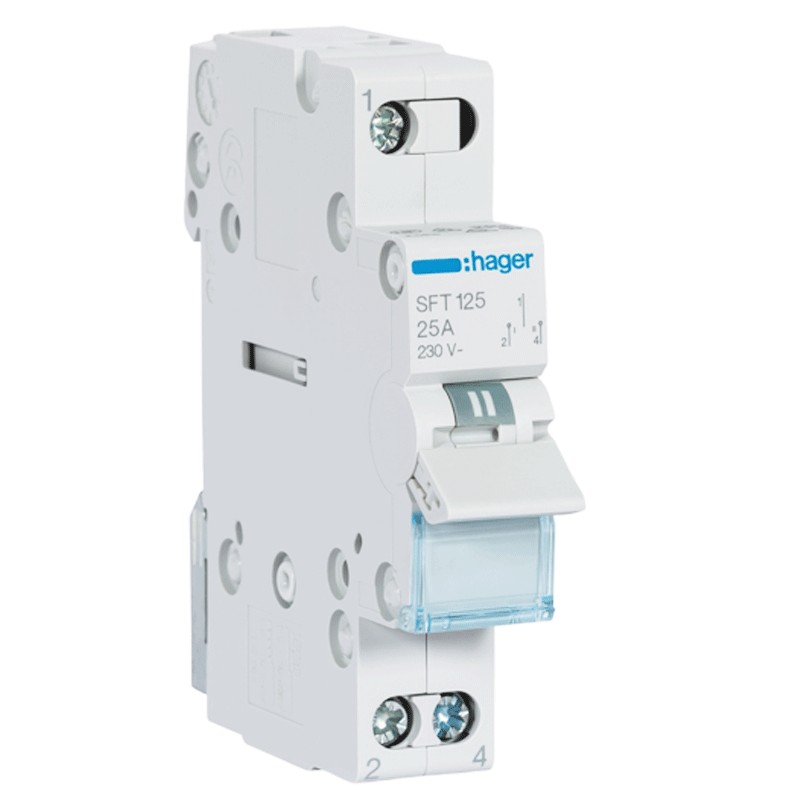

Hager switch 1-0-2 1 pole 25A 1 module SFT125
HAG SFT125
3250615510747
Hager 1-0-2 switch, with the following features:
- 1 pole
- Type of contacts 1 NO+1 NC
- Nominal operating voltage 230 Vac
- Rated frequency 50/60 Hz
- Rated insulation voltage 440 Vac
- Nominal current in 25A
- Input voltage type 1 AC
- Rated fault withstand current 4000 V
- Total power dissipation 0.9 W
- Power dissipation per pole 0.9 W
€15.64
Items Available: 56
: 9
Features:
- Hager series
- Number of operations (mechanical life) 200000
- Depth 70 mm
- Height 83 mm
- Width 17.5 mm
- Tightening torque 1.8 Nm
- Position of the misaligned terminals
- Screw connection type
- Degree of protection of the housing IP20
- Operating temperature -20...50 °C
- Pollution degree 2
- Altitude 2000m
- Storage/transport temperature -40...80 °C
There are no reviews
Data sheet
- Type: Commutators
