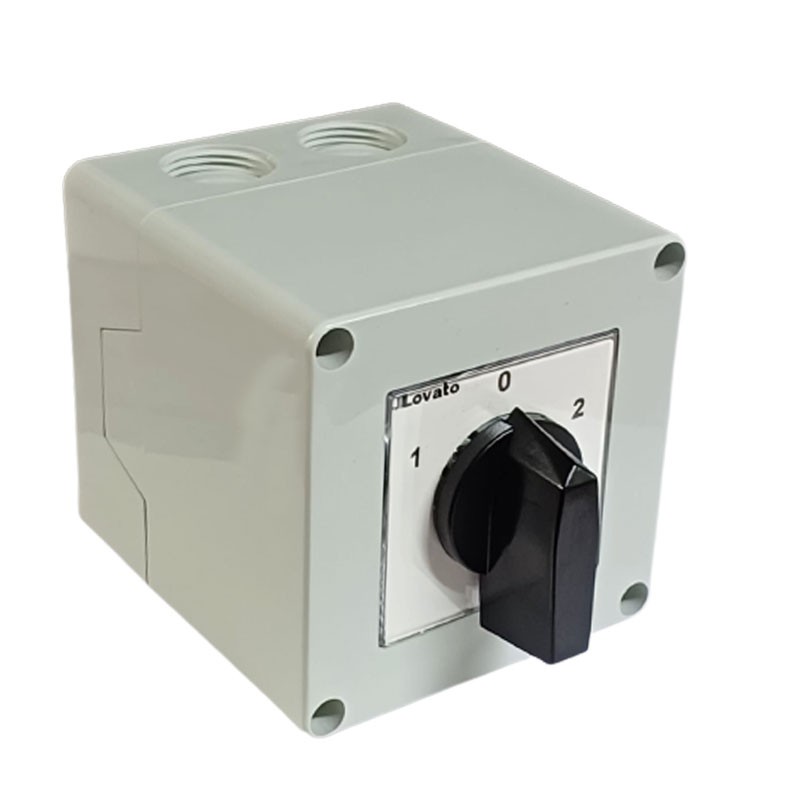

Lovato line switch with knob 4P 20A in box 7GN2075P


LOV 7GN2075P 3850144007178

Lovato four-pole line switch with black handle, with the following features:

  • Number of poles: 4
  • Rated insulation voltage: IEC/EN 690V - UL/CSA 600V
  • Rated impulse withstand voltage (Uimp): Kv 6
  • Conventional free air thermal current Ith: 20A
  • Rated operating voltage: 480V
  • Rated impulse withstand voltage_ Kv 4
  • Conductivity: 10/5 mA/V
  • Rated short-time withstand current Icw: 1s A 250
  • Power dissipation: 0.8W
  • Screw connections: M3
  • Terminal tightening torque max_ 0.5 Nm
  • Operating temperature: -20/+55°C
  • Storage temperature: -40/+70°C
  • Front IP rating: IP40
  • Terminals degree of protection: IP00
Request info about this product

Lovato line switch with knob 4P 20A in box 7GN2075P

€36.92
€36.92

Lovato line switch with knob 4P 20A in box 7GN2075P

€36.92
Tax included
klarna Pay in installments with Klarna
qty

Lovato line switch with knob 4P 20A in box 7GN2075P

€36.92

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Switch line Lovato four-pole with knob 4P 20A in a box (dim.75x75) 7GN2075P

Data sheet

Type:
Commutators
