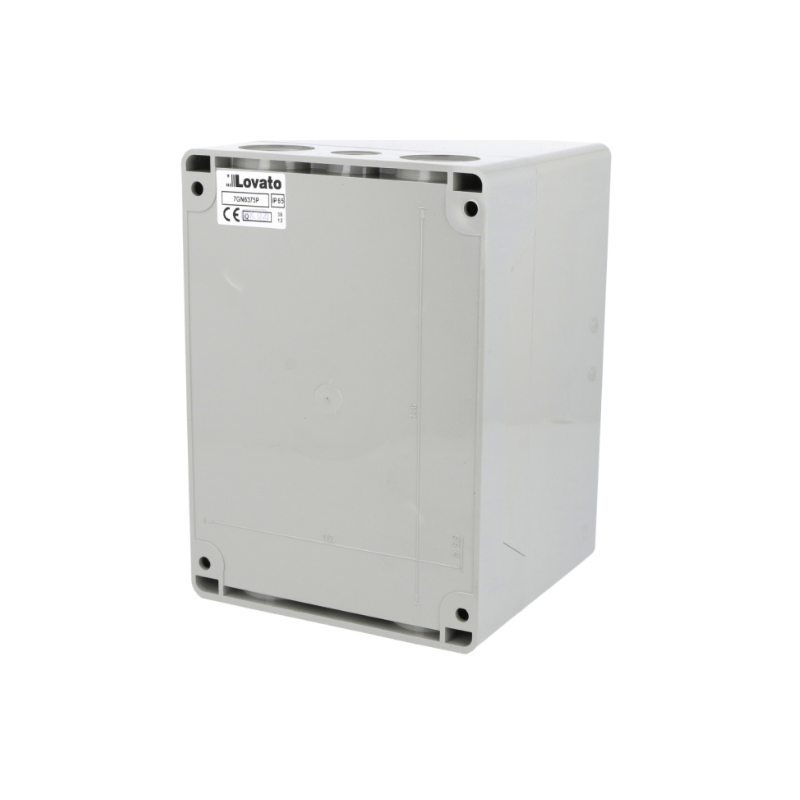

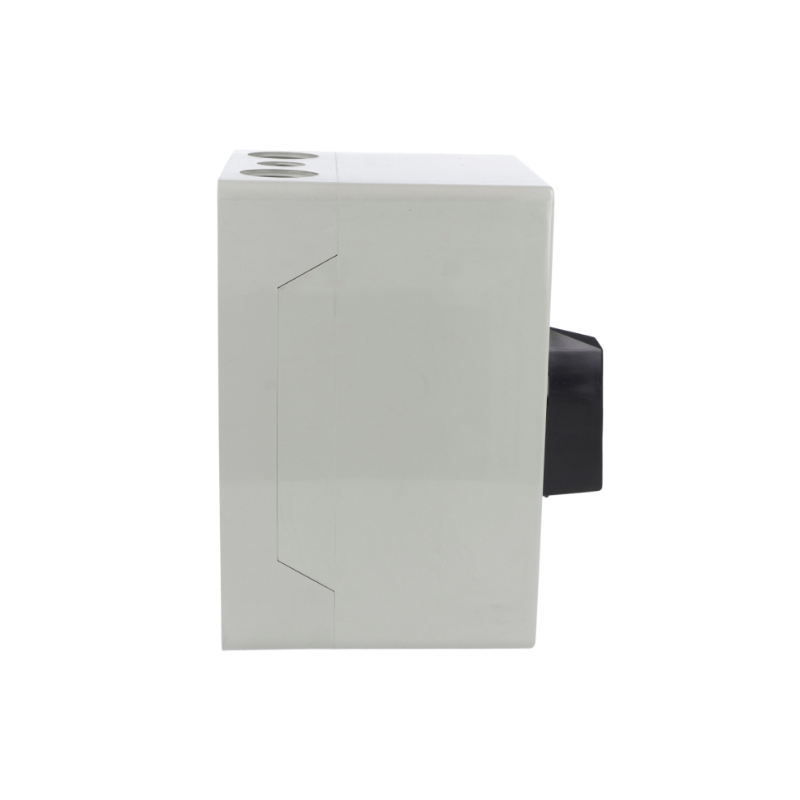

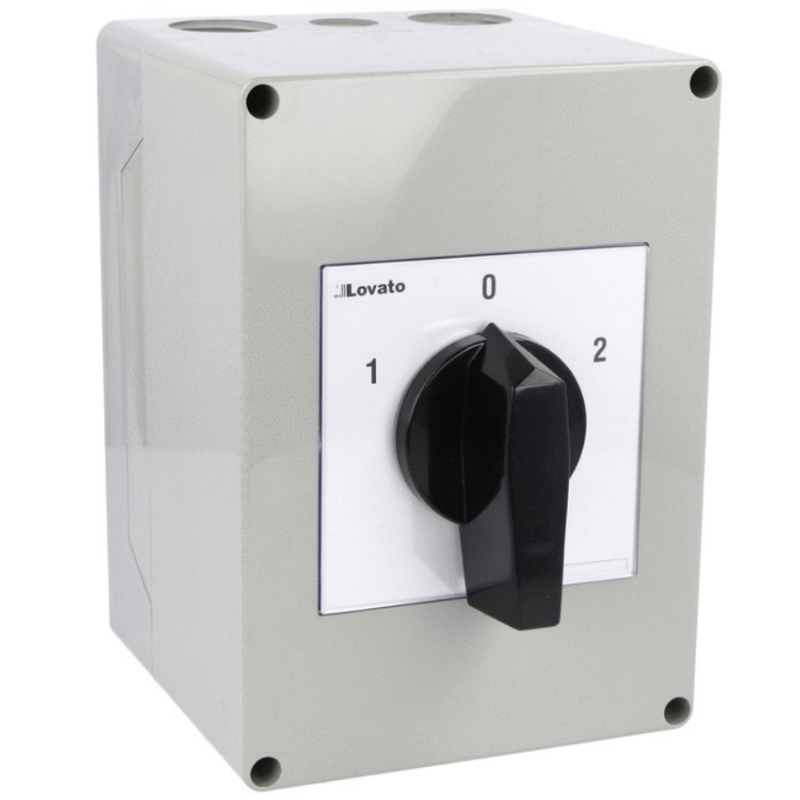

Lovato line switch with knob 4P 63A in box 7GN6375P
LOV 7GN6375P
3850144003552
Lovato 7GN series cam switch with the following features:
- 4 poles
- Rated insulation voltage: 690V
- Rated impulse withstand voltage (Uimp): kV 6
- Rated operating voltage: 480V
- Rated impulse withstand voltage: kV 4
- Rated short-time withstand current Icw: 1s 1600A
- Power dissipation: 3.4W
- Screw connections: M5
- Max terminal tightening torque: Nm 2
- Mechanical life: 5x106 cycles
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- Front IP rating: IP40
- Terminals degree of protection: IP00
€145.47
Items Available: 1
There are no reviews
Data sheet
- Type: Commutators
- Voltage: 690V
- Poles: 4P
- Degree of protection: IP40
- Amps: 63A
