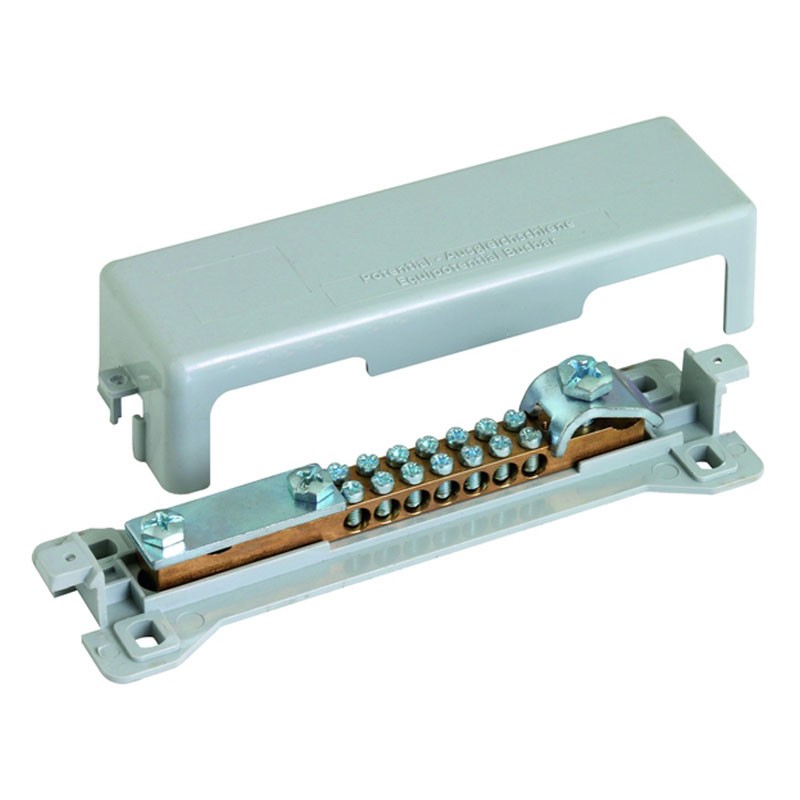

Dehn Equipotential Bar MS 7 connections 2.5-25 sq. mm Gray 563050
DEH 563050
4013364054707
Dehn equipotential bonding bar with gray cover, ideal for secure connections of conductors in grounding and lightning protection systems, with the following features:
-
7 connections for rigid or semi-rigid conductors from 2.5 to 25 sq. mm.
-
1 connection for round conductors 7-10 mm diameter
-
1 connection for flat conductor up to 30x3.5 mm or diameter 8-10 mm
-
Brass conductive bar (Ms), 35 sq. mm cross section
-
Gray protective cover included
-
Easy mounting with 4 holes 6x9 mm
€11.74
Items Available: 12
Dehn Equipotential Bar reliable connections
The Dehn Equipotential Bar is designed to centralize the equipotential connections of an electrical system, ensuring an even distribution of electrical potential. It is an essential component for lightning and surge protection, according to IEC EN 62305 standards.
Installation versatility
With multiple compatibility with rigid, flexible and flat conductors, the bar allows flexible installation in civil, industrial and tertiary environments. The plastic cover protects connections from accidental shock and external contamination.
Typical applications
-
Distribution boards
-
Grounding installations
-
Lightning rod installations
-
MV/LV substations
-
Local equipotential systems
Technical Characteristics Equipotential Bar Dehn
| Parameter | Value |
|---|---|
| Number of conductor connections | 7 x 2.5-25 mm² (rigid/semi-rigid) |
| Flexible conductor connection | 7 x 2.5-16 mm² |
| Round connection (Rd) | 1 x Ø 7-10 mm |
| Flat conductor connection (Pt / Td) | 1 x 30 x 3.5 mm or Ø 8-10 mm |
| Conductive bar material | Brass (Ms) |
| Bar section | 35 mm² |
| Fastener type | 4 holes 6 x 9 mm |
| Protective cover | Included, gray color |
