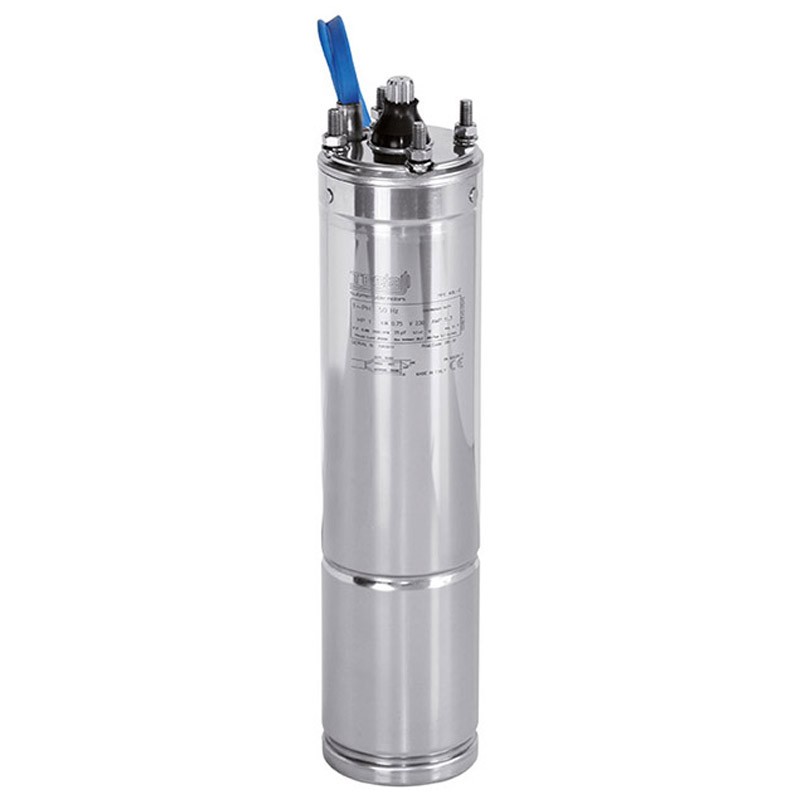

Submersible motor DAB 4OL 0.75 kW 4" single-Phase 230V 60168917

DAB 4OL submersible motor 0.75kW 4" Single phase 230V 60168917

Dab
DAB 60168917

Submersible motor DAB 4OL 0.75kW 4" Single-phase 230V two-pole asynchronous type, rewindable, constructed of AISI 304 stainless steel for parts in contact with water.



  • Rated power 0.75kW
  • Rated voltage 230W
  • Rated current In 6.3
  • Starting current/Nominal current 3.2
  • Starting torque/Nominal torque 0.64
  • Power consumption 1275W
  • RPM - R.p.m 2820
  • Cos ϕ: Power factor 0.88
  • Cable cross-section 4x1.5 mm2
  • Cable length 1.7 meters.



To be added Submersible electric pump DAB 4" S4 (see in accessories).

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
Submersible motor DAB 4OL 0.75 kW 4" single-Phase 230V 60168917
DAB 4OL submersible motor 0.75kW 4" Single phase 230V 60168917
€179.65
€174.27
€174.27

Lowest price in 30 days:
€179.65
Save 3%
€174.27
Tax included
Calculate shipping cost

Offer expires in
€174.27

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days

Cooling and lubrication of the ball bearings is provided by a special FDA-approved liquid. The stator is housed in an AISI 304L stainless steel jacket attached by steel pins to the upper motor support. The cable connector is removable to ensure fast and easy maintenance operations.
The cable is ACS, WRAS and KTW certified. The motor is suitable for use with variable speed drive (30 Hz-50/60 Hz). For the single-phase version, the capacitor and the manual reset current protection are placed in the switchboard that can be supplied separately; the 4OLTW version with capacitor included inside the motor is also available. For the three-phase version, protection must be provided by the user.





Features:

  • Flanging: NEMA 4
  • Insulation class: F
  • Degree of protection: IP68
  • Cooling flow speed: min. 0.3 m/s 35° C
  • Power supply tolerance: + 6% / -10%
  • Maximum number of starts: 20/h
  • Max operating depth: 250 m
  • Power 0.75kW/1hp
  • Power supply 50Hz 230V
  • In 6.3A
  • Starting current/rated current 3.2
  • Starting torque/Nominal torque 0.64
  • Power consumption 1275W
  • RPM - R.p.m 2820

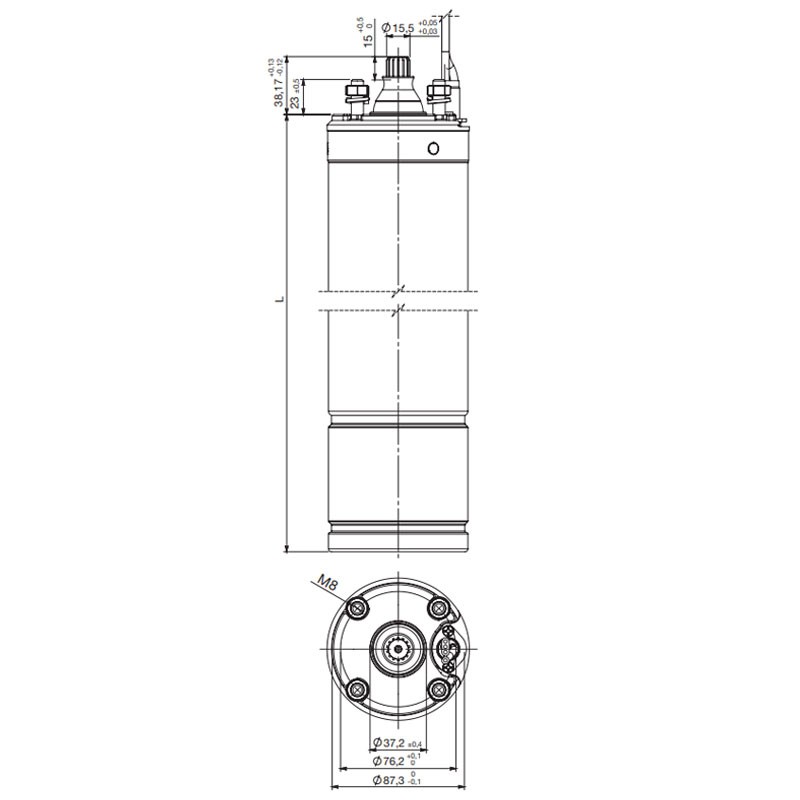

  • Length 304mm
  • efficiency 59%
  • Cable cross section 4x1.5mmq
  • Cable length 1.7 meters
  • Weight 7.4 kg
  • Axial thrust 2000 N

Data sheet

Type:
Submersible motors
Model:
Single-phase
