Cooling and lubrication of the ball bearings is provided by a special FDA-approved liquid. The stator is housed in an AISI 304L stainless steel jacket attached by steel pins to the upper motor support. The cable connector is removable to ensure fast and easy maintenance operations.
The cable is ACS, WRAS and KTW certified. The motor is suitable for use with variable speed drive (30 Hz-50/60 Hz). For the single-phase version, the capacitor and the manual reset current protection are placed in the switchboard that can be supplied separately; the 4OLTW version with capacitor included inside the motor is also available. For the three-phase version, protection must be provided by the user.



Features:

• Flanging: NEMA 4
• Insulation class: F
• Degree of protection: IP68
• Cooling flow speed: min. 0.3 m/s 35° C
• Power supply tolerance: + 6% / -10%
• Maximum number of starts: 20/h
• Max operating depth: 250 m
• Power 3.0kW/4hp
• Power supply 50Hz 400V
• In 7.9A
• Starting current/rated current 5.7
• Starting torque/Nominal torque 3.3
• Power consumption 4000W
• RPM - R.p.m 2830

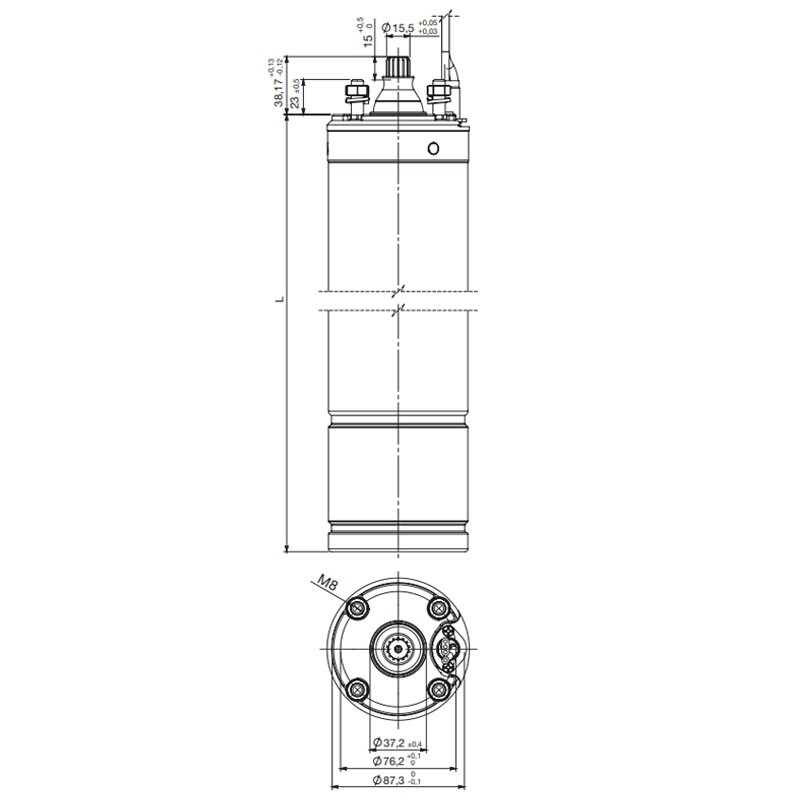

• Length 458mm
• efficiency 75%
• Cable section 4x1.5mmq
• Cable length 2.7 meters
• Weight 13.4kg
• Axial thrust 3000/4000 N
