Fischer Metal pipe clip CPS-V M8 3/4 steel 2pcs 00520994
FIS 00520994
8001132030356
Fischer CPS-V Metal Pipe Clip is a reliable solution for supporting metal pipes, with patented quick closure and reinforced four-point weld nut. Made of cold galvanized steel, it provides strength and durability with the following features:
-
Thread: M8, compatible with Fischer profiles
-
Reinforced strip: 3/4 inch - Width 23 mm - Thickness 2 mm
-
Closure: Patented quick release for easy and secure installation
-
Material: Cold galvanized steel (5 - 7 µm) for corrosion resistance
-
Nut: Four welding points, even in smaller sizes
-
2-piece set, complete with screw and dowel
€0.95
Items Available: 978
: 35
Fischer CPS-V Resistant and Reinforced Clip for Metal Pipes
Strength and reliability for metal pipe support

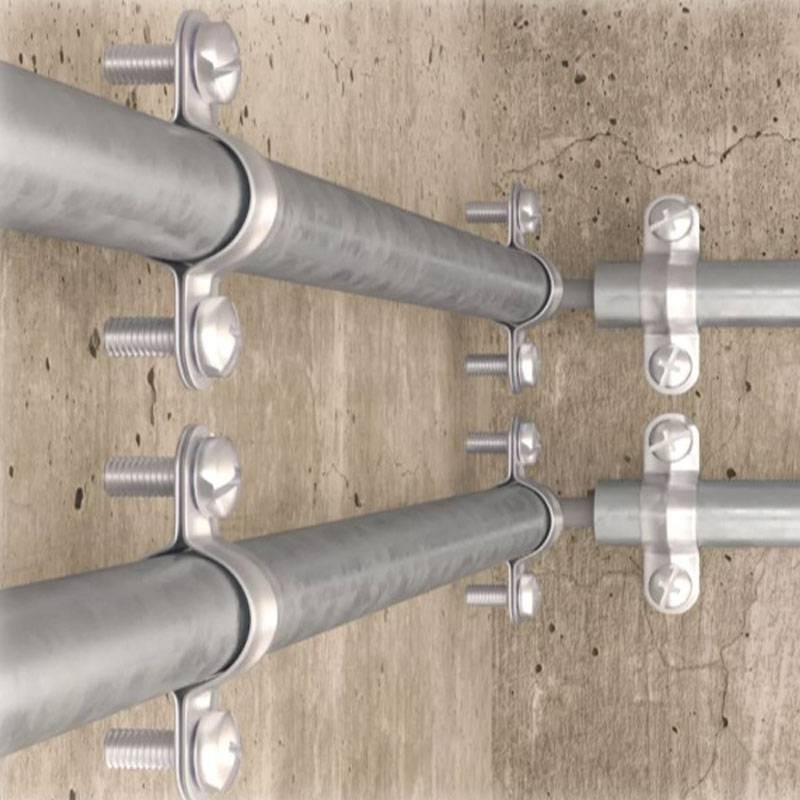

The Fischer CPS-V clip is designed to provide stable and secure fastening of metal pipes in a variety of installation contexts. The cold-galvanized steel construction ensures high corrosion resistance, making it suitable for plumbing, electrical and ventilation installations.
Reinforced structure for a secure hold
The Fischer CPS-V clip has a four-point weld nut, a feature that increases its strength even in smaller sizes. The oversized band (23 mm wide and 2 mm thick) provides a firm grip on the pipe, preventing unwanted vibration and movement.
Quick and easy installation

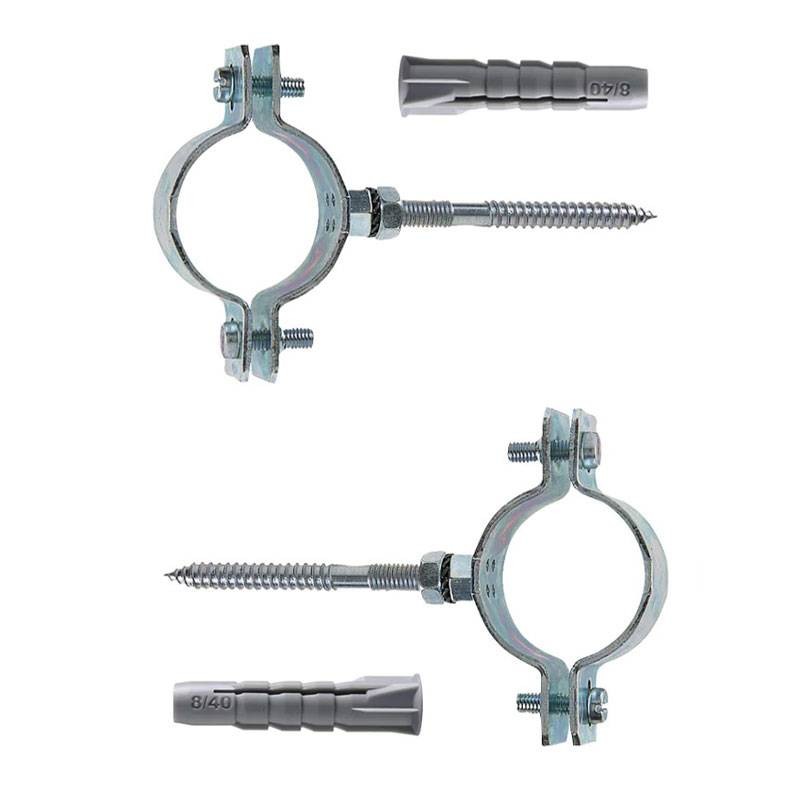

Installation of the clip is quick thanks to the patented lock and screw and dowel mounting system, just:
-
Drill the surface and insert the PA6 dowel
-
Expand the dowel with the double-threaded screw
-
Attach the clip and screw it firmly in place
Technical Specifications Fischer Clip
| Feature | Value |
|---|---|
| Material | Cold galvanized steel (5 to 7 µm) |
| Diameter | 3/4 inch |
| Thread | M8 |
| Band width | 23 mm |
| Band thickness | 2 mm |
| Closure | Patented quick release |
| Nut | 4 welding points |
| Gusset | PA6, gray color |
| Application | Supporting metal pipes |
| Packaging | 2 pieces with screw and dowel included |
There are no reviews
Data sheet
- Type: Fixing kit
- Connections: 3/4 inches
