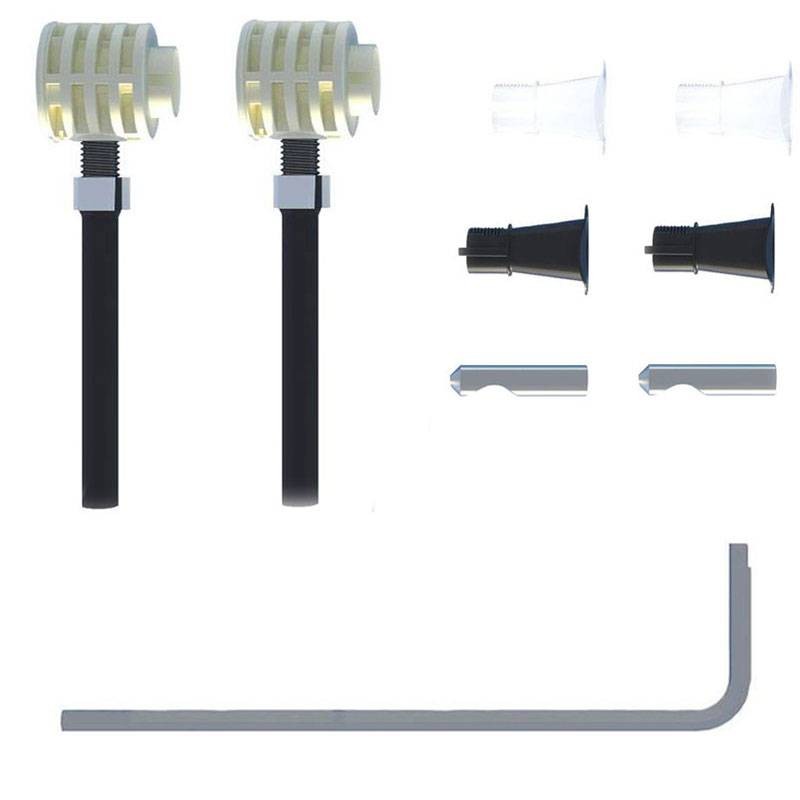

The suspended toilet and bidet fixing kit with concealed bars is the perfect choice for those who want to install their sanitary ware professionally. This kit is compatible with all types of walls and is designed to fix wall-hung toilets and bidets using 2 M12 bars properly preinstalled on the wall.



One of the advantages of this kit is that the fixing is hidden inside the ceramic, so there is no contact between the ceramic and metal parts. In addition, the kit is tested for 400 kg according to UNI EN 997 and UNI EN14528, so you can be assured that it will last a long time. Therefore, it can be installed on concrete, brick, concrete block or natural stone surfaces as long as it has a compact structure.



Advantages:

• Complete system for quick installation of ceramics
• Hidden fixing inside the ceramic
• No contact between ceramics and metal parts
• Fixing tested to 400kg according to UNI EN 997 and UNI EN 14528 standards
• Perfect for both bidets and toilets
• Fits installations on walls with concrete or brick structure or concrete blocks or compact natural stone



Applications:

• Fixing wall-hung WCs and bidets
• WB 9 B LV for installation of ceramics with side or top access
• WB 9 B TU for installation of ceramics with access from below
• Suitable for ceramic thicknesses from 34 to 47 mm



Installation:

• Prepare 2 M12 wall bars properly installed
• Measure the thickness of the ceramic from the point where the WB9 B rests on the ceramic to the outermost point of the sanitary ware that will rest on the wall and choose suitable funnels: white for thickness between 34 and 41 mm, black for thickness between 42 and 47 mm
• Screw the 2 metal guide canisters onto the M12 bars, up to the expected distance from the wall
• Orient the slots of the metal guide sleeves appropriately, in accordance with side access installation, from above or below
• Insert the WB9 B devices into the slots on the ceramic and engage the funnels. Orient the phase marker in accordance with side-access installation, from above or below
• Push the ceramic to the wall by inserting the 2 metal canisters into the funnels
• Tighten the screws of the WB9 Bs. The screws must engage the slot of the metal canisters.
