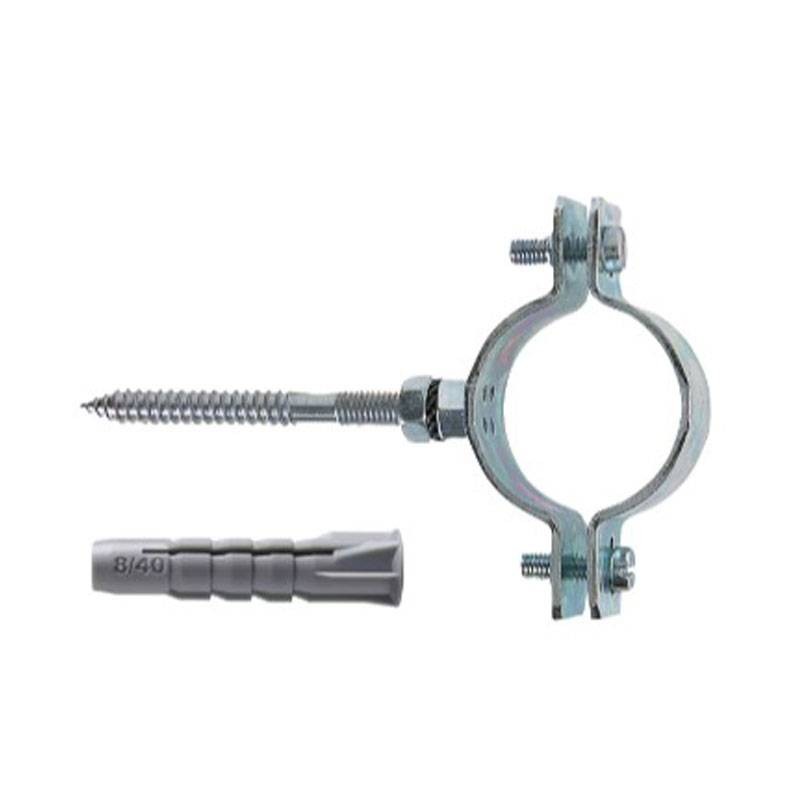

Fischer CPS-V 3 M10 x 100 steel pipe collar 00567669
FIS 00567669
8001132114421
Fischer CPS-V 3 pipe collar complete with double-threaded screw and SX Plus 12 dowel. Ideal for plumbing and thermal systems in civil and industrial areas. Robust and reliable solution for wall fixing of metal pipes, with the following features:
-
Complete with screw: M10 x 100 and dowel SX Plus 12
-
Suitable for pipes: 84/89 mm (3 inches) diameter
-
Oversized fixing band: 30 x 2.5 mm (30 x 2.5 mm)
-
Jam nut: Included for adjustment and locking
-
Welded nut: On 4 points even in smaller sizes
-
Mounting: Quick on concrete and brick
-
Required hole depth: 80 mm
-
Dowel length: 60 mm
€1.95
Items Available: 567
: 182
Fischer CPS-V 3 collar with screw and plug for robust installations
Fischer's CPS-V 3" collar is designed to provide secure and durable support to metal piping, especially in plumbing, thermal and sanitary installations. With its reinforced construction and patented quick-lock system, it enables efficient fastening even in industrial environments.
Complete kit: double screw and SX Plus dowel
The product includes everything needed for installation:
-
M10 x 100 double thread screw for stable anchoring
-
Fischer SX Plus 12 anchor, with 3 expansion sectors
-
Lock nut for locking the collar
This ensures optimal grip in various building materials
Compatibility with various wall substrates
The kit is suitable for installation on:
-
Concrete
-
Solid brick
-
Semi-full brick (vertically drilled)
Perfect for installations in technical walls, boiler rooms and thermal power plants.
Reliability and practicality
With an oversized 30x2.5 mm locking band and a 4-point welded nut, the CPS-V provides structural stability and durability, even under heavy use.
Technical Specifications Fischer Collar
| Parameter | Value |
|---|---|
| Model | CPS-V 3 inches |
| Supported pipe diameter | 84-89 mm |
| Band size | 30 x 2.5 mm |
| Screw included | Double thread M10 x 100 |
| Dowel included | SX Plus 12 |
| Hole required | Ø 12 mm - depth 80 mm |
| Plug length | 60 mm |
| Application | Metal pipe fastening |
| Compatible substrates | Concrete, solid and hollow bricks |
| Mounting | Quick with dowel expansion |
There are no reviews
Data sheet
- Type: Fixing kit
- Connections: 3 inches
