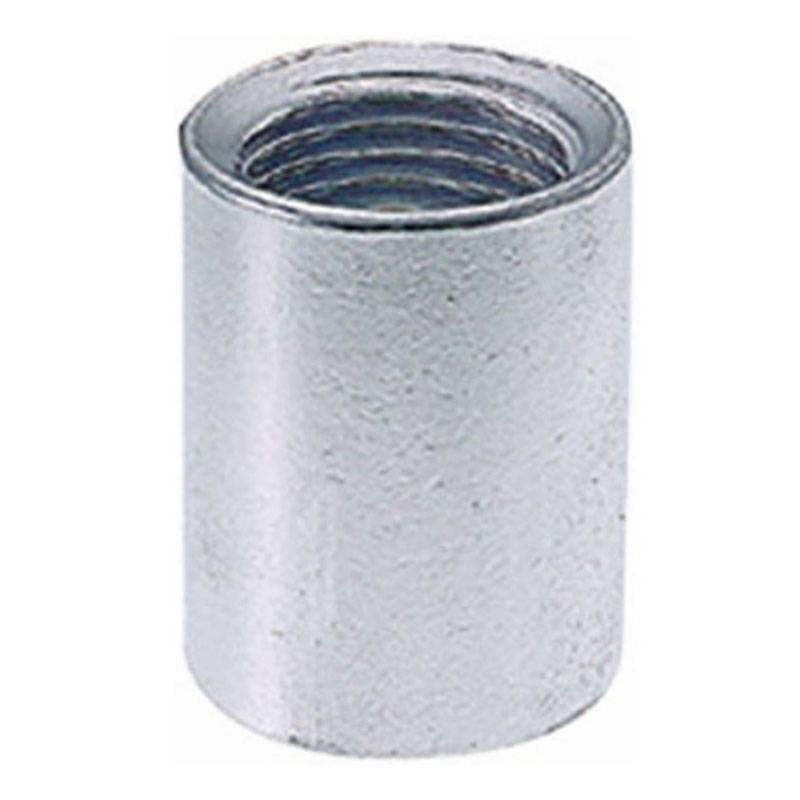

Sleeve for Oter galvanized steel pipes Female 3/8 27103
OTR 27103
Threaded sleeve for Oter pipes with the following features:
- Connection: Female
- Fittings: 3/8
- Material: Galvanized steel

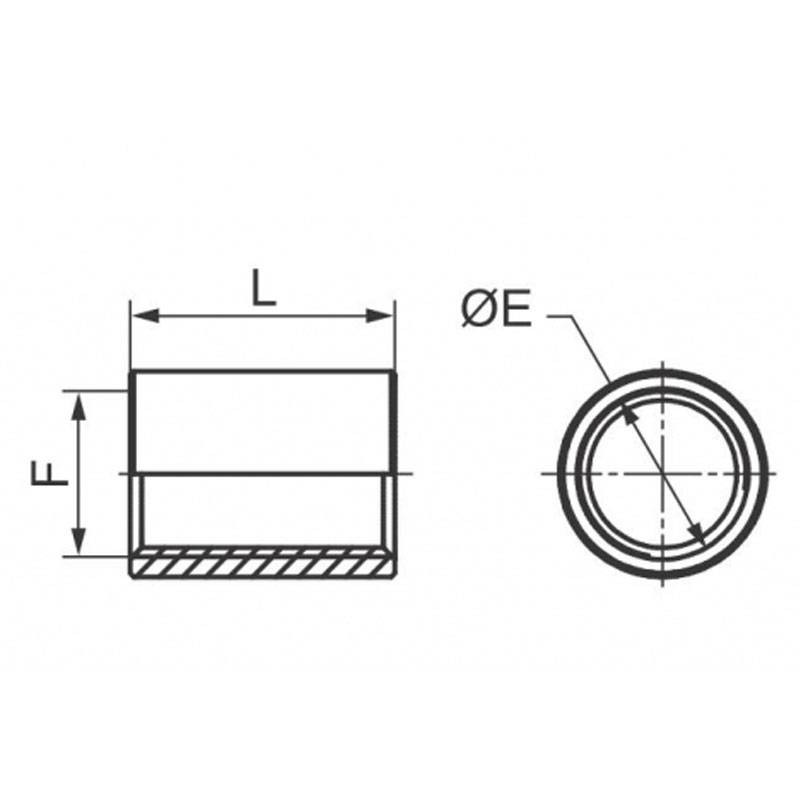

- Outer diameter: 21.9 mm
- Length: 26 mm
Threaded sleeve suitable for joining two pipes.
€0.72
Items Available: 186
: 168
Features:
- Material: steel S235JR EN 10025
- Thread UNI - ISO 228/1 CL.B
- Electrolytic galvanizing UNI ISO 2081:2018 thickness 6 ÷ 9 µm
- Compliant with ROHS2 2011/65/EU and drinking water transport according to DM 174 06-04-04
This rule defines the minimum outside diameter of the socket and does not provide tolerance. The tightness of the pipe is verified either by hydraulic test or by the current Foucault test according to SEP 1925/PRP 02.74.
There are no reviews
Data sheet
- Type: Sleeves
- Connection: F
- Model: Threaded
- Connections: 3/8 inches
- Material: Steel
