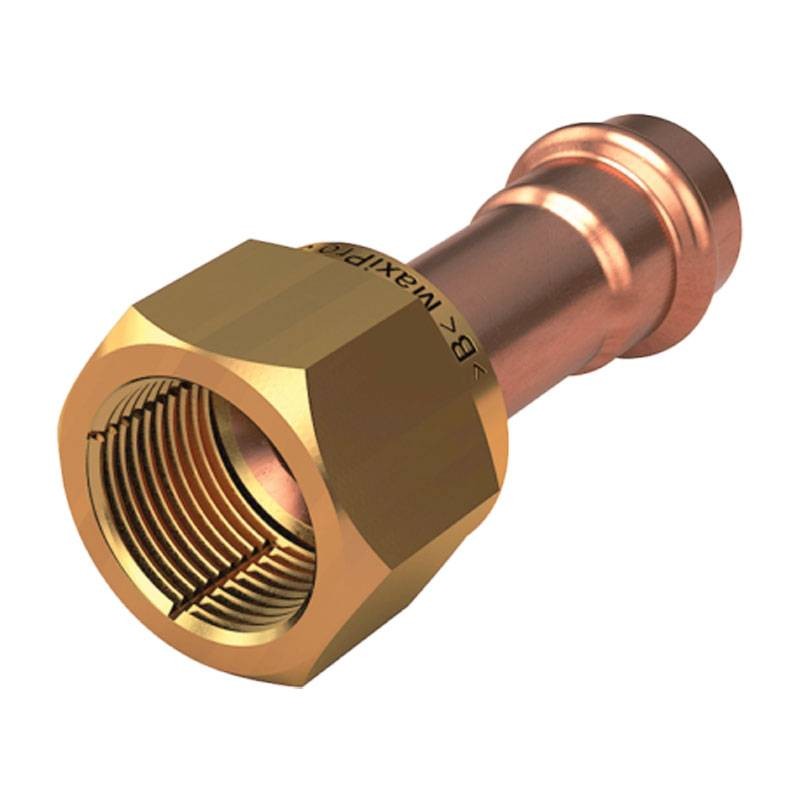

IBP Copper flare sleeve for air conditioning 3/4 MPA5285G0060601
IBP MPA5285G0060601
5054826531342
IBP Banninger B One Copper flare is a high-quality fitting designed for air conditioning and refrigeration systems. Made of durable copper, it features a brass SAE45 swivel nut, ensuring safe and efficient installation, with the following features:
-
Made of copper, a strong and durable material
-
SAE45 brass swivel nut, for reliable installation
-
Size: 3/4 inch, ideal for air conditioning systems
-
O-ring gasket made of HNBR, high tightness and durability
€41.53
Items Available: 29
: 14
IBP Copper flare: Strength for Air Conditioning and Safe Installation
Reliability and Strength for Air Conditioning Systems
The copper flare is designed to provide high strength and an optimal seal in air conditioning and refrigeration systems. Due to the copper material, it ensures a long service life and excellent thermal conductivity.
SAE45 Swivel Nut for Safe Assembly
The SAE45 brass swivel nut provides a stable and secure connection, reducing the risk of leakage and facilitating installation. This feature makes it particularly suitable for high-pressure installations.
Copper flare: Strength and Perfect Seal with HNBR O-Ring
High Resistance to Pressure and Temperature
Designed to operate in extreme conditions, the sleeve withstands temperatures from -40 to +121 degrees and supports a maximum pressure of 48 bar (700 PSI), ensuring reliable performance even in harsh environments.
HNBR O-Ring for a Perfect Seal
The sleeve features an O-ring made of HNBR, a material that is highly resistant to oils, gases and high temperatures, ensuring a perfect seal and preventing refrigerant leakage.
There are no reviews
Data sheet
- Type: Sleeves
- Model: Straight
- Connections: 3/4 inches
- Material: Copper
Threaded
