IBP Sleeve for air conditioning F/F 7/8 x 5/8 in copper

Ibp Banninger
Ibp Banninger
IBP MPA5240 0070501 5054826347745

IBP Banninger B One reduced sleeve is a press fitting designed for air conditioning and refrigeration systems, ensuring a secure and leak-proof joint. Made of high-quality copper, it withstands a maximum pressure of 700 psi and uses an HNBR seal for superior reliability:

  • Connection: Female/Female

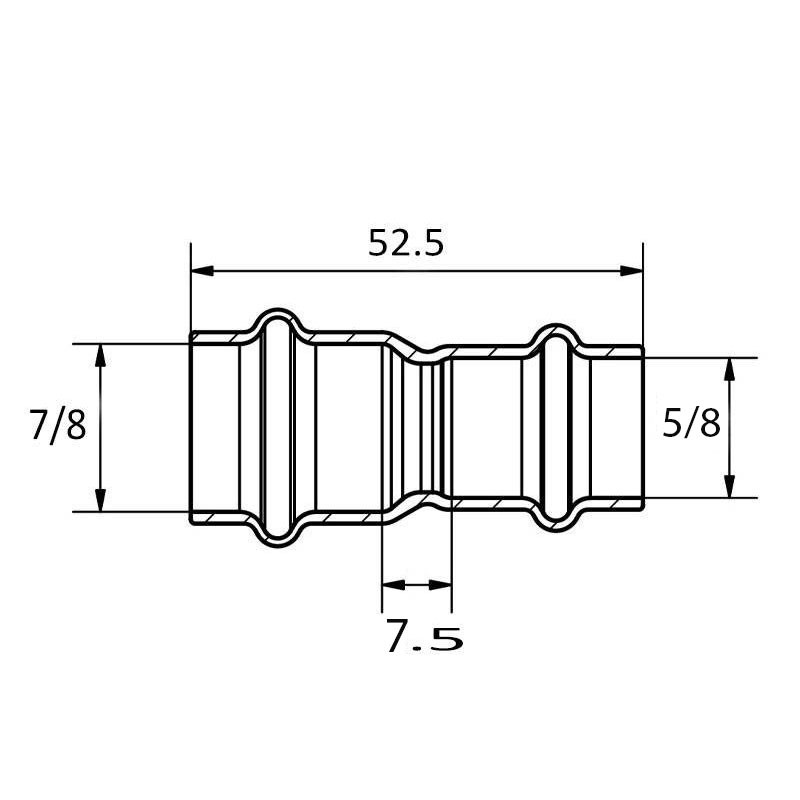

  • Dimensions: 7/8 x 5/8 inches

  • Material: Copper

  • Seal: HNBR O-ring

  • Maximum operating pressures (kPa) 4800 kPa

  • Operating temperature: -40°C to +121°C

  • Maximum operating pressures (PSI) 700 PSI

  • ACR applications

  • Maximum operating pressures (bar) 48 Bar

  • HNBR O-ring material

Do you have questions about this product or did you not find what you were looking for? Ask us!
IBP Sleeve for air conditioning F/F 7/8 x 5/8 in copper
€26.55
€26.55

€26.55
Tax included
Calculate shipping cost
Items Available: 8
Further availability of the manufacturer
€26.55

Buy it within and receive it from Tuesday, 10 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

IBP Sleeve for air conditioning F/F 7/8 x 5/8, reliable for ACR systems

The reduced FF sleeve from the >B< MaxiPro range by Conex Bänninger is specifically designed for ACR (Air Conditioning & Refrigeration) applications. Thanks to press technology, it ensures a secure, permanent, and leak-proof joint, completely eliminating the need for welding or brazing.

This solution drastically reduces installation times and increases on-site safety, making it ideal for both new installations and maintenance and retrofit interventions.

Quality materials and maximum sealing

Made of high-quality copper, the sleeve offers excellent corrosion resistance and long-lasting durability. The HNBR O-ring seal is designed to withstand high pressures and the fluids typical of air conditioning and refrigeration systems, ensuring a perfect leak-free seal.

The fitting is suitable for operating pressures up to 48 bar (700 PSI / 4800 kPa) and a wide range of temperatures, maintaining reliable performance even in harsh operating conditions.

Quick and safe flameless installation

The flameless technology of the MaxiPro range makes installation faster and safer, particularly suitable in environments where the use of open flames is prohibited or risky. The press fitting ensures an immediate and repeatable connection, with consistent and professional results.

There are no reviews

Data sheet

Type:
Sleeves
Connection:
F/F
Model:
Straight
Connections:
5/8 inches
7/8 inches
Material:
Copper
