Notifier IP/4G fire alarm system dialer DAL-COM-21
NOT DAL-COM-21
Notifier IP/4G fire alarm system telephone dialer EN 54.21, in plastic case and antenna. Allows supervised connection and transmission of alarms, faults and technical reports to Control Centers.
€798.49
€798.49
Tax included
Tax included
Items Available: 4
: 1
The DAL-COM-21 Communicator enables supervised connection and transmission of alarms, faults, and technical reports to Control Centers with state-of-the-art technology and many additional safety options. The plastic housing and 10-30VDC power supply make installation flexible and easy. DAL-COM-21 has a dual communication connection: the primary one via TCP/IP and the second one in backup and optional, via GPRS/3G/4G, for 100% secure connection. Alarms then, can be sent via the GPRS/3G/4G connection, in conditions of poor IP network signal quality. Alarm notifications via TCP/IP from DALCOM-21 can be received by receiving stationsD-328.1.DC21-ITA A.3 03/2022 equipped with a receiver with SIA DC09 standard.
Strengths:
- Dual communication connections: primary via TCP/IP and backup via GPRS/3G-4G. DAL-COM-21 can be used either as an external Communicator or as an IP converter in already installed fire alarm systems
- Alarm notifications via TCP/IP from DAL-COM-21 can be received by receiving stations equipped with a standard SIA DC09 receiver
- DAL-COM-21 includes a serial connection with MODBUS protocol compatible with AM series control panels
- It also has eight inputs for direct connection of relay outputs, such as from conventional fire alarm systems, and four outputs that can be operated remotely
- In addition, up to four IP cameras can be connected directly
- In "dialer capture" function, DAL-COM-21 can simulate an analog telephone line and receive alarms from existing compatible SIA-compliant dialers or Contact ID and convert and send encrypted alarm messages via TCP/IP protocol to the alarm receiving center(s)
- DAL-COM-21 is also capable of sending SMS and/or e-mail to up to 10 different accounts and can be programmed to send notifications to up to 10 different Receiving Centers
- Each of the alarm inputs, as well as for internal transmitter error checks, e.g., GPRS/3G-4G, Ethernet errors, etc., can be independently programmed in conjunction with the specific receiver, thus allowing installers to be able to provide separate services for Fire Alarms, Plant Fault Reports, Technical Alarms
- Additional security services available upon request, such as EagleEye APP with images from connected cameras, remote management and alarms directly to cell phones, tablets and PCs

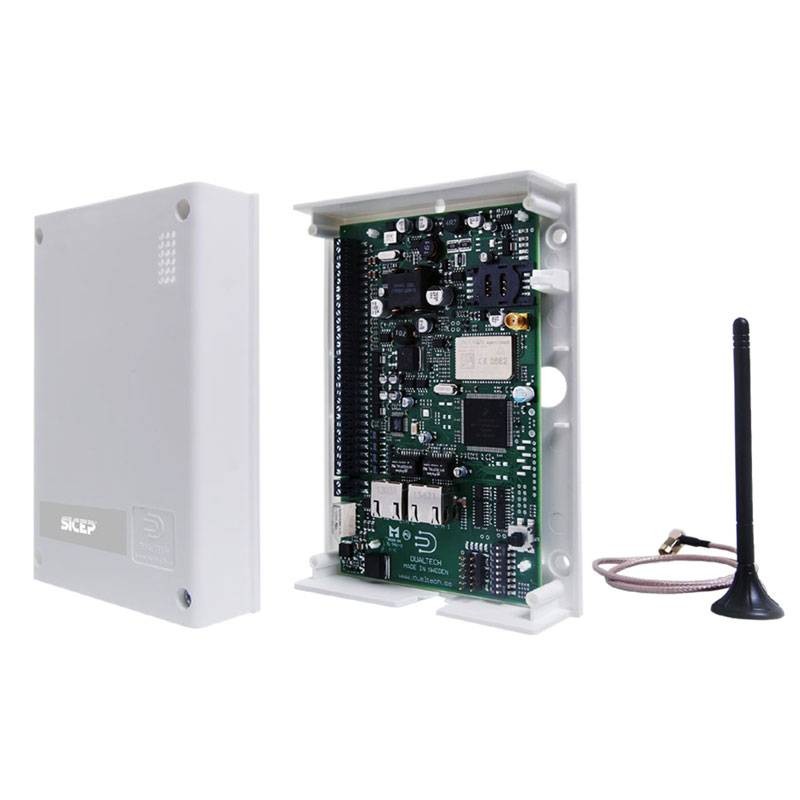

- Supplied complete with plastic housing and antenna with 0.5 m antenna cable
- The unit can be powered by the existing alarm system given the wide voltage range accepted: 10-30VDC
- Operating temperature range -10 C° + 55 C°
- Dimensions 170 x 120 x 45
- Grade 4/ATS 6 and CPR certification EN 54.21:2006 - E-No: 6,390,263 CPR: 2531-CPR-232.1747
Use with existing telephone dialer:
- DAL-COM-21can be used both as a Communicator and as an IP Converter in already installed alarm systems. In fact, DAL-COM-21 is equipped with dialer capture capabilities, which means it can simulate an analog telephone line and receive alarms from existing telephone dialers compatible with the Contact ID format and convert and send encrypted alarm messages via TCP/IP protocol to the alarm receiving center.
Alarm message transmission takes place in the event of:
- Activation of one of the digital inputs
- Activation by one of the internal error controls (e.g., GPRS/3G/4G)
- Activation by reception from the telephone dialer, if any, in Contact ID format or SIA from the analog PSTN input
- Notification from the Fire detection control panel connected to the serial port of DAL-COM-21 with ESPA 4.4.4 protocol
Features:
- PSTN input for conversion of SIA (level 1-3), SIA Hex, Contact ID from existing dialers
- 8 inputs of which 4 are double balanced
- 4 remotely controllable outputs
- Built-in IP alarm protocol of SOS ACCESS V4
- Sending alarms via SMS and e-mail
- TCP/IP alarm transmission via the Internet and/or 3G/4G to the alarm receiving center
- Encrypted transmission of information
- Continuous link monitoring function with polling between the router and the alarm receiving center
- Up to 4 IP cameras connectable via separate Ethernet port
- Remote management options via APP (Apple-Android-Windows
- Plastic case and antenna version (3G/4G) with 10 to 30VDC power supply
There are no reviews
Data sheet
- Type: Dialers
