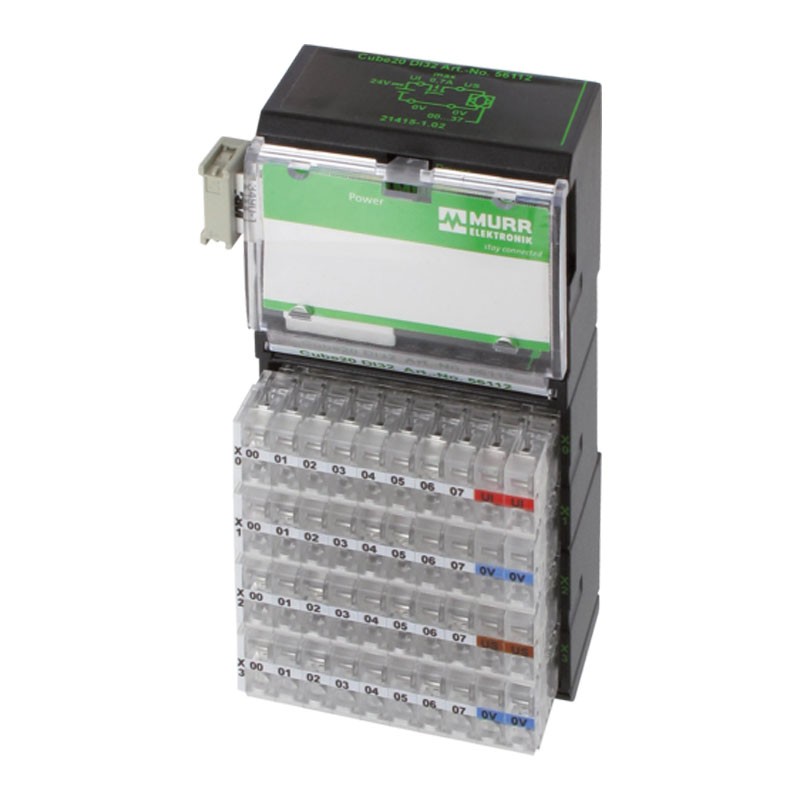

Murr Cube20 Digital Output Module 32 outputs DO32 IP20 56118
MUE 56118
4048879049290
Murr Cube20 digital output module with the following characteristics:
- Lamp load: 10 watts
- Galvanic separation: 500V DC between outputs and internal communication
- UA actuator power supply: 24V DC (EN 61131-2), max. 12 Amps
- Current per output: max. 0.5 Ampere (protected against short circuit and overload)
- Current consumption: max. 25 mA
- Module power supply via system connection
€254.21
Items Available: 10
: 9
Features:
- Mounting type: pluggable onto DIN rail (EN 60715).
- Temperature range: 0/+55 degrees (storage temp -20/+85 degrees)
- Degree of protection: IP20
- Field bus: flat cable connection
- Sensor-system/actuator power supply: 8× plug-in spring terminals, max. 2.5 mm² (max. 12 A)
- I/O inputs: 32× plug-in spring terminals, max. 2.5 mm²
- Communication status via LEDs
- Diagnostics via LEDs per module and channel
- Diagnostics via BUS per module and channel
- Monitoring - undervoltage
- Short circuit and overload

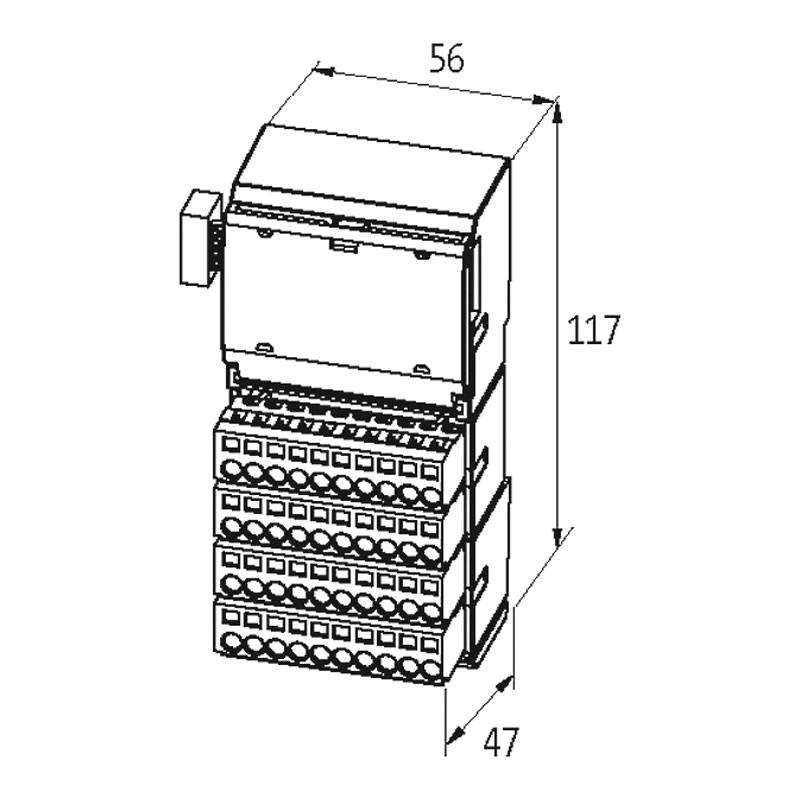

- Dimensions: 117×56×47 mm (H×W×D)
There are no reviews
Data sheet
- Type: Digital modules
- Voltage: 24V
- Degree of protection: IP20
