Murr Cube20 digital input module 32 inputs DI32 IP20 56112
MUE 56112
4048879049344
Murr Cube20 digital input module with the following features:
- US sensor power supply: 24V DC (EN 61131-2), max 700 mA per module
- Type: PNP (EN 61131-2)
- Galvanic separation: 500V DC between inputs and internal communication
- Input filter: 1 ms
- Current consumption: max 25 mA
- Module power supply via system connection
€181.73
Items Available: 2
: 1
Features:
- Mounting type: pluggable onto DIN rail (EN 60715).
- Temperature range 0 /+55 degrees (storage temp -20 /+85 degrees)
- Degree of protection: IP20
- Field bus: flat cable connection
- Sensor-system/actuator power supply: 8× plug-in spring terminals, max. 2.5 mm² (max. 12 A)
- I/O inputs: 32× plug-in spring terminals, max. 2.5 mm²
- Diagnostics via LEDs per module
- Diagnostics via BUS per module and channel
- Monitoring - undervoltage
- Short circuit and overload

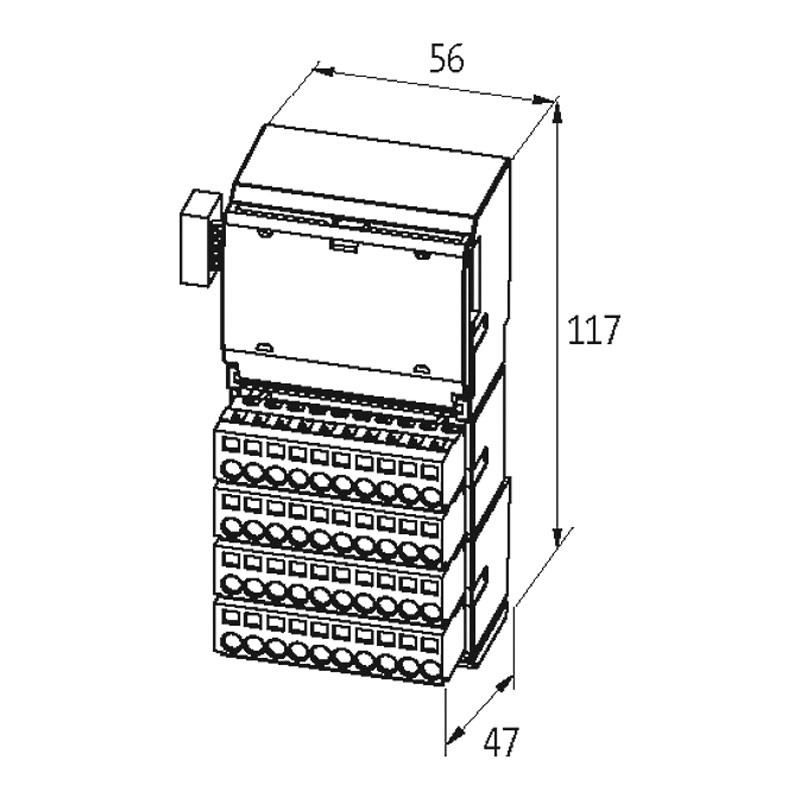

- Dimensions: 117×56×47 mm (H×W×D)
There are no reviews
Data sheet
- Type: Digital modules
- Voltage: 24V
- Degree of protection: IP20
