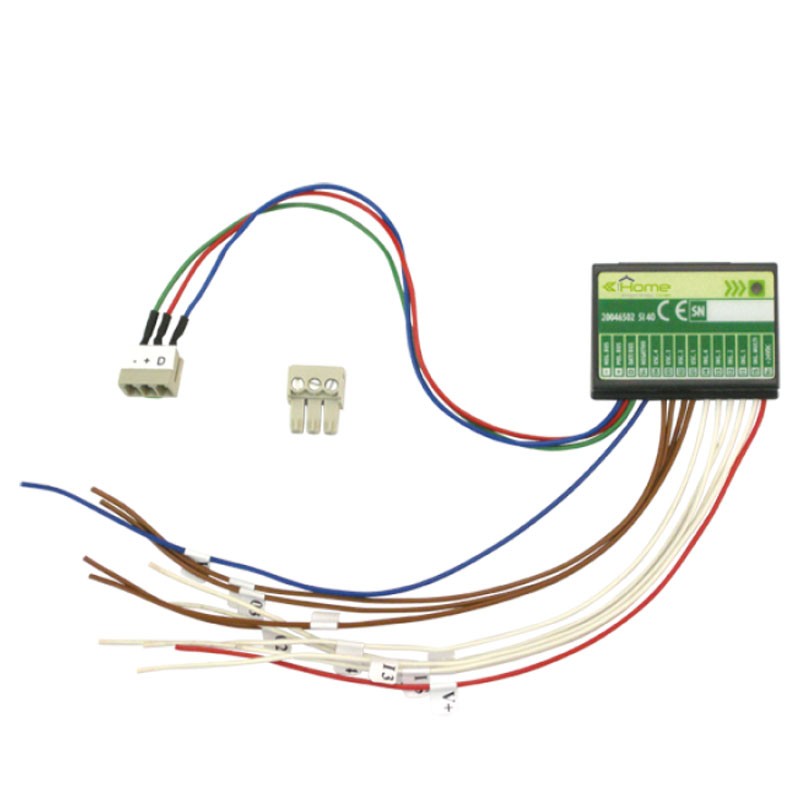

Comelit Simplehome 5-input digital flush-mounted module 20046501
COE 20046501
Comelit Simplehome module, with the following features:
- Equipped with 5 digital inputs (4 normal + 1 scenario) that can be used to connect up to 5 buttons in flush-mounted or wall-mounted boxes
- Dimensions 41x29x9mm, to be connected to the SimpleHome BUS
- Current consumption 20mA
- Operating temperature: -10/+50°C
- Type of connections/ports: 1bus, 6
- Max distance from digital input: (m)25
![](https://www.elettronew.com/49304-large_default/module-comelit-simplehome-5-digital-inputs-flush-mounting-20046501.jpg)
Comelit Simplehome 5-input digital flush-mounted module 20046501
€40.23
€40.23
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 13
Strengths:
- Software-configurable digital inputs nc/no Yes
- BUS address programming via dip-switch Yes
- Light management Yes
- Scenario management Yes
- Removable terminals Yes
Data sheet
- Type:
- Digital modules
