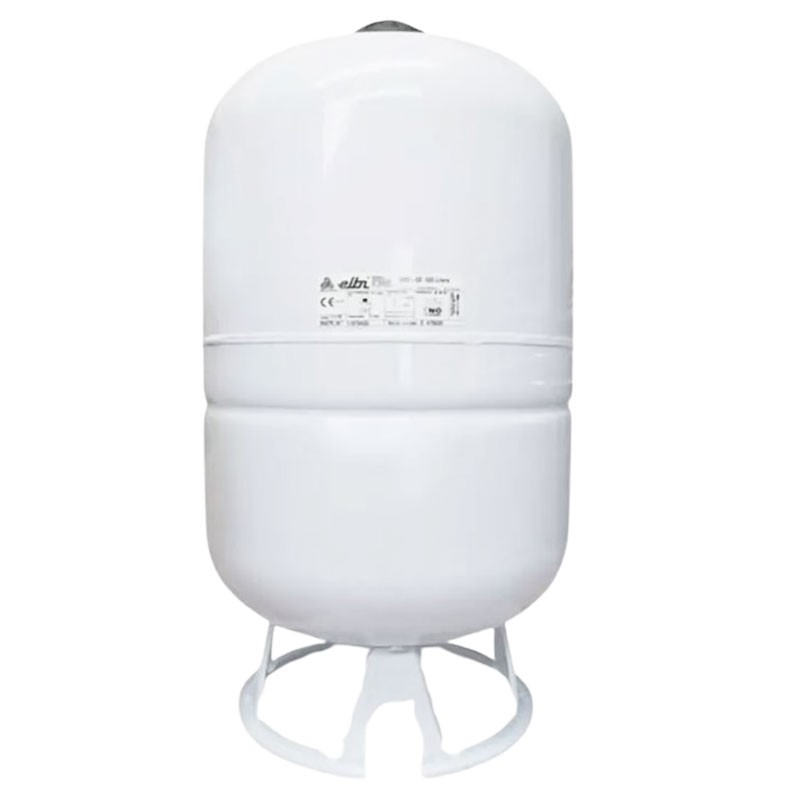

Elbi DPV-50 CE Multifunctional tank for heating/water 50 liters A2C2L34 V0020
ELB A2C2L34 V0020
8019742108051
Elbi DPV-50 CE heating and domestic water tank, with fixed butyl membrane and protective sheath, ideal for versatile systems, with the following features:
-
Capacity: 50 liters
-
Maximum pressure: 10 bar
-
Diaphragm: Fixed and protective sheath made of food-grade butyl rubber
-
Fitting: Stainless steel and self-locking octagonal nut
-
Coating: Time-resistant epoxy
-
Dual use: Expansion vessel and autoclave tank
-
Color: White
-
Complete water/air and water/metal parts separation
€108.23
Items Available: 10
: 2
Elvi tank versatility of use for heating and domestic water systems
The Elbi DPV-50 CE tank is designed to offer high flexibility of use: it can be installed both as an expansion tank in heating systems and as an autoclave tank for sanitary water systems. Its 50-liter capacity makes it suitable for medium-sized domestic and professional systems.
Butyl membrane and sheath for maximum protection
Equipped with a fixed membrane and a protective sheath both made of food-grade butyl rubber, the DPV-50 CE ensures complete separation between the water and the metal walls of the tank, preventing corrosion phenomena and ensuring the healthiness of the water. The double protection system ensures a long operating life.
Durable structure and quality materials
The tank is equipped with a carbon steel seaming ring and a self-locking octagonal nut, designed to facilitate installation and mechanical sealing. The stainless steel fitting ensures hygiene and corrosion resistance, while the epoxy powder coating protects the outer surface over time.
High performance and long service life
Precharge pressure of 2.5 bar and maximum operating pressure of 10 bar make the tank efficient even under heavy use. The food-grade membrane, due to its elasticity, fully expands inside the tank, ensuring high performance and longer life cycles.
Technical Specifications Elbi multifunctional tank
General Data
| Capacity | 50 liters |
|---|---|
| Precharge pressure | 2.5 bar |
| Maximum pressure | 10 bar |
| Membrane | Fixed, food-grade butyl rubber |
| Protective sheath | Food grade butyl rubber |
| Painting | Epoxy powders, green RAL 6005 |
Dimensions and Weight
| Height | 565 mm |
|---|---|
| Diameter | 400 mm |
| Weight | Variable according to version |
Hydraulic Connections
| Hydraulic connection | DN1 by 1" |
|---|---|
| Fitting | INOX |
Applications
| Use | Heating and plumbing systems |
|---|
There are no reviews
Data sheet
- Type: Multifunctional tanks
- Capacity: 50 Liters
