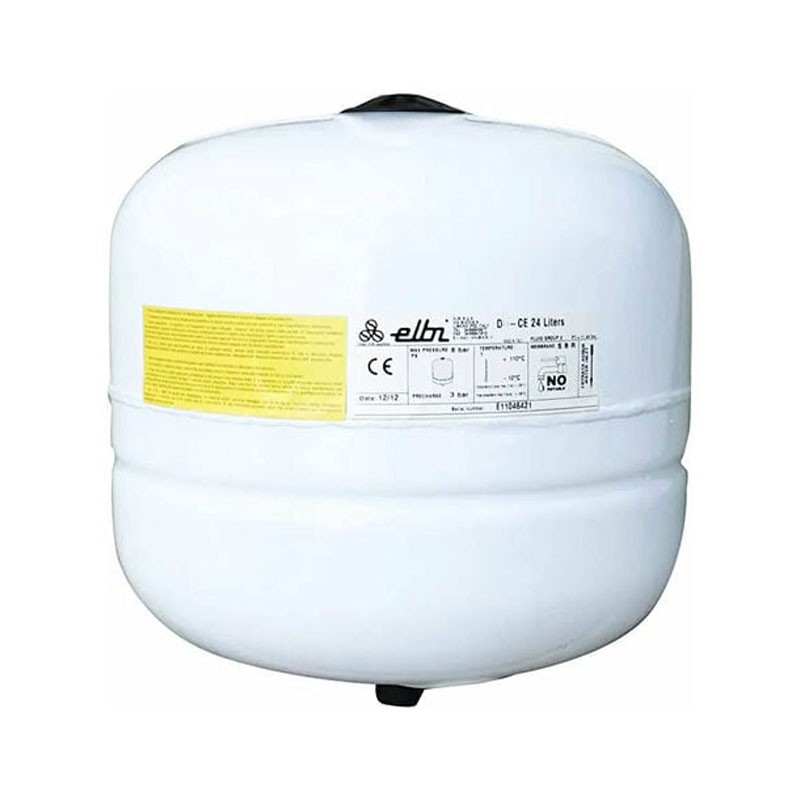

Elbi DP-24 multifunctional tank for heating/water 24 liters
ELB A2C2L27 00270
8019742132742
Elbi DP-24 versatile, safe and CE-certified multifunctional fixed membrane tank for DHW, heating and air conditioning systems.
-
Capacity: 24 liters - fixed membrane version
-
For domestic hot water, drinking water, heating and air conditioning
-
Patented protective sheath against corrosion
-
Maximum pressure: 10 bar
-
Precharge pressure: 2.5 bar
-
Connection G1"
-
Stainless steel connection for maximum hygiene
-
CE approved - Directive 2014/68/EU
-
5-year warranty
The multifunctional sanitary tank has the advantage that it can be installed both as an expansion vessel in heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as an autoclave in sanitary systems.
€49.11
Items Available: 24
: 4
Elbi DP-24 multifunctional tank: Maximum versatility of use for civil and professional systems
The multifunctional sanitary tank has the advantage of being able to be installed both as an expansion vessel in heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as an autoclave in sanitary systems.
Multifunctional fixed membrane sanitary tanks have the merit of being able to be used both as expansion vessels in hot water systems or heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as autoclaves in cold water sanitary systems.
This dual use is made possible by the protective liner with patented fastening system that ensures corrosion protection of the inner tank wall and suitability for contact with sanitary water.
In installations in sanitary systems, the vessel should be connected to the cold water inlet (not the hot water outlet).
The Elbi DP-24 24-liter multipurpose tank is designed for a wide range of applications, making it ideal as:
- expansion vessel for domestic hot water (DHW) systems
- element for heating and air conditioning systems
- autoclave in cold potable water systems
- water hammer attenuator in pressurization systems
With its fixed internal membrane and patented butyl protective sheath, it provides a double barrier against corrosion, protecting the water from contact with the metal tank walls.
Hygienic materials and durable construction
The tank is equipped with a stainless steel fitting, which ensures maximum water wholesomeness, making it suitable for use with potable water. The presence of the self-locking octagonal nut greatly simplifies installation, while the double seal system on the seam ensures high mechanical strength and hydraulic seal.
Safety and Certifications
The Elbi DP-24 model complies with the Pressure Equipment Directive 2014/68/EU and is CE approved. Also available in DP-24/16 version with a maximum pressure of 10 bar, for systems with higher requirements. The standard precharge pressure is set at 2.5 bar. A product that combines safety, construction quality and reliability over time.
| Feature | Detail |
|---|---|
| Capacity | 24 liters |
| Type | Fixed diaphragm tank with protective sleeve |
| Applications | Domestic hot water, drinking water, heating, air conditioning, pressurization |
| Maximum pressure | 10 bar (16 bar for DP-24/16) |
| Precharge pressure | 2.5 bar |
| Connection | Stainless steel fitting |
| Installation | On cold water inlet line |
| Structure | Butyl membrane + internal protective sheathing |
| Nut | Self-locking octagonal |
| Warranty | 5 years |
| Certifications | CE - Directive 2014/68/EU |

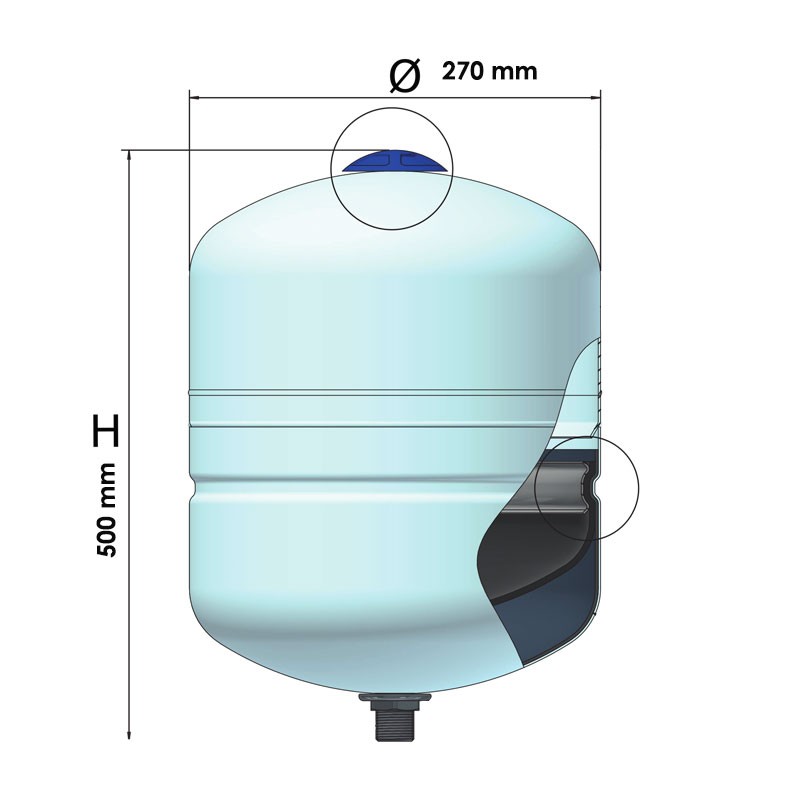

| Diameter | 270 mm |
| Height | 500 mm |
| Minimum temperature | -10°C |
| Maximum temperature | 99°C |
| Precharge pressure (PPRE) | 2.5 bar |
| Maximum pressure (PMAX) | 10 bar |
| Connection port | G1" |
Solido e di ottima fattura.
Già precaricato con i 2,5 bar che servono. Basta un po’ di canapa, pasta meccanica ed è pronto all’uso!
Data sheet
- Type: Multifunctional tanks
- Capacity: 24 Liters
