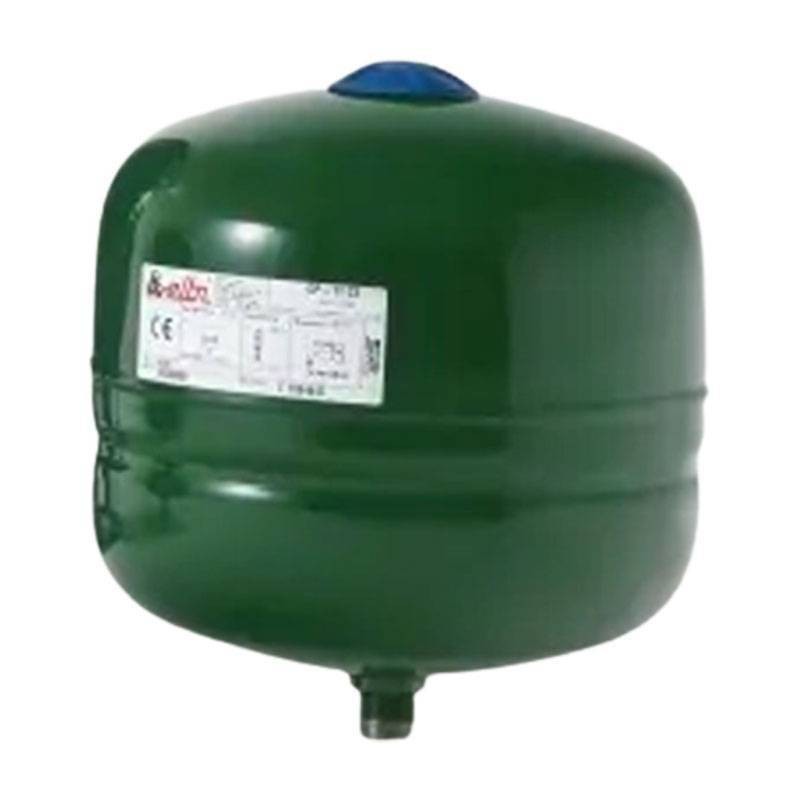

Elbi DP-8 CE multifunctional tank for heating/water 8 liters A2C2L16
ELB A2C2L16
8019742105210
Elbi DP-8 CE Multifunctional fixed membrane tank for heating/sanitary water with protective sheath with the following features:
- Capacity: 8 liters
- Precharge pressure: 2.5 bar
- Max power 10 bar
- Max temperature +99 degrees
- Diameter 205 mm
- Height 290 mm
- Connection DN1 G3/4" inch
€30.51
Items Available: 5
: 2
Overview:
Multifunctional fixed membrane sanitary tanks have the advantage of being able to be used both as expansion vessels for domestic hot water systems or heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as autoclaves in cold water sanitary systems. This dual use is made possible by the protective liner with patented fastening system that ensures corrosion protection of the inner tank wall and suitability for contact with domestic water.
Installation of a DP model sanitary expansion tank reduces system operating costs and prevents the need for drainage by the safety valve.
Features:
- Min./max. operating temperature: -10° / +99°C
- Max. operating pressure: 10 bar
- Precharge pressure: 2.5 bar
- Hydrostatic test pressure: 14.3 bar
- Food-grade fixed butyl rubber diaphragm
- Protective sheath made of food-grade butyl rubber
- Hexagon nut with galvanized steel ring nut
- Carbon steel seaming ring
- Long-lasting epoxy powder coating, RAL 6005 green color
Advantages:
- Double protection (Membrane + Protective sheath)
- Stainless steel fitting for maximum water salubriousness
- Steel hex nut for easy installation
- Double seal on scratching;
- 5-year warranty;
- Zero maintenance
Reference standard:
- Declaration of conformity with the essential safety requirements of European Directive 2014/68/EU
- CE Approved
There are no reviews
Data sheet
- Type: Multifunctional tanks
- Capacity: 8 Liters
