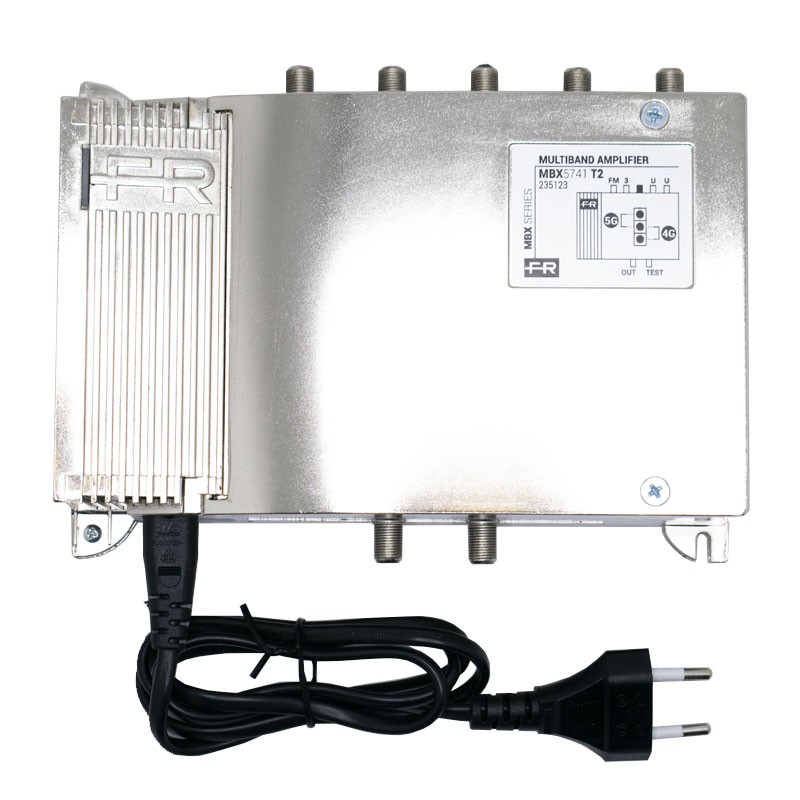

Fracarro MBX5741 T2 control unit with 4 inputs FM-III+DAB-UHF 40DB 235123
FRA 235123
8016978104864
Fracarro MBX5741 T2 with 4 inputs FM-III+DAB-UHF-UHF self-powered indoor with 43dB gain and output level up to 125dBV in the UHF band, separate band amplification, gain adjustments (0-20dB) independent for each input and low noise figure. T2 technology with innovative cutoff selection jumper for 4G LTE interference at 790MHz or 5G interference at 694MHz.
€138.24
Items Available: 66
: 45
Advantages:
- T2 jumper: innovative cutoff selection jumper for 4G LTE interference at 790MHz or 5G interference at 694MHz; built-in 4G and 5G LTE filters to maximize gain and signal level in distribution compared to using an external filter
- High gain and high output level make it ideal for use in medium to large centralized installations
- High shielding against LTE disturbances (LTE Free) thanks to the die-cast ZAMA frame with F connectors and metal cover with captive screws that covers the amplification section
- Adjustments placed inside, under the cover, to avoid tampering by third parties
- 30dB test socket available on all models
- Jumpers for the insertion of remote power supply on all inputs (100mA total), self-restoring short-circuit protection system and power supply status LEDs
- Switching power supply with high efficiency and low consumption
- Clamp for connecting the grounding of the TV system.
Features:
- IN 4
- Bands FM, III+DAB, UHF
- Gain (dB) 35, 38, 43
- Adjustment (dB) 20, 20, 20
- Noise figure (dB) 4.5, 4.5, 8.5
- Level Output (dBµV) 122, 125.
There are no reviews
Data sheet
- Type: Front panels
- Version: 4IN/1OUT
- Model: 43db
