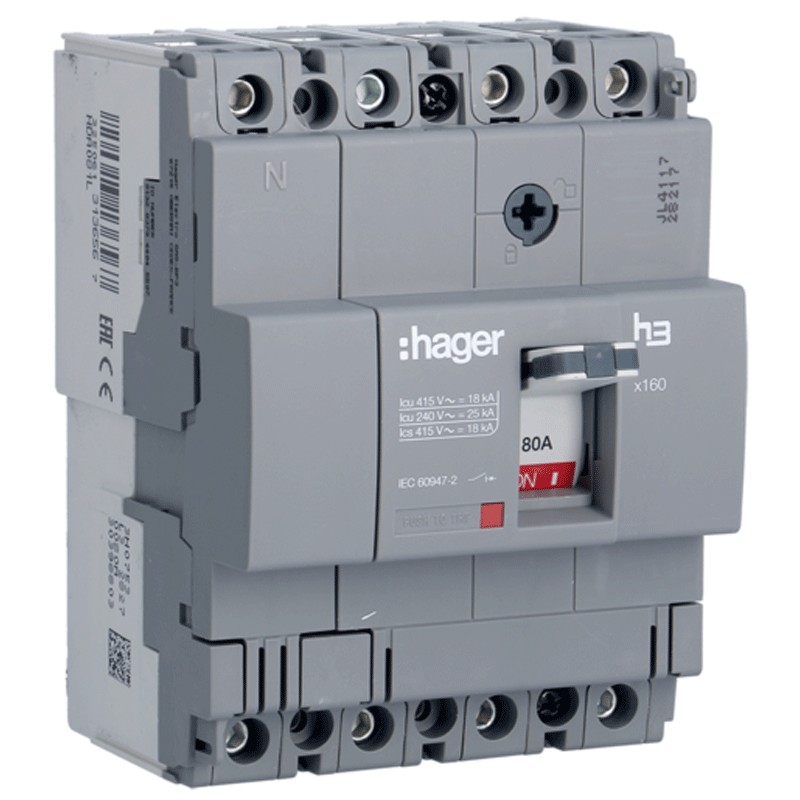

Hager X160 4P 18KA 80A HDA081L thermomagnetic circuit breaker
HAG HDA081L
3250613136567
Hager X160 thermomagnetic release switch, with the following features:
- Voltage 220/415 Vac
- Rated current 80 amperes
- Interrupting power 18kA
- 4 modules
- 4 protected poles
- DIN connection (universal for any switchboard on the market)
€201.28
Items Available: 6
: 3
Frequently bought together
Features:
- Hager Series
- Voltage 220/415 Vac
- Rated current 80A
- Interrupting power Icn 18kA
- Frequency 50/60 Hz
- 4 modules
- 4 Poles protected
- Fixing method DIN rail type O or type J
- Box type Fixed built-in
- Rated insulation voltage 690 V
- Rated fault withstand current 8000 V
- Depth 68 mm
- Height 130 mm
- Width 100 mm
- Screw connection
- IP4X enclosure degree of protection
- Total power dissipation 18.9W
- Power dissipation per pole 6,3W
- Electrical life and number of cycles 1000
- Number of operations (mechanical life) 4000
- Pollution degree 3
- Altitude 2000m
- Calibration temperature 50 °C
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Modules: 4
- Poles: 4P
- Breaking capacity: 18KA
- Amps: 80A
