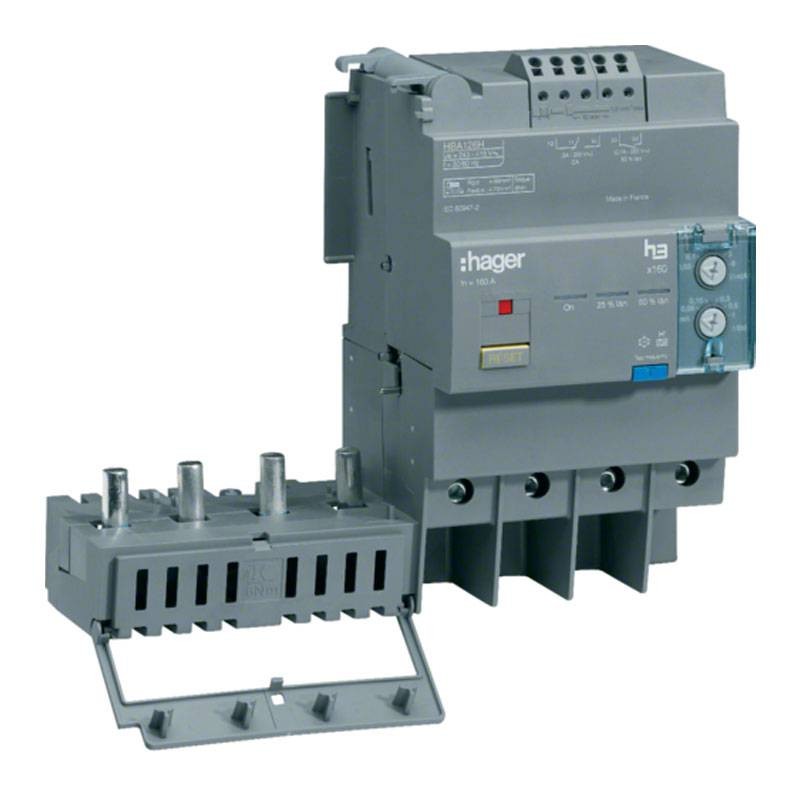

Hager Adjustable Differential Lock for X160 4P 125A 4 Modules HBA126H
HAG HBA126H
3250613121082
Hager h3 adjustable differential lock for X160 with the following features:
- Number of poles: 4P
- Rated current: 125 amps
- Rated operating voltage: 220 - 415V
- Rated insulation voltage: 500V
- Rated fault holding current: 6 kV
- Enclosure degree of protection: IP4X
- Type of differential protection: A HI
€516.50
Items Available: 3
: 2
Frequently bought together
The pure earth leakage circuit breaker is used to protect people, not systems. The moment the person goes to touch it, it creates a circuit with the ground. The current instead of staying in the household circuit, uses the human body to go to ground.
The residual current device,also called a circuit breaker, is a device in your electrical system. It is capable of opening the circuit, that is, shutting off the power supply, the moment the current accidentally dissipates.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. Instead, the circuit breaker is required for this type of problem.
Features:
- Mounting mode: DIN rail type O (symmetrical)
- Frequency (ETIM numerical value range): 50 to 60 Hz
- Flex downstream terminal capacity. Condu: 2.5 / 70 mm²
- Downstream terminal capacity rigid cond.: 2.5 / 95 mm²
- Solid cable cross-section x screw terminal connection: 2.5 / 95 mm²
- Flex. cable cross-section x terminal screw connection: 2.5 / 70 mm²
- Altitude: 2000m
There are no reviews
Data sheet
- Voltage: 220/415VAC
- Poles: 4P
- RCD Type: A
- Amps: 125A
- Circuit Protections: Earth Leakage add-on Blocks
